2021 Suzuki VL800M1 Gasket SET Diagram

← All diagrams

Find the part on the Gasket SET diagram for your 2021 Suzuki VL800M1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

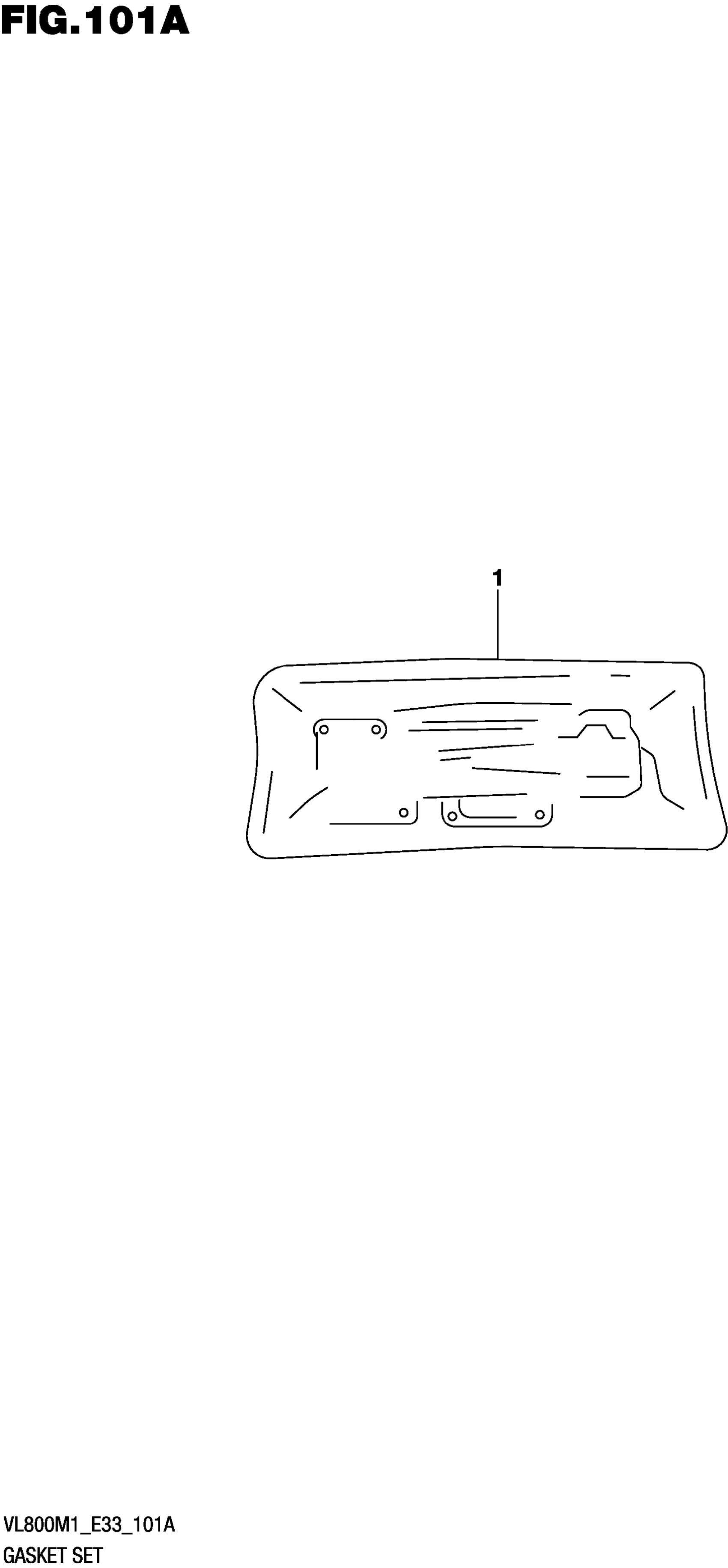

2021 Suzuki VL800M1 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11402-41830

1
Out of stock

2

.GASKET,HEAD COVER | NOT ILLUSTLATED

11123-38A00

1
Out of stock

3

.GASKET,CYLINDER HEAD FRONT | NOT ILLUSTLATED

11141-41F00

1
Out of stock

4

.GASKET,CYLINDER HEAD REAR | NOT ILLUSTLATED

11142-41F00

1
Out of stock

5

.GASKET,INSPECTION CAP | NOT ILLUSTLATED

11177-38A00

4
Out of stock

6

.GASKET,BREATHER COVER | NOT ILLUSTLATED

11187-41F20

1
Out of stock

7

.GASKET,CYLINDER | NOT ILLUSTLATED

11241-39G00

2
Out of stock

8

.GASKET,CLUTCH COVER | NOT ILLUSTLATED

11482-41F00

1
Out of stock

9

.GASKET,GENERATOR COVER | NOT ILLUSTLATED

11483-41F00

1
Out of stock

10

2

$12.87

In stock

11

.O-RING,OIL STRAINER CAP | NOT ILLUSTLATED

16528-38A00

1
Out of stock
