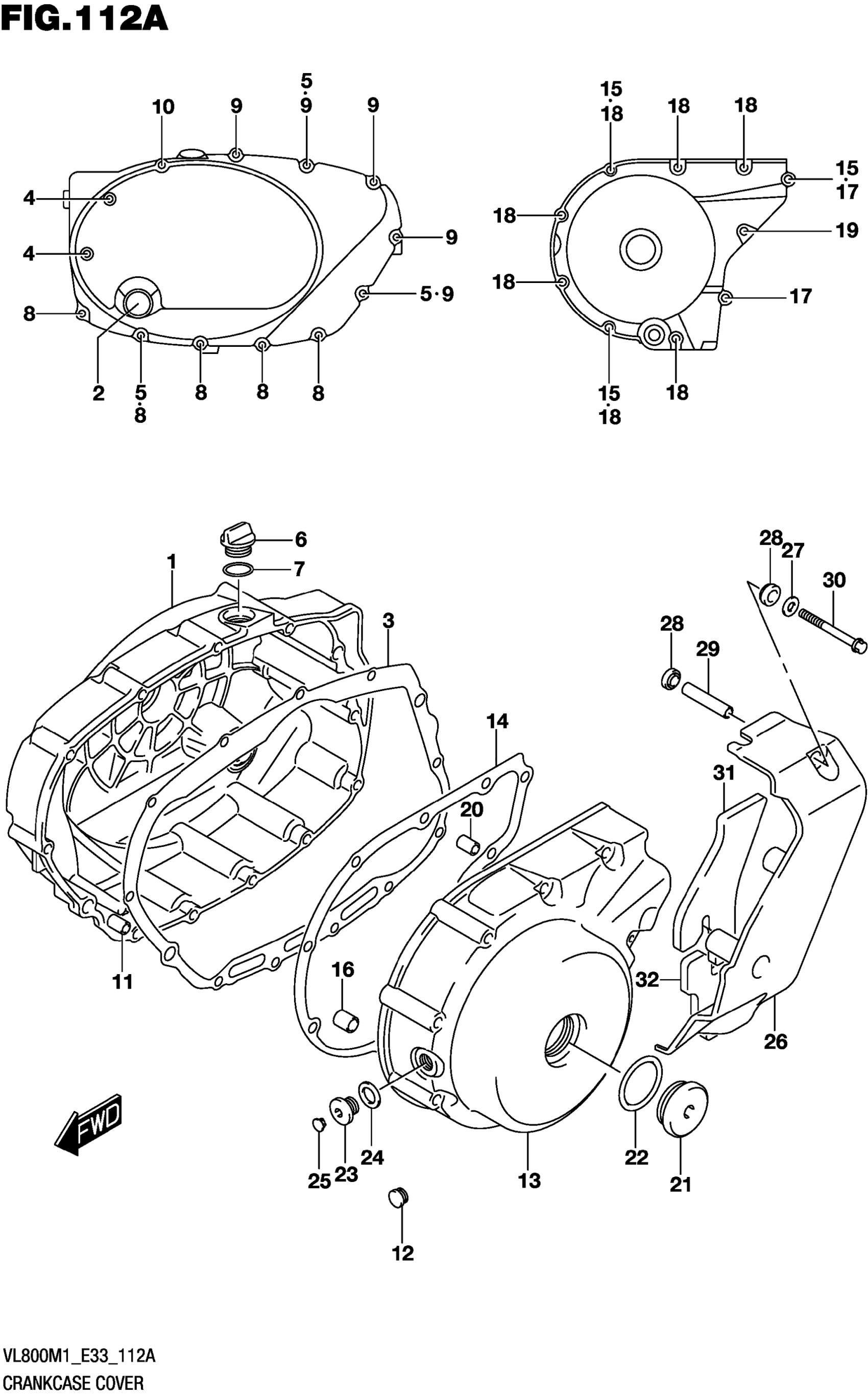

Find the part on the Crankcase Cover diagram for your 2021 Suzuki VL800M1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki VL800M1 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH

11340-41F00

1
Out of stock

2

.LENS,OIL LEVEL CHECK

11971-33210

1

$18.15

In stock

3

.GASKET,CLUTCH COVER

11482-41F00

1

$17.08

In stock

4

BOLT (6X105)

09103-06270

2

$4.70

In stock

5

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

6

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

7

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

8

BOLT (6X30)

09103-06213

5
Out of stock

9

BOLT (6X50)

09103-06238

5
Out of stock

10

BOLT (6X85)

09103-06226

1

$4.18

In stock

11

PIN

04211-09189

2
Out of stock

12

CAP (OD:12)

09250-08013

2
Out of stock

13

COVER,GENERATOR

11351-41F10

1

$437.40

In stock

14

1

$14.17

In stock

15

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

16

.PIN (8.4X11X20)

09206-11007

1

$2.63

In stock

17

BOLT (6X40)

09103-06215

2

$2.92

In stock

18

BOLT (6X55)

09103-06216

7

$2.92

In stock

19

BOLT (6X85)

09103-06226

1

$4.18

In stock

20

PIN

04211-09189

1
Out of stock

21

PLUG (36X10)

09259-36008

1

$11.37

In stock

22

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

23

PLUG (14X12)

09248-14011

1
Out of stock

24

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

25

CAP (OD:12)

09250-08012

1

$2.35

In stock

26

1

$251.28

In stock

27

WASHER (6.5X14X1.6)

09160-06125

3
Out of stock

28

WASHER (8.7X16X5)

09161-09005

6

$2.52

In stock

29

SPACER (6X55)

09180-06280

3

$5.52

In stock

30

BOLT (6X55)

09103-06216

3

$2.92

In stock

31

1

$16.92

In stock

32

1

$11.93

In stock
