2011 Suzuki VL800CL1 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

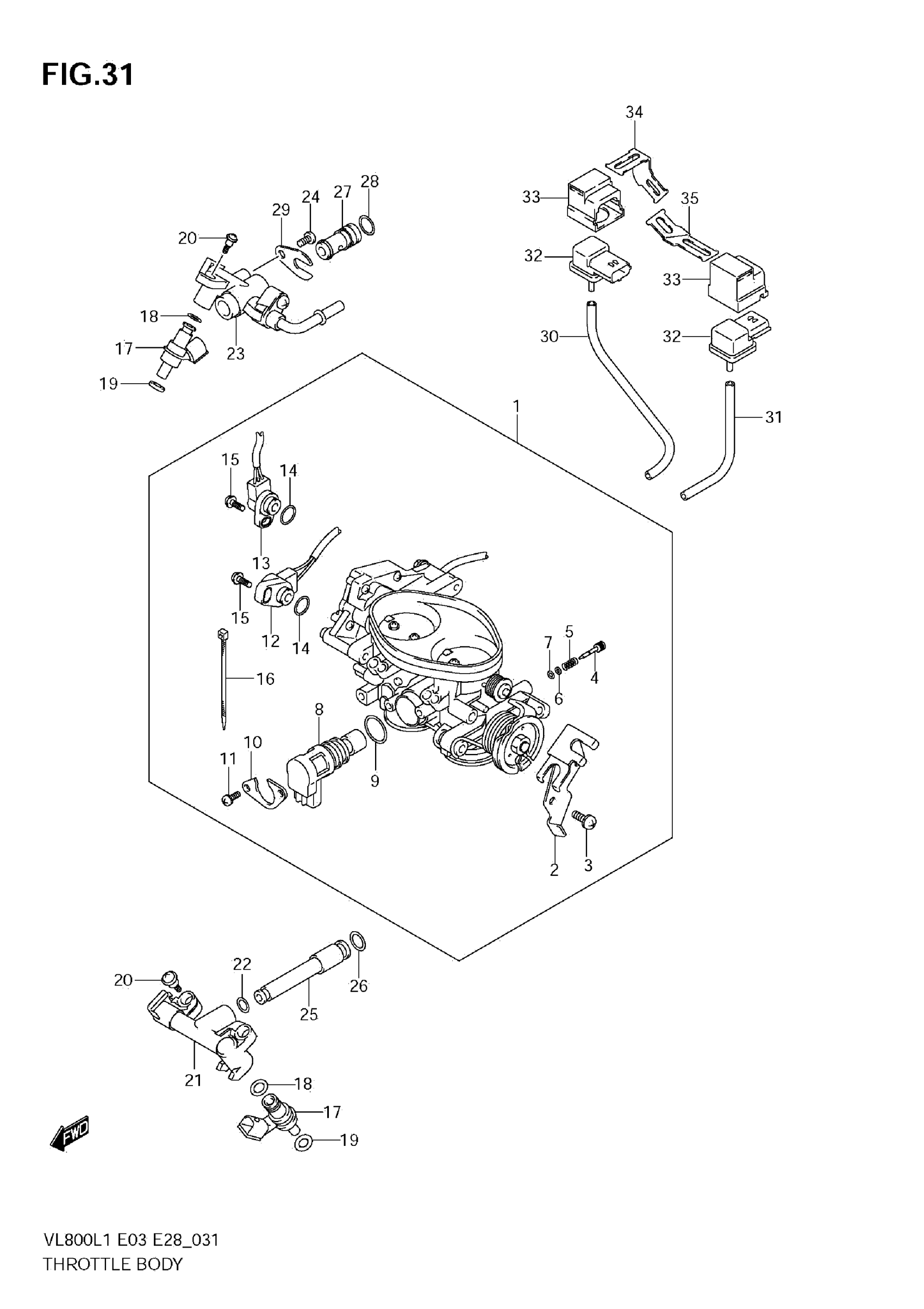

2011 Suzuki VL800CL1 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$968.08

In stock

2

PLATE, STAY

13565-41F20

1
Out of stock

3

SCREW

13601-21H00

2
Out of stock

4

SCREW

13269-18G00

2

$13.35

In stock

5

SPRING

13271-43E00

2
Out of stock

6

WASHER

13291-26E00

2

$2.92

In stock

7

O RING

13295-26E00

2

$4.33

In stock

8

1

$403.72

In stock

9

O RING

18119-05H00

1

$4.47

In stock

10

PLATE, STAY

13428-15H00

1
Out of stock

11

SCREW

13605-15H00

2

$8.03

In stock

14

O RING

13575-40F00

2
Out of stock

15

SCREW

13605-40F00

2
Out of stock

16

BAND

09407-14407

1
Out of stock

17

INJECTOR ASSY

15710-26GA0

2

$265.88

In stock

18

.O-RING

15721-21H00

2
Out of stock

19

.RING,SEAL

15722-21H00

2
Out of stock

20

SCREW

13602-34F50

4

$3.19

In stock

21

PIPE SET, FUEL FR

13473-41FA0

1

$87.03

In stock

22

.O-RING

15721-24F00

1
Out of stock

23

PIPE SET, FUEL RR

13473-41FB0

1

$117.20

In stock

24

SCREW

13602-10F10

1

$4.18

In stock

25

JOINT

13473-41FC0

1

$15.37

In stock

26

O-RING

15721-10G00

1

$9.06

In stock

27

PLUG, STRAIGHT

13474-41F20

1

$7.77

In stock

28

O-RING

15721-41F20

1

$25.25

In stock

29

PLATE

13475-41F20

1

$6.30

In stock

30

HOSE

13683-41FA0

1

$26.50

In stock

31

HOSE

13683-41FD0

1
Out of stock

32

SENSOR, PRESSURE

18591-42F00

2

$394.48

In stock

33

HOLDER

18595-42F20

2
Out of stock

34

BRACKET, BOOST SENSOR FR

18598-41F00

1
Out of stock

35

BRACKET, BOOST SENSOR RR

18599-39G00

1
Out of stock
