2011 Suzuki VL800CL1 Evap System Diagram

← All diagrams

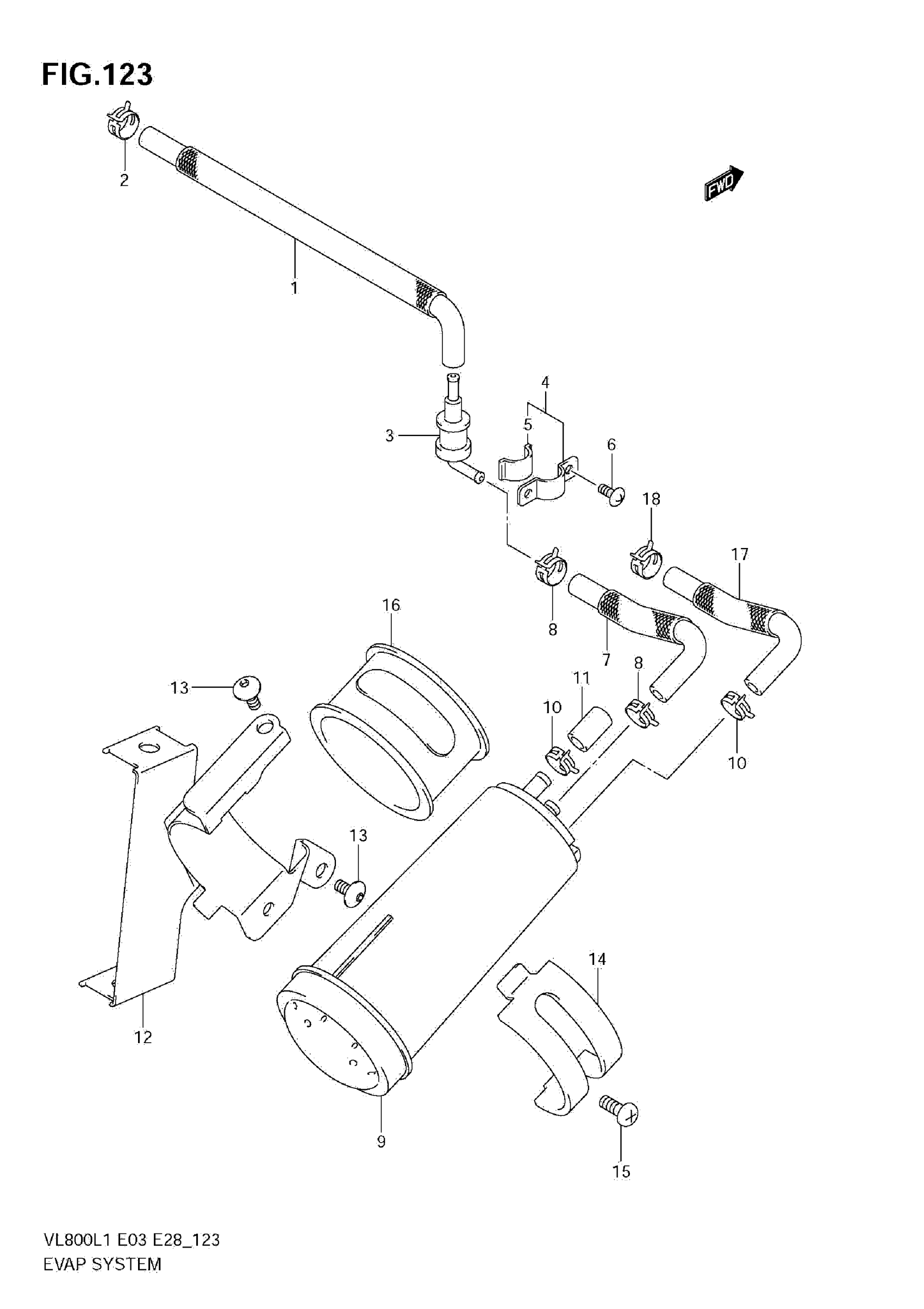

Find the part on the Evap System diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki VL800CL1 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE UPPER

44434-39G01

1
Out of stock

2

CLIP

09401-11413

2
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

SCREW, PLATE

02142-0408A

2
Out of stock

7

HOSE, VALVE & CANISTER

44435-39G10

1
Out of stock

8

CLIP

09401-11413

2
Out of stock

9

CANISTER SET

17200-17H00

1
Out of stock

10

CLIP

09401-12404

2
Out of stock

11

CAP, PURGE

09251-07003

1
Out of stock

12

BRACKET, CANISTER

44880-43H00

1
Out of stock

13

BOLT, BRACKET (6X12)

09139-06108

2
Out of stock

14

HOLDER, CANISTER

44882-26E00

1
Out of stock

15

SCREW, HOLDER

02142-0610A

1
Out of stock

16

CUSHION CANISTER

44883-26E00

1
Out of stock

17

HOSE, PURGE

44436-43H00

1
Out of stock

18

CLIP

09401-11413

1
Out of stock
