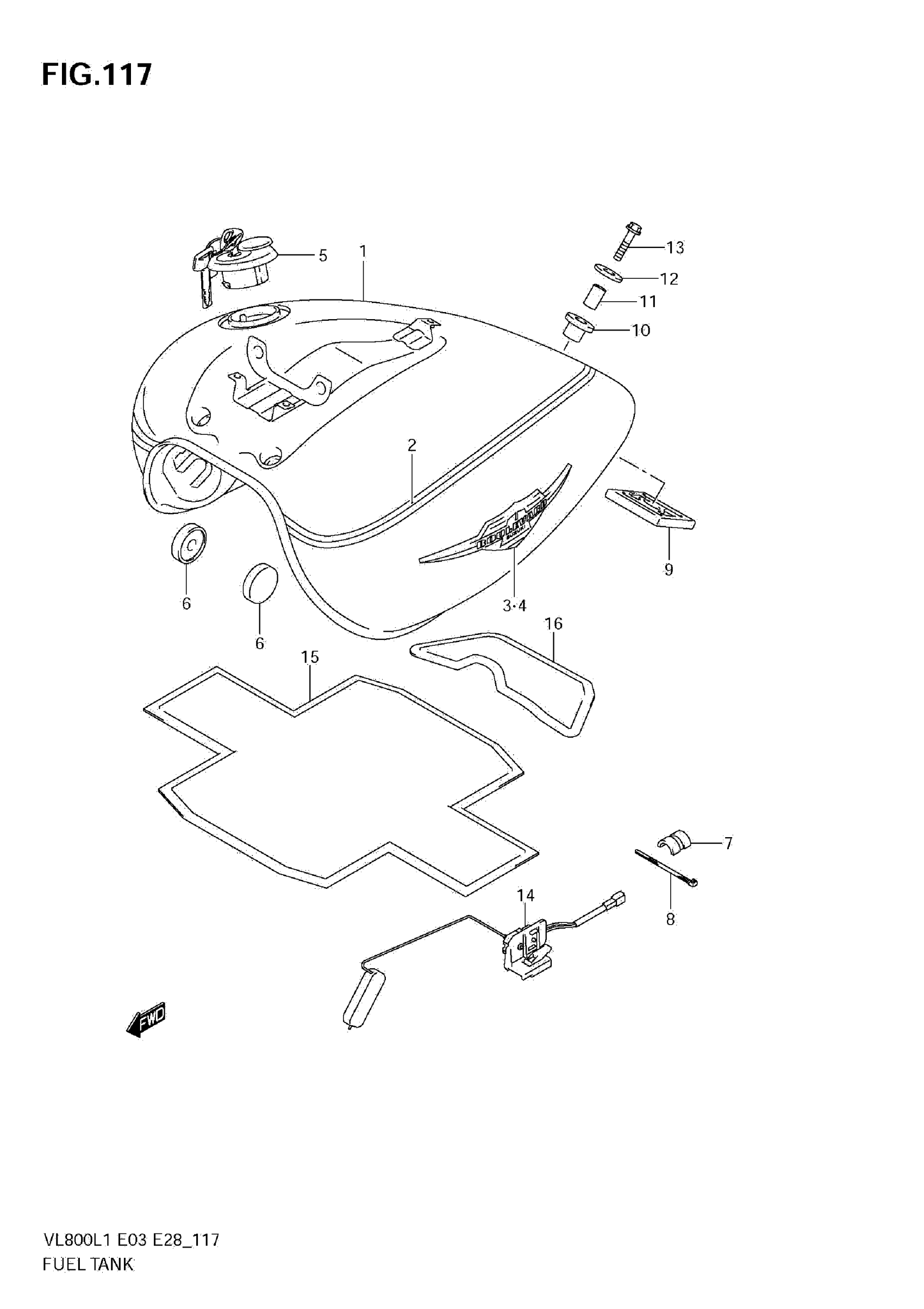

Suzuki VL800CL1 (2011) FUEL TANK (VL800T E3) Diagram

#

Description
Price

1

TANK ASSY, FUEL | FOR JEY

44100-43HD0-JEY

Unavailable

1

TANK ASSY, FUEL | FOR JEZ

44100-43HD0-JEZ

Unavailable

2

TAPE SET | FOR JEY

68110-41F30-JFK

Unavailable

2

TAPE SET | FOR JEZ

68110-41F30-JFL

Unavailable

3

EMBLEM, RH

68111-41F31

$80.57

4

EMBLEM, LH

68121-41F31

$80.57

5

CAP SET,FUEL TA This part replaces 44200-41830.

44200-41832

$179.58

6

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

7

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.34

8

CLAMP (L:248)

09407-25402

$4.19

9

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.02

10

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$4.97

11

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.07

12

WASHER (8.5X33X1.5)

09160-08146

$2.58

13

BOLT (8X35)

01550-0835A

$2.80

14

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$116.39

15

SHIELD, HEAT NO.1

44192-39G00

$166.93

16

SHIELD, HEAT NO.2

44191-43H00

$98.98
