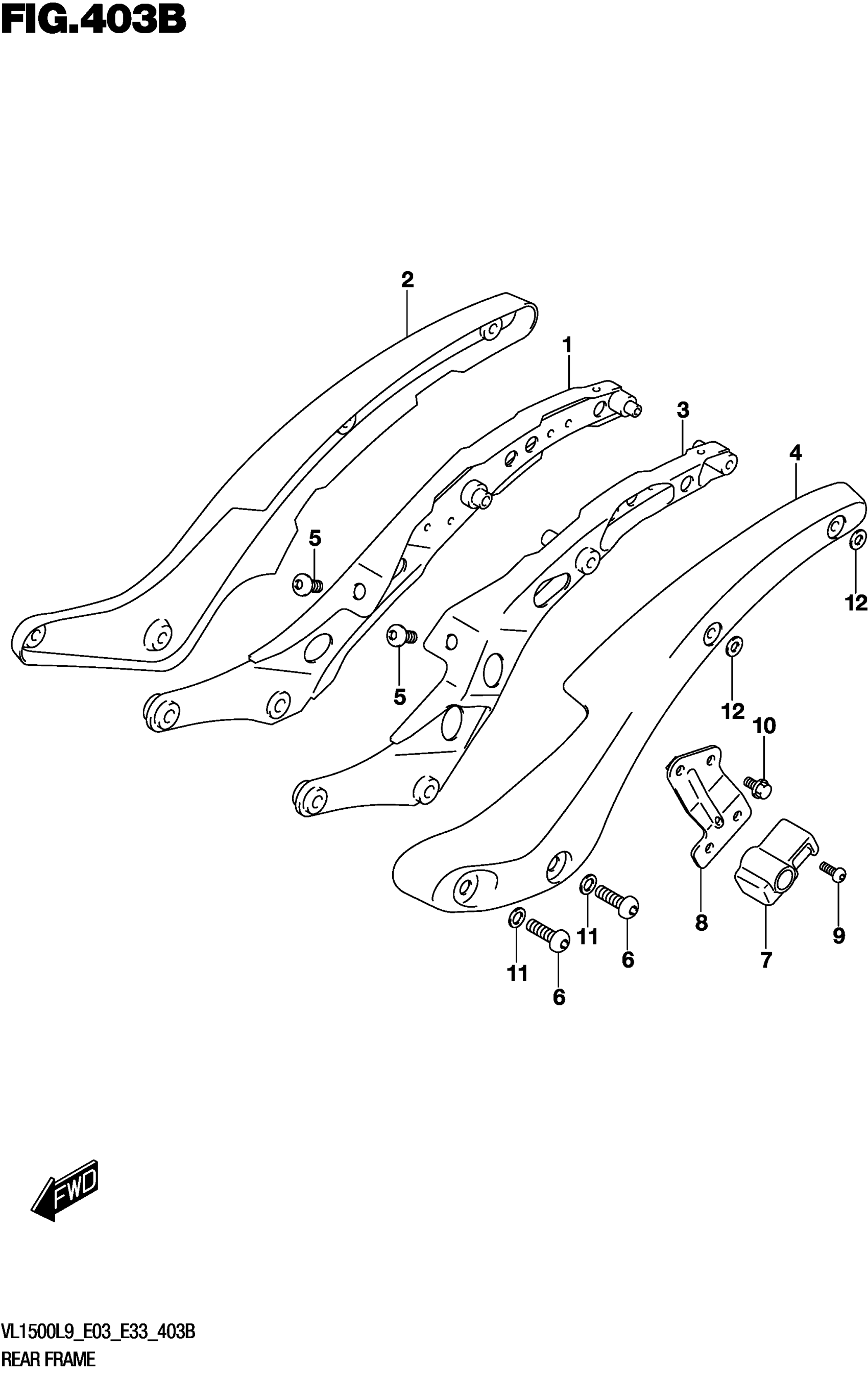

Suzuki VL1500BL9 (2019) REAR FRAME (VL1500BL9 E33) Diagram

#

Description
Price

1

FRAME

42650-06J00

Unavailable

2

PLATE

42651-06J10

Unavailable

3

FRAME

42660-06J00

$323.37

4

PLATE

42661-06J10

$351.10

5

BOLT (10X25)

09139-10003

$6.34

6

BOLT (10X35)

09139-10005

$10.33

7

LOCK SET HELMET

95700-41821

$171.60

8

BRACKET

95710-06J00

Unavailable

9

SCREW (6X14)

09139-06089

$3.30

10

SCREW

02162-0612A

$1.93

11

WASHER (10.5X19X2.0) | FRONT

09160-10082

$1.62

12

WASHER (8.5X18X1.0) | REAR

09160-08043

$1.81
