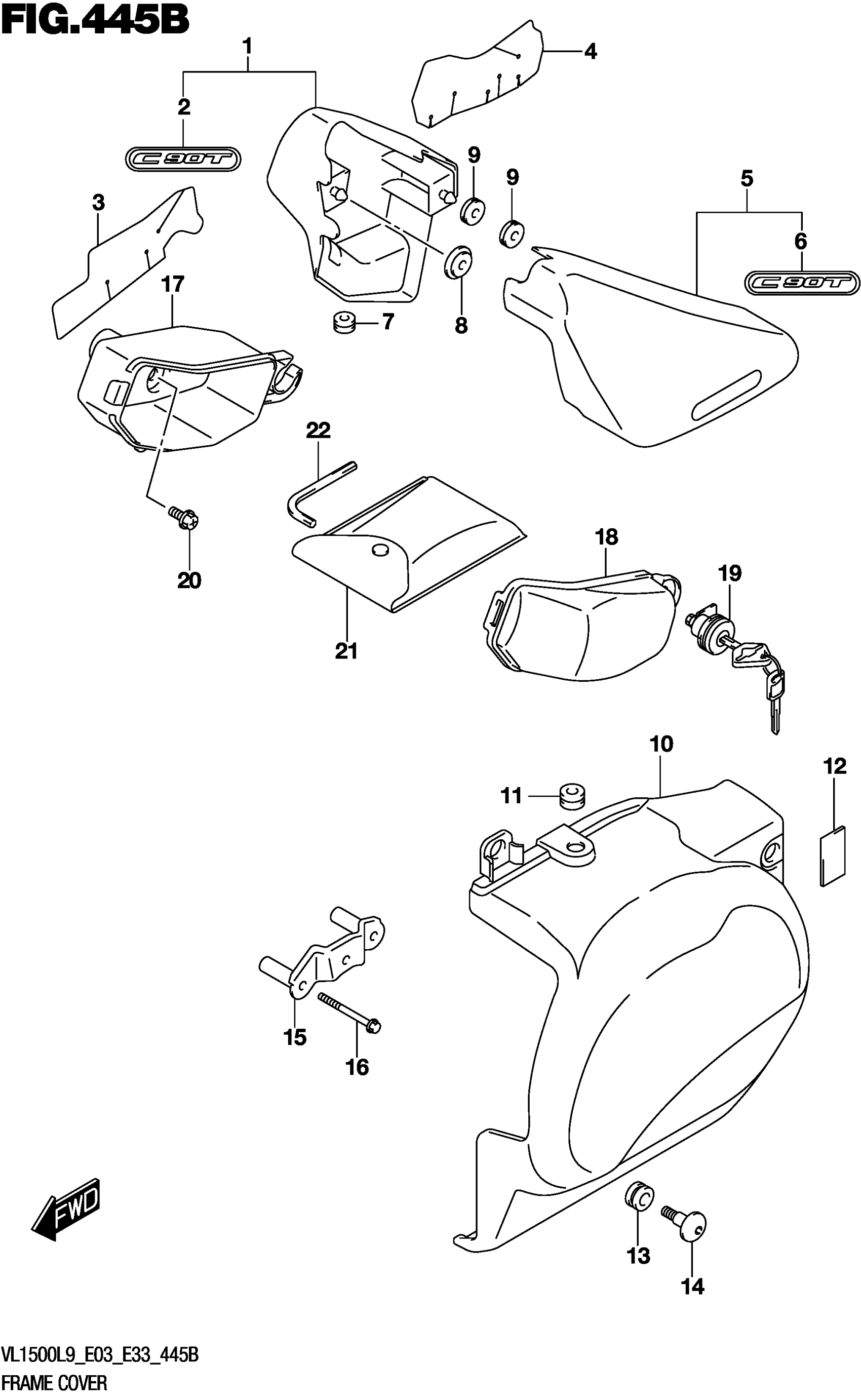

Suzuki VL1500BL9 (2019) FRAME COVER (VL1500BL9 E33) Diagram

#

Description
Price

1-1

COVER, SIDE RH (BLACK)

47110-06JB0-YVB

$107.27

1-2

COVER, SIDE RH (GRAY)

47110-06JB0-YWB

$107.27

2-1

.EMBLEM, "C90" (GRAY) | FOR YVB

68131-06JB0-YHG

Unavailable

2-2

.EMBLEM, "C90" (BROWN) | FOR YWB

68131-06JB0-YWG

$20.00

3

SHIELD

47166-06J10

Unavailable

4

SHIELD

47166-06J20

$6.37

5-1

COVER, SIDE LH (BLACK)

47210-06JB0-YVB

Unavailable

5-2

COVER, SIDE LH (GRAY)

47210-06JB0-YWB

$112.63

6-1

.EMBLEM, "C90" (GRAY) | FOR YVB

68131-06JB0-YHG

Unavailable

6-2

.EMBLEM, "C90" (BROWN) | FOR YWB

68131-06JB0-YWG

$20.00

7

CUSHION

47167-06J00

$8.63

8

CUSHION

47191-06J00

$5.48

9

CUSHION (8X26X7) | REAR

09320-08018

$2.80

10

COVER

47231-40H20

$134.80

11

CUSHION (6X18X6) | LH

09320-06504

$4.47

12

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.95

13

CUSHION (9X18X9.5) | LH

09320-09016

$1.97

14

SCREW (6X20) | LH

09139-06190

$3.77

15

BRACKET

47250-06J00

$32.90

16

BOLT

01547-0650A

$2.51

17

BODY

92211-06J00

Unavailable

18

LID

92212-06J00

Unavailable

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

20

BOLT (6X12)

09111-06107

$2.66

21

TOOL ASSY This part replaces 09800-21056.

09800-21100

Unavailable

22

SPANNER,HEXAGON (6)

09816-00050

$5.47
