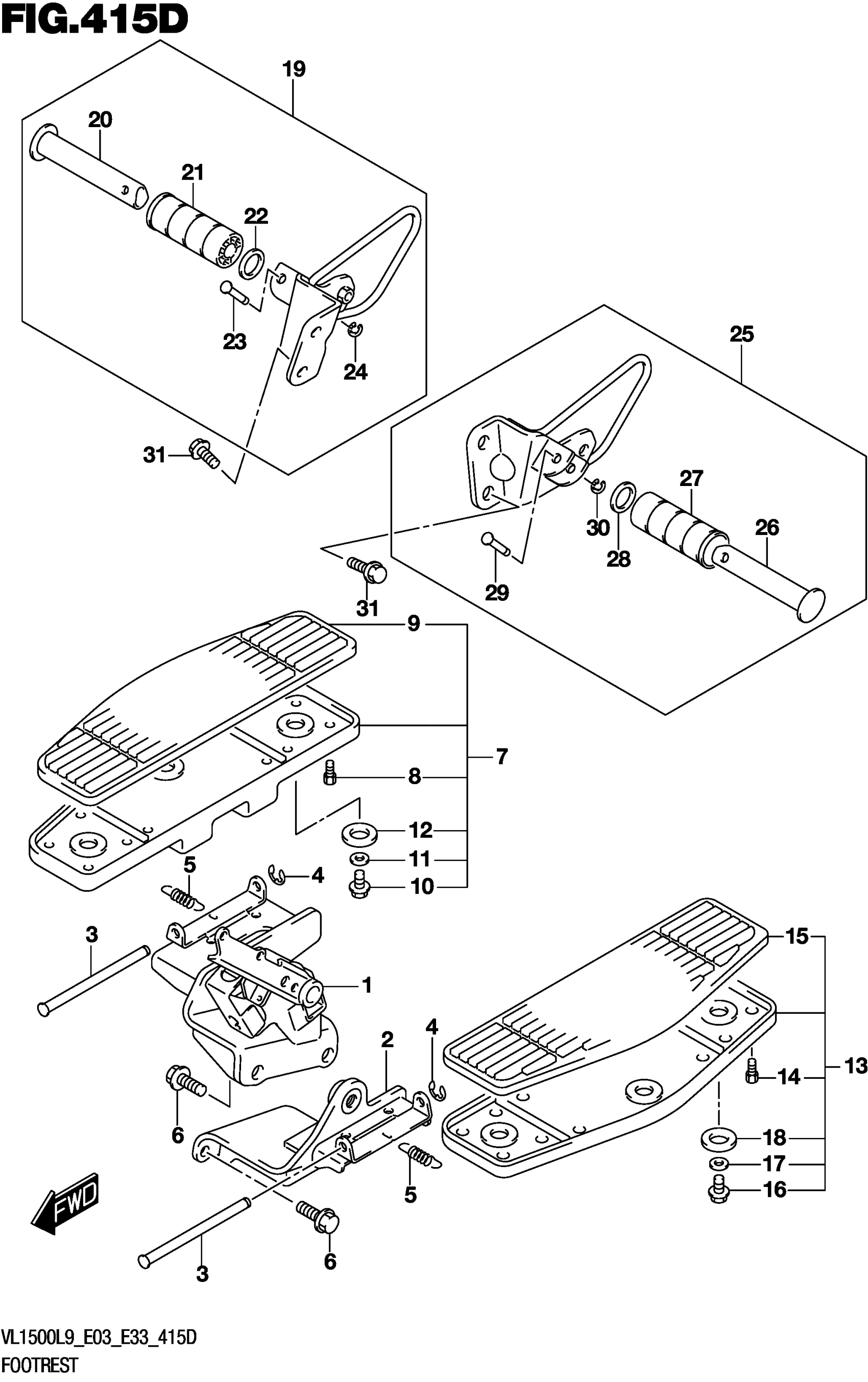

Suzuki VL1500BL9 (2019) FOOTREST (VL1500TL9 E33) Diagram

#

Description
Price

1

BRACKET

43510-06J00

$250.83

2

BRACKET

43520-06J01

$108.07

3

PIN,FRONT FOOTREST

43539-10F00

$7.65

4

E-RING

08332-1106A

$1.43

5

SPRING

09443-11033

$4.07

6

BOLT

01550-1025B

$4.45

7

FOOTREST ASSY,FRONT RH This part replaces 43501-10F11.

43501-10F12

$232.63

8

.BOLT,BANK SENSOR

43576-07D01

$8.10

9

.RUBBER,FR FOOTREST

43550-10F10

Unavailable

10

BOLT

01550-0610A

$1.97

11

.WASHER (6.5X22X1.6)

09160-06158

$2.50

12

.CUSHION This part replaces 09320-10036.

09320-10077

$2.43

13

FOOTREST ASSY,FRONT LH This part replaces 43502-10F11.

43502-10F12

$232.63

14

.BOLT,BANK SENSOR

43576-07D01

$8.10

15

.RUBBER,FR FOOTREST

43550-10F10

Unavailable

16

BOLT

01550-0610A

$1.97

17

.WASHER (6.5X22X1.6)

09160-06158

$2.50

18

.CUSHION This part replaces 09320-10036.

09320-10077

$2.43

19

FOOTREST ASSY

43600-06J10

$85.92

20

.BAR,PILLION FOOTREST

43610-39G10

$18.83

21

.RUBBER,PILLION FOOTREST

43612-39G00

$7.32

22

.WASHER (19.5X32X2)

09160-19024

$2.76

23

.PIN

09208-06007

$3.01

24

E-RING

08332-1104A

$1.37

25

FOOTREST ASSY

43700-06J20

$83.88

26

.BAR,PILLION FOOTREST

43610-39G10

$18.83

27

.RUBBER,PILLION FOOTREST

43612-39G00

$7.32

28

.WASHER (19.5X32X2)

09160-19024

$2.76

29

.PIN

09208-06007

$3.01

30

E-RING

08332-1104A

$1.37

31

BOLT (8X16)

09103-08412

$3.30
