2018 Suzuki VL1500BL8 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2018 Suzuki VL1500BL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

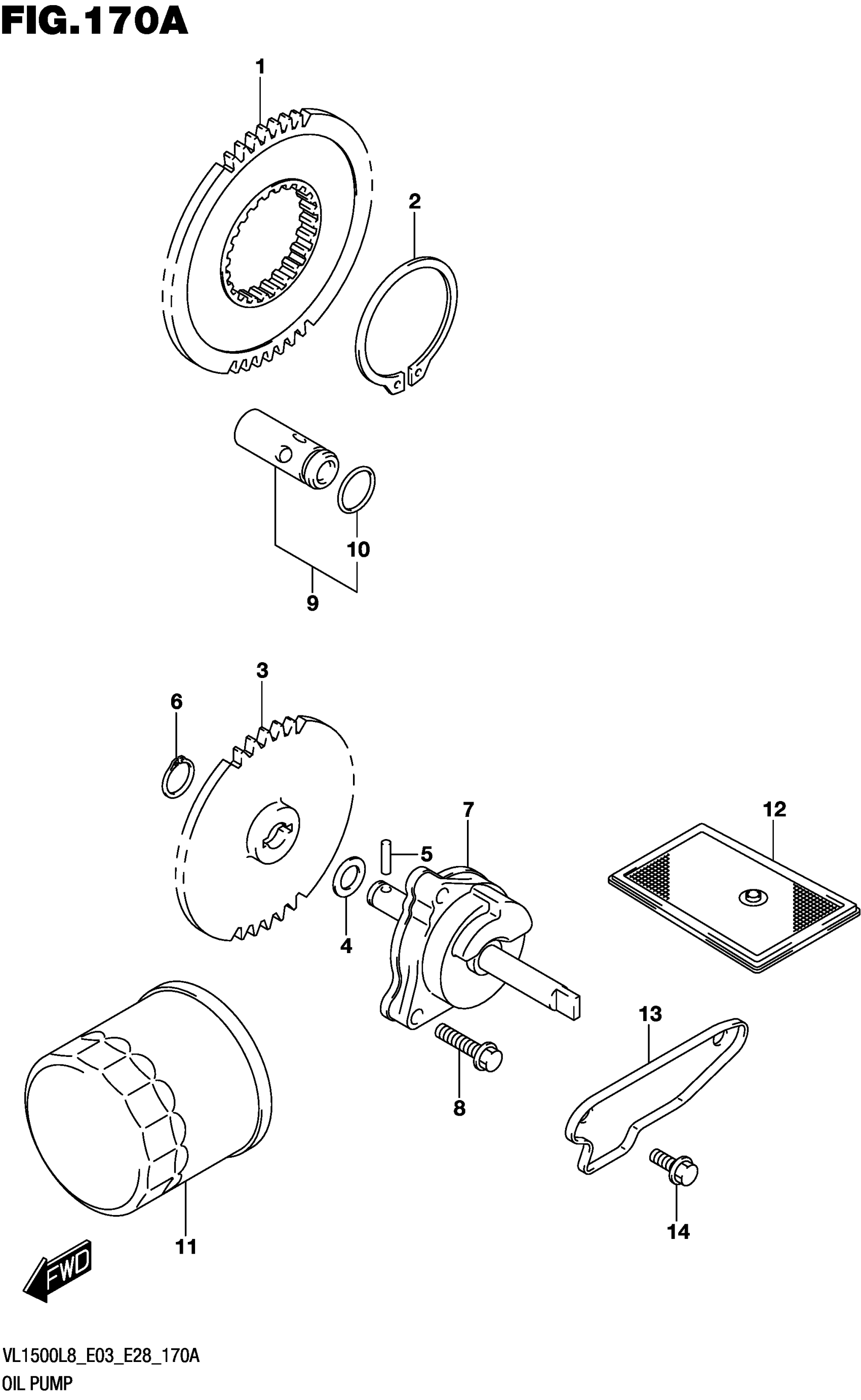

2018 Suzuki VL1500BL8 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR

16321-40H00

1
Out of stock

2

CIRCLIP

08331-31529

1
Out of stock

3

GEAR

16331-40H00

1
Out of stock

4

SHIM (10X18X0.5)

09181-10158

1
Out of stock

5

PIN (4X15.8)

09261-04009

1
Out of stock

6

CIRCLIP

08331-31109

1
Out of stock

7

PUMP ASSY

16400-40H00

1
Out of stock

8

BOLT

01547-0625A

3
Out of stock

9

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

1
Out of stock

10

.O-RING (D:1.9,ID:13)

09280-13004

1
Out of stock

11

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

1
Out of stock

12

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

1
Out of stock

13

CAP,OIL STRAINER

16523-17G00

1
Out of stock

14

BOLT

01547-0612A

2
Out of stock
