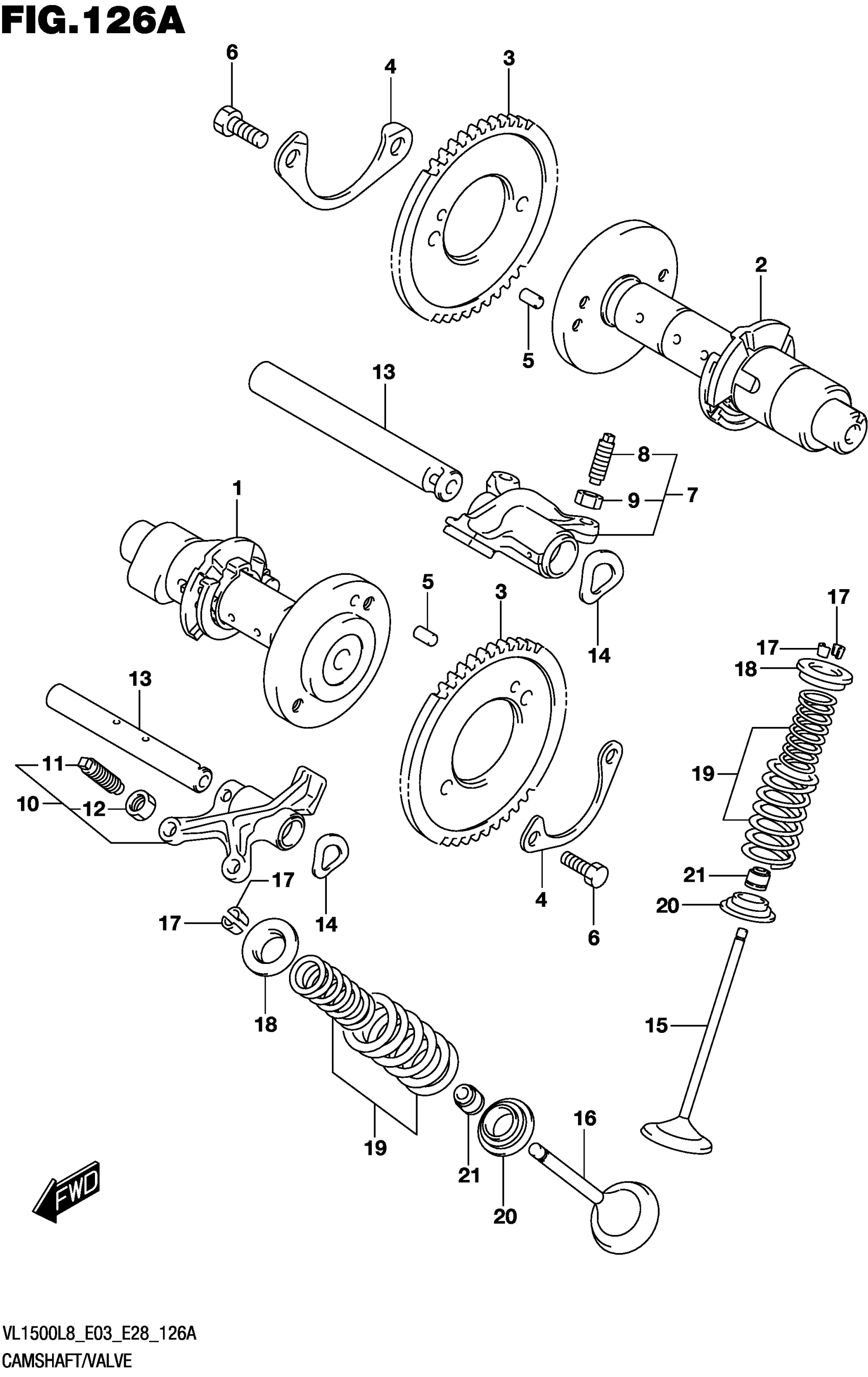

Suzuki VL1500BL8 (2018) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-40H20

Unavailable

2

CAMSHAFT

12730-40H10

Unavailable

3

SPROCKET,CAMSHAFT (NT:46)

12741-41F00

$70.52

4

WASHER,SPROCKET

12747-44001

$2.60

5

PIN

04221-05109

$1.49

6

BOLT (6X12.5)

09100-06169

Unavailable

7

ARM

12840-40H00

Unavailable

8

.SCREW,TAPPET ADJUSTING

12842-38A00

$6.95

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM

12850-40H00

Unavailable

11

.SCREW,TAPPET ADJUSTING

12842-38A00

$6.95

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT

12861-40H00

Unavailable

14

WASHER (12.7X18.1X0.2)

09164-12018

$1.41

15

VALVE

12911-40H00

Unavailable

16

VALVE

12912-40H00

Unavailable

17

COTTER, VALVE

12932-24400

$1.98

18

RETAINER,VALVE SPRING

12931-33201

$9.35

19

SPRING SET,VALVE

12920-32E00

$19.03

20

SEAT,VALVE SPRING

12933-81400

$4.86

21

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04
