2018 Suzuki VL1500BL8 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2018 Suzuki VL1500BL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

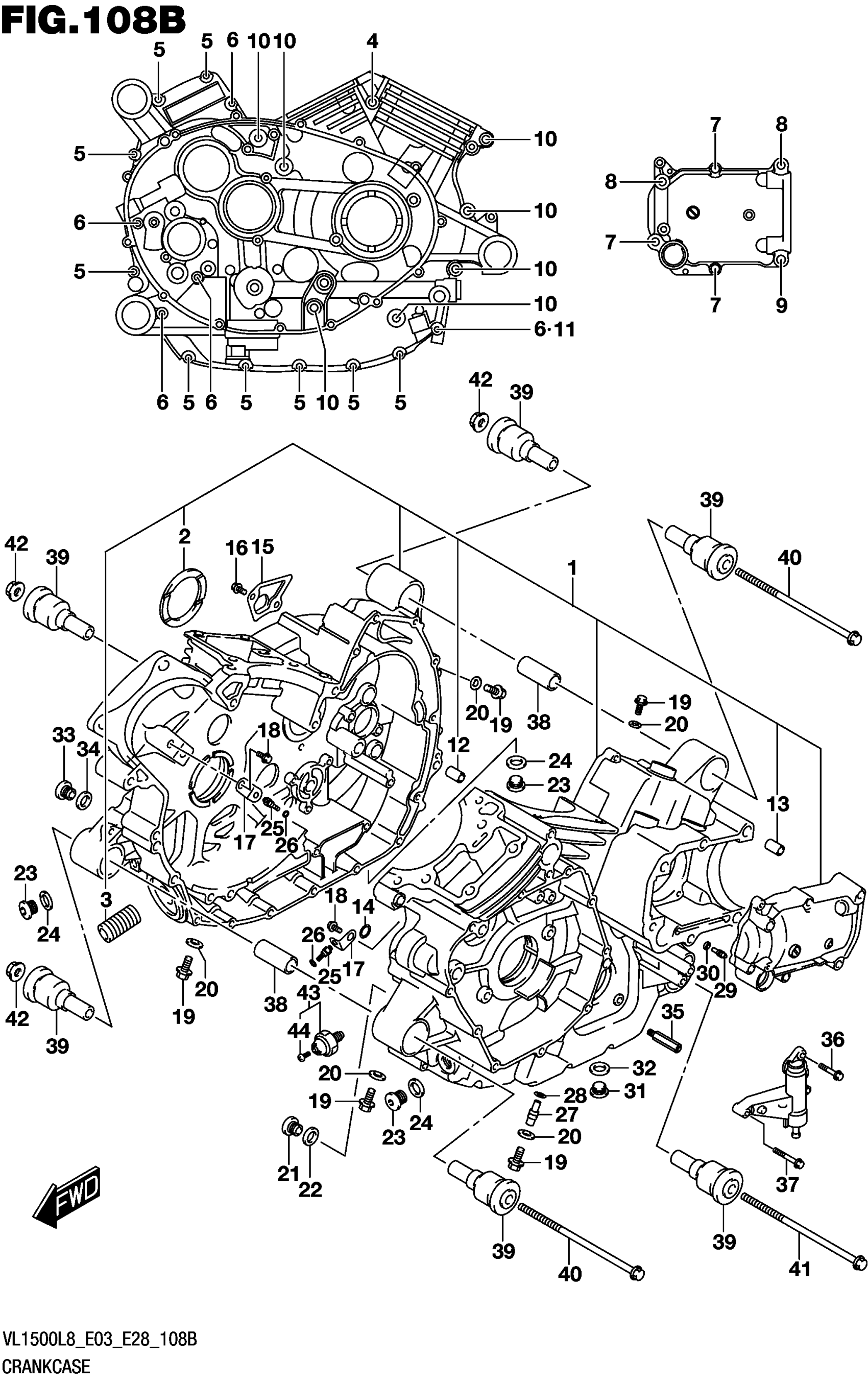

2018 Suzuki VL1500BL8 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-40871

1

$3,763.90

In stock

2-1

.BEARING

12228-40H00-0A0

1
Out of stock

2-1

.BEARING

12228-40H00-0A0

1
Out of stock

2-2

.BEARING

12228-40H00-0B0

1
Out of stock

2-2

.BEARING

12228-40H00-0B0

1
Out of stock

2-3

.BEARING

12228-40H00-0C0

1
Out of stock

2-3

.BEARING

12228-40H00-0C0

1
Out of stock

2-4

.BEARING

12228-40H00-0D0

1
Out of stock

2-4

.BEARING

12228-40H00-0D0

1
Out of stock

2-5

.BEARING

12228-40H00-0E0

1
Out of stock

2-5

.BEARING

12228-40H00-0E0

1
Out of stock

2-6

.BEARING

12228-40H00-0F0

1
Out of stock

2-6

.BEARING

12228-40H00-0F0

1
Out of stock

3

UNION,OIL STAND

16591-06B01

1
Out of stock

4

.BOLT (8X110)

09103-08134

1

$3.70

In stock

5

BOLT

01547-0645A

9
Out of stock

6

.BOLT

01547-0685A

—
Out of stock

7

BOLT

01550-0845A

3
Out of stock

8

.BOLT

01550-0860A

2

$4.53

In stock

9

.BOLT

01550-0870A

1

$4.70

In stock

10

.BOLT

01550-0880A

7

$4.62

In stock

11

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

12

PIN,CRANKCASE

11319-33E50

2

$5.45

In stock

13

.PIN (8.4X11X20)

09206-11007

2

$2.63

In stock

14

O-RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock

15

PLATE

11313-40H00

1
Out of stock

16

BOLT

01547-0612A

3
Out of stock

17

PLATE

16439-38B00

2
Out of stock

18

BOLT

01547-0612A

2
Out of stock

19

BOLT (8X12)

01550-0812A

5
Out of stock

20

GASKET (8.2X14X1)

09168-08016

5
Out of stock

21

PLUG (10X10)

09248-10010

1
Out of stock

22

GASKET (10X14X3.6)

09168-10002

1

$2.27

In stock

23

PLUG (16X8)

09248-16012

3
Out of stock

24

GASKET (16X22X2)

09168-16002

3
Out of stock

25

JET

09493-80009

2
Out of stock

26

O-RING (D:1.2,ID:4)

09280-04004

2

$2.03

In stock

27

JET (12)

09493-24009

1
Out of stock

28

O-RING (D:1.2,ID:4)

09280-04004

1

$2.03

In stock

29

JET (18)

09493-36004

1

$18.33

In stock

30

O-RING (D:1.2,ID:4)

09280-04004

1

$2.03

In stock

31

1

$5.98

In stock

32

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

33

PLUG (14X12)

09248-14011

1
Out of stock

34

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

35

BOLT

11372-22H00

1

$16.92

In stock

36

BOLT

01547-0620A

1
Out of stock

37

BOLT

01547-0630A

2

$2.48

In stock

38

SPACER,ENG MTG

11611-48G00

2
Out of stock

39

BUSH

11652-40H20

6
Out of stock

40

BOLT (10X215)

09103-10041-A05

2

$10.07

In stock

41

BOLT (10X195)

09103-10118

1
Out of stock

42

NUT

08319-3110A

3
Out of stock

43

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

1
Out of stock

44

.BOLT,OIL PRESSURE SWITCH

37822-33D00

1
Out of stock
