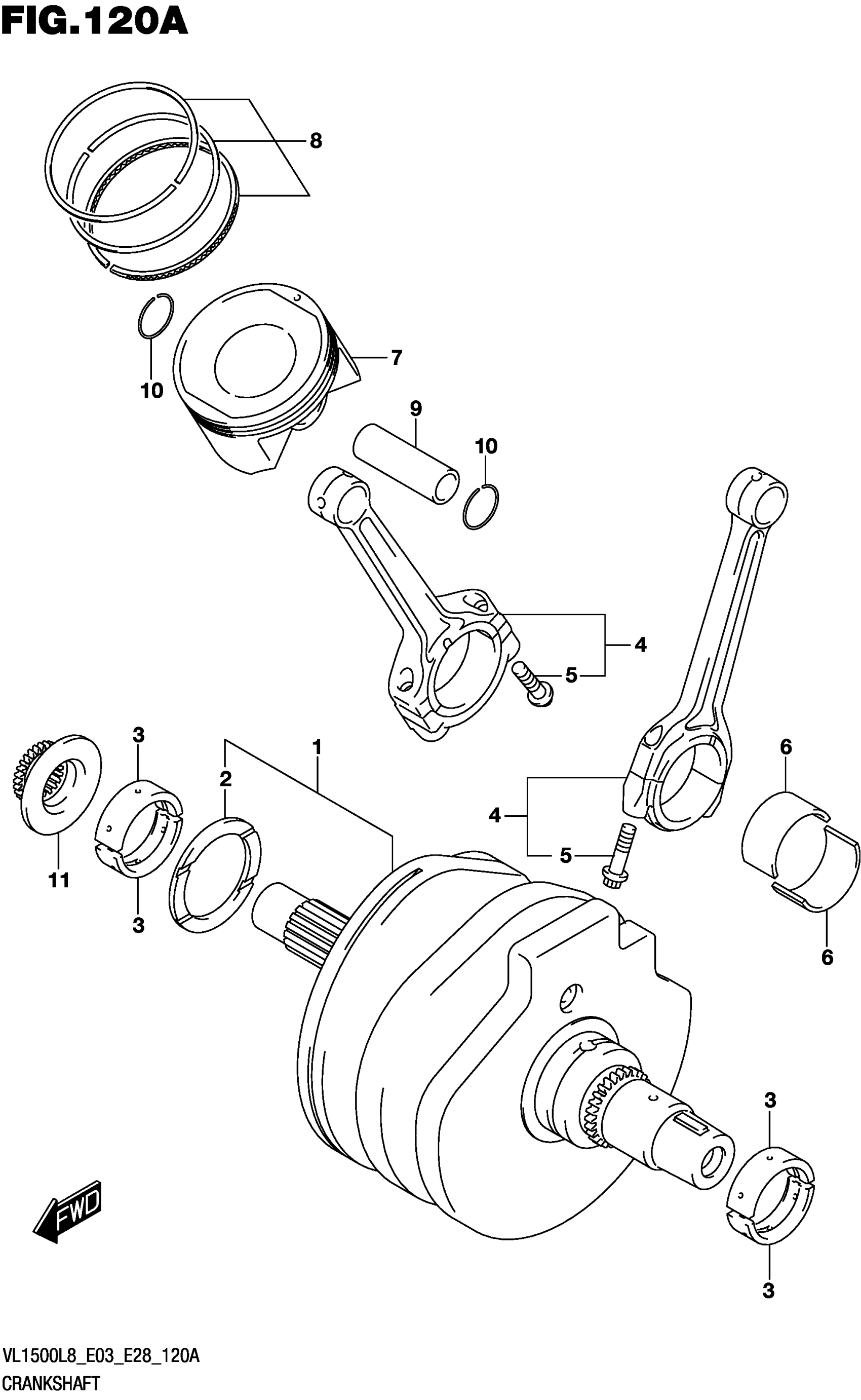

Suzuki VL1500BL8 (2018) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12000-40851

$1,896.28

2-1

.BEARING

12228-40H00-0A0

Unavailable

2-1

.BEARING

12228-40H00-0A0

Unavailable

2-2

.BEARING

12228-40H00-0B0

Unavailable

2-2

.BEARING

12228-40H00-0B0

Unavailable

2-3

.BEARING

12228-40H00-0C0

Unavailable

2-3

.BEARING

12228-40H00-0C0

Unavailable

2-4

.BEARING

12228-40H00-0D0

Unavailable

2-4

.BEARING

12228-40H00-0D0

Unavailable

2-5

.BEARING

12228-40H00-0E0

Unavailable

2-5

.BEARING

12228-40H00-0E0

Unavailable

2-6

.BEARING

12228-40H00-0F0

Unavailable

2-6

.BEARING

12228-40H00-0F0

Unavailable

3-1

BEARING

12229-40H00-0A0

Unavailable

3-2

BEARING

12229-40H00-0B0

Unavailable

3-3

BEARING

12229-40H00-0C0

$32.55

4

CONNROD ASSY

12160-40H00

$305.80

5

.BOLT,CONNROD

12163-06G00

$23.55

6-1

BEARING

12164-40H00-0A0

Unavailable

6-2

BEARING

12164-40H00-0B0

$25.42

6-3

BEARING

12164-40H00-0C0

Unavailable

6-4

BEARING

12164-40H00-0D0

Unavailable

7

PISTON (YELLOW)

12111-40H10-0F0

$190.35

8

RING SET

12140-40H01

$103.33

9

PIN,PISTON

12151-02F10

$32.90

10

CIRCLIP

09381-22002

$1.78

11

SPROCKET

12731-40H00

Unavailable

11

SPROCKET

12731-40H00

Unavailable
