2015 Suzuki VL1500BL5 Frame Head Cover Diagram

← All diagrams

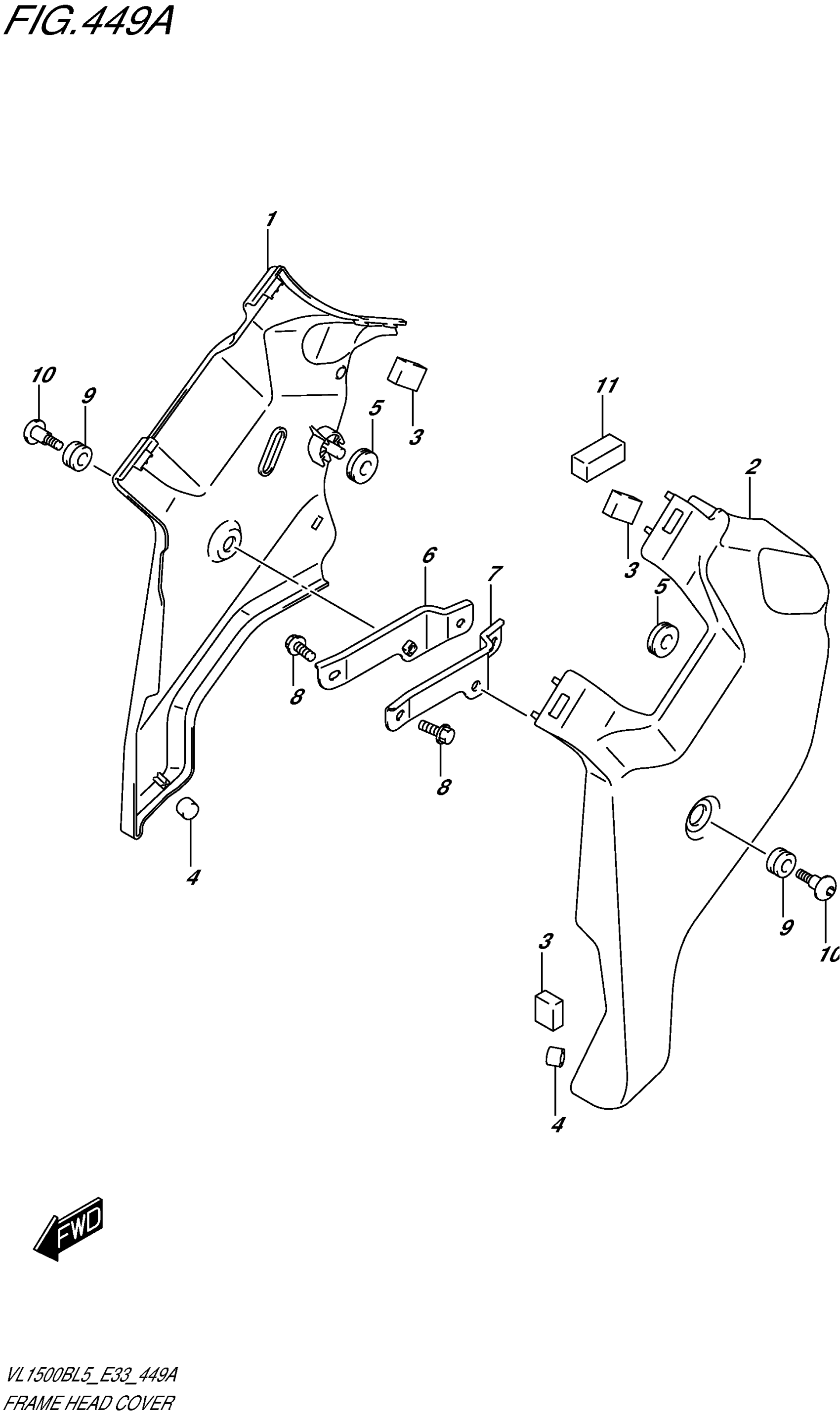

Find the part on the Frame Head Cover diagram for your 2015 Suzuki VL1500BL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500BL5 Frame Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME HEAD RH (BLACK)

47351-06J00-019

1
Out of stock

2

COVER, FRAME HEAD LH (BLACK)

47361-06J00-019

1
Out of stock

3

CUSHION | CUT AS REQUIRED

17798-39G00

5
Out of stock

4

CAP(OD:12.3) This part replaces 09250-12013.

09250-12015

2
Out of stock

5

CUSHION

09320-08018

2
Out of stock

6

PLATE, HEAD COVER RH

47370-40H00

1
Out of stock

7

PLATE, HEAD COVER LH

47380-40H00

1
Out of stock

8

BOLT

01547-0616A

4
Out of stock

9

CUSHION

09320-09016

2
Out of stock

10

BOLT (6X20)

09139-06190

2
Out of stock

11

CUSHION | CUT AS REQUIRED

47191-22D00

1
Out of stock
