2015 Suzuki VL1500BL5 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2015 Suzuki VL1500BL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

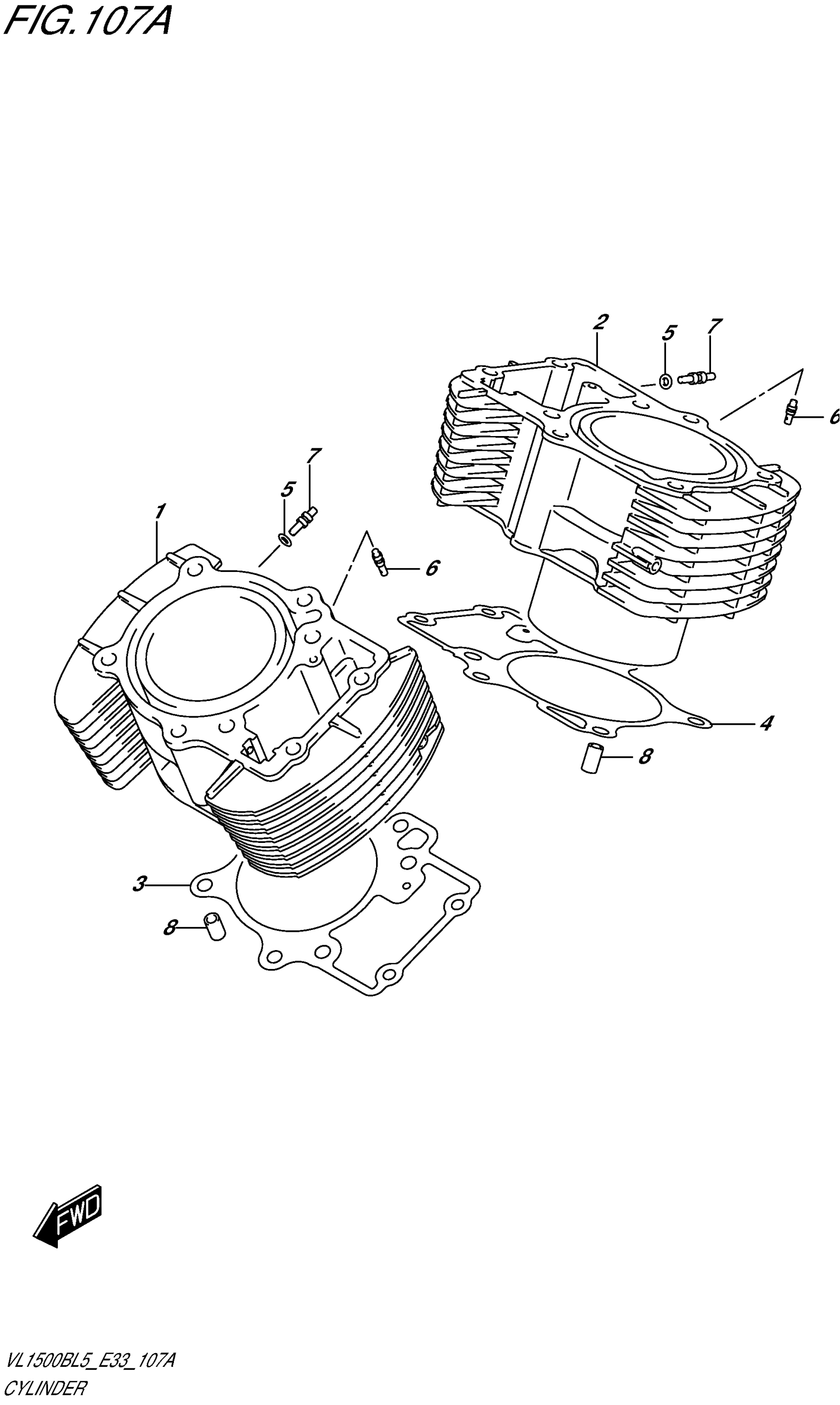

2015 Suzuki VL1500BL5 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER, FRONT

11211-40H01-0F0

1
Out of stock

2

CYLINDER, REAR

11221-06J00-0F0

1
Out of stock

3

GASKET, CYLINDER FRONT

11241-40H00

1
Out of stock

4

GASKET, CYLINDER REAR

11242-40H00

1
Out of stock

5

O RING (D:1.2,ID:4)

09280-04004

2
Out of stock

6

JET, OIL GALLERY

09493-28015

2
Out of stock

7

JET(8)

09493-80005

2
Out of stock

8

PIN

04211-13189

4
Out of stock
