2015 Suzuki VL1500BL5 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2015 Suzuki VL1500BL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

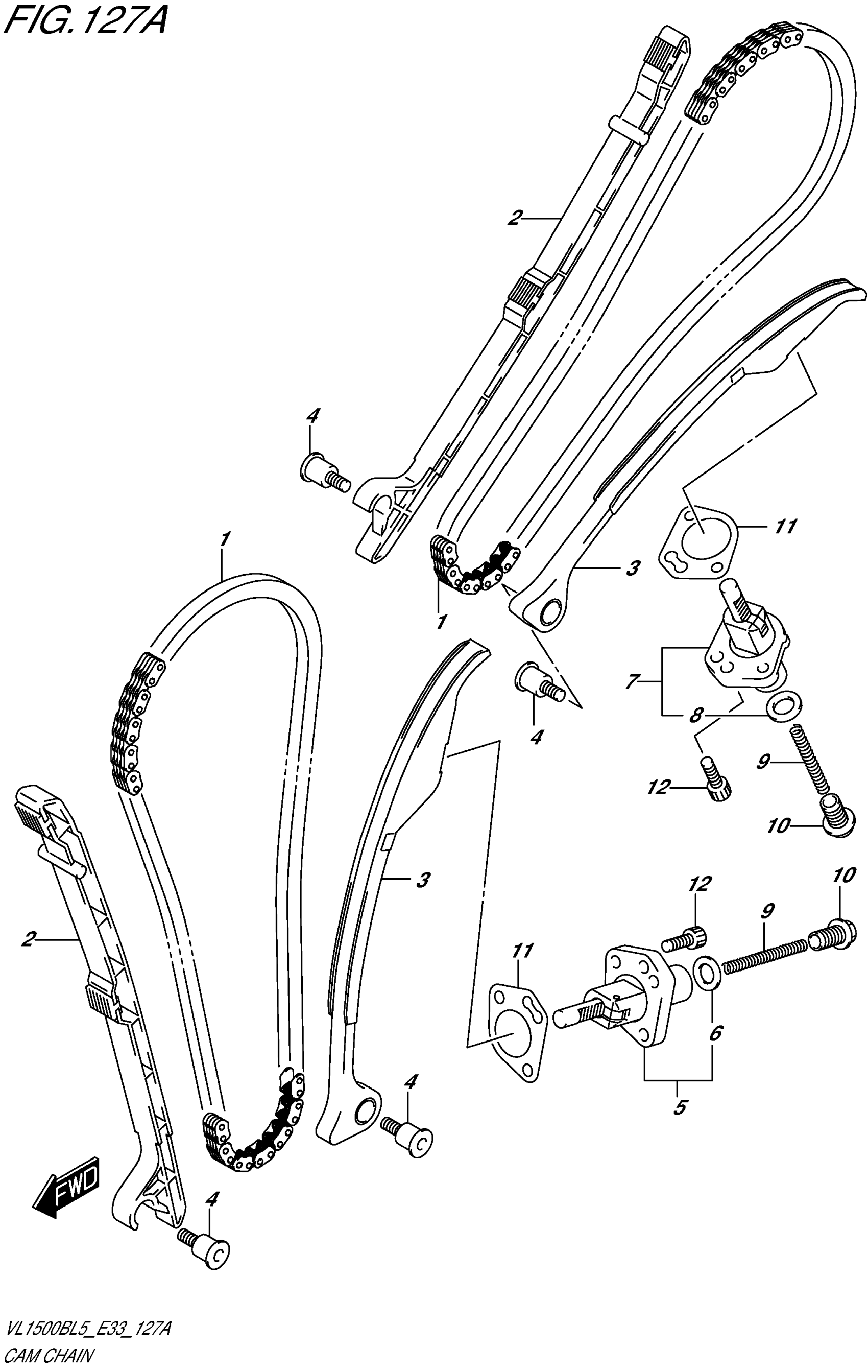

2015 Suzuki VL1500BL5 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAMSHAFT DRIVE

12760-40H00

2
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-40H00.

12771-40H01

2
Out of stock

3

TENSIONER, CAM CHAIN

12811-40H00

2
Out of stock

4

BOLT

12812-31G00

4
Out of stock

5

ADJUSTER ASSY, TENSIONER FRONT

12830-40H00

1
Out of stock

6

GASKET

12837-24F10

1
Out of stock

7

ADJUSTER ASSY, TENSIONER REAR

12830-40H10

1
Out of stock

8

GASKET

12837-24F10

1
Out of stock

9

SPRING

12831-41G00

2
Out of stock

10

PLUG

12833-17G00

2
Out of stock

11

GASKET

12837-27G00

2
Out of stock

12

BOLT (6X25)

07130-0625A

4
Out of stock
Camshaft/valve →
