2009 Suzuki VL1500 Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2009 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

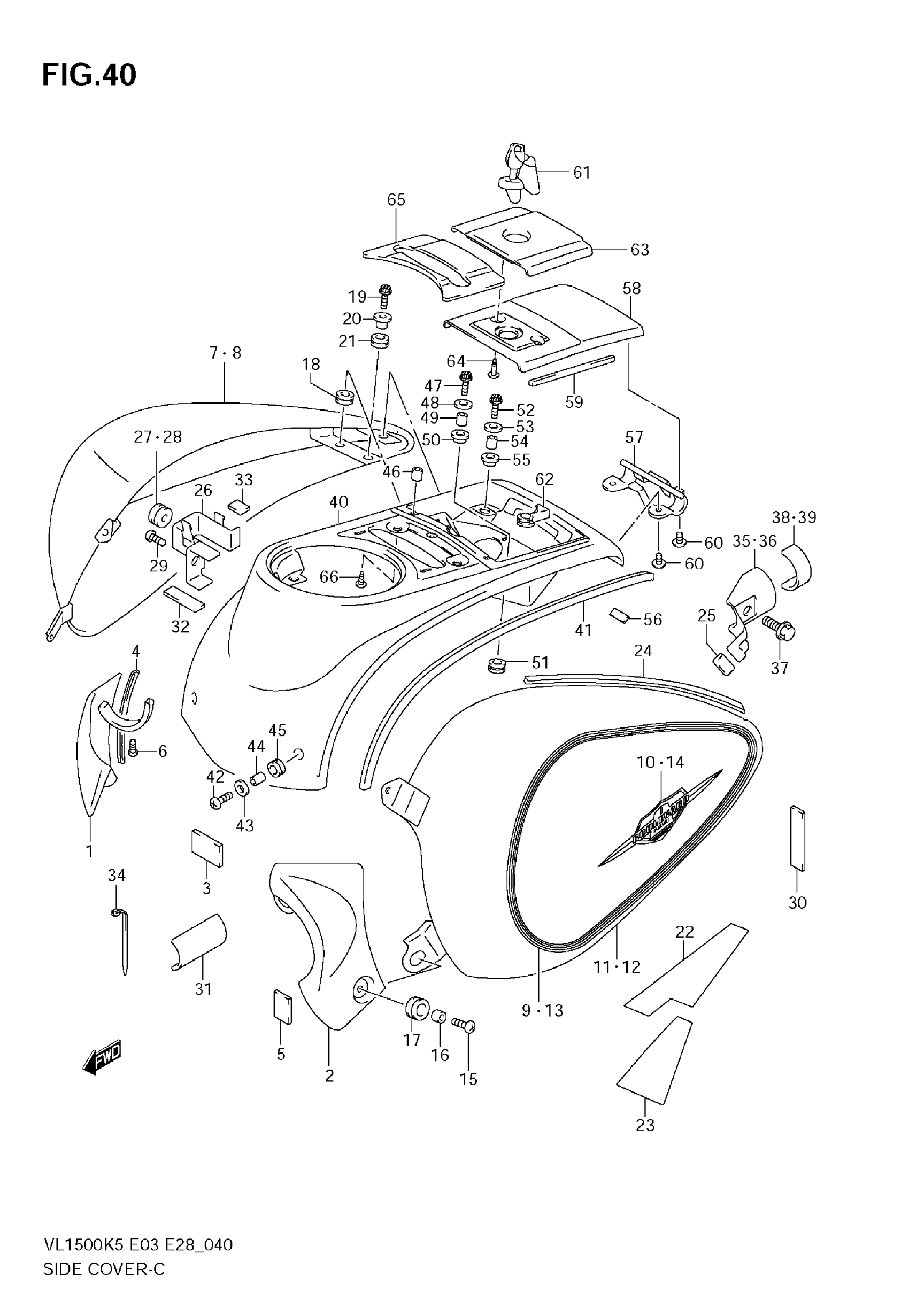

2009 Suzuki VL1500 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME HEAD RH

47510-10F01

1
Out of stock

2

COVER, FRAME HEAD LH

47520-10F02

1
Out of stock

3

CUSHION This part replaces 47829-10F00.

44612-13600

4
Out of stock

4

MOLDING

47514-10F00

2
Out of stock

5

TAPE

47161-10D00

2
Out of stock

6

SCREW

09139-06028

2

$3.58

In stock

7

COVER ASSY, SIDE RH (BLACK)

47800-10F50-YAY

1
Out of stock

8

COVER ASSY, SIDE RH

47800-10F60-NY3

1
Out of stock

8

COVER ASSY, SIDE RH | Includes Item(s) 9 - 9

47800-10F60-AVU

1
Out of stock

9

TAPE, RH | FOR NY3

68135-10FA0-BFB

1
Out of stock

9

TAPE, RH | FOR AVU

68135-10FA0-BFC

1
Out of stock

10

EMBLEM, RH This part replaces 68111-10FA0.

68111-10FA1

1
Out of stock

11

COVER ASSY, SIDE LH (BLACK)

47900-10F50-YAY

1
Out of stock

12

COVER ASSY, SIDE LH

47900-10F60-NY3

1
Out of stock

12

COVER ASSY, SIDE LH | Includes Item(s) 13 - 13

47900-10F60-AVU

1
Out of stock

13

TAPE, LH | FOR NY3

68145-10FA0-BFB

1
Out of stock

13

TAPE, LH | FOR AVU

68145-10FA0-BFC

1
Out of stock

14

EMBLEM, LH This part replaces 68121-10FA0.

68121-10FA1

1
Out of stock

15

SCREW

09139-06030

2
Out of stock

16

SPACER

09180-06260

2
Out of stock

17

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

18

CUSHION,SIDE UP This part replaces 47822-10F00.

47822-10F01

2
Out of stock

19

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

2
Out of stock

20

WASHER

47827-10F00

2
Out of stock

21

CUSHION,SIDE UP This part replaces 47826-10F00.

47826-10F01

2
Out of stock

22

CUSHION, SIDE UPPER RH NO.1

47835-10FA0

1
Out of stock

23

CUSHION, SIDE UPPER RH NO.2

47836-10FA0

1
Out of stock

24

MOLDING, SIDE UPPER LOWER

47837-10FA0

2
Out of stock

25

CUSHION, BRACKET

47166-10FA0

2
Out of stock

26

BRACKET, SIDE COVER RH

47850-10FA0

1
Out of stock

27

CUSHION, RH

09321-10034

1
Out of stock

28

CUSHION

09321-10012

1
Out of stock

29

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

30

TAPE, SHIELD

47164-10FA0

2
Out of stock

31

CUSHION, SIDE FRONT

47165-10FA0

2
Out of stock

32

MOLDING

31812-29F00

2

$6.40

In stock

33

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

1
Out of stock

34

CLAMP

09407-18402

1
Out of stock

35

BRACKET, SIDE UPPER RH

47839-10FA0

1
Out of stock

36

BRACKET, SIDE UPPER LH

47849-10FA0

1
Out of stock

37

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

38

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

1
Out of stock

39

CUSHION, NO.2

47162-10FA0

1
Out of stock

40

COVER, METER

47821-10FA0

1
Out of stock

41

MOLDING

47824-10FB0

2
Out of stock

42

SCREW, FRONT

09139-06030

2
Out of stock

43

WASHER

09160-06036

2
Out of stock

44

SPACER

09180-06256

2
Out of stock

45

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

2
Out of stock

46

CUSHION This part replaces 09321-06013.

09321-06036

2
Out of stock

47

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

2
Out of stock

48

WASHER

09160-06084

2
Out of stock

49

SPACER

09180-06265

2
Out of stock

50

CUSHION,METER C This part replaces 47825-10F00.

47825-10F01

2
Out of stock

51

CUSHION,SIDE UP This part replaces 47822-10F00.

47822-10F01

2
Out of stock

52

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

2
Out of stock

53

WASHER

09160-06084

2
Out of stock

54

SPACER

09180-06256

2
Out of stock

55

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

2
Out of stock

56

CUSHION This part replaces 47829-10F00.

44612-13600

2
Out of stock

57

HINGE, FUEL LID This part replaces 47380-10F00.

47380-10F01

1
Out of stock

58

LID, FUEL INLET

47811-10FA0

1
Out of stock

59

CUSHION, LID

47812-10F00

2
Out of stock

60

SCREW This part replaces 02142-06123.

02142-0612A

4
Out of stock

61

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

62

CUSHION,REAR,L This part replaces 47828-10F00.

47828-10F01

1
Out of stock

63

COVER, FUEL LID

47812-10FA0

1
Out of stock

64

SCREW This part replaces 03541-05123.

03541-0512A

2
Out of stock

65

COVER, METER SWITCH

47822-10FA0

1
Out of stock

66

SCREW This part replaces 03541-05123.

03541-0512A

2
Out of stock
