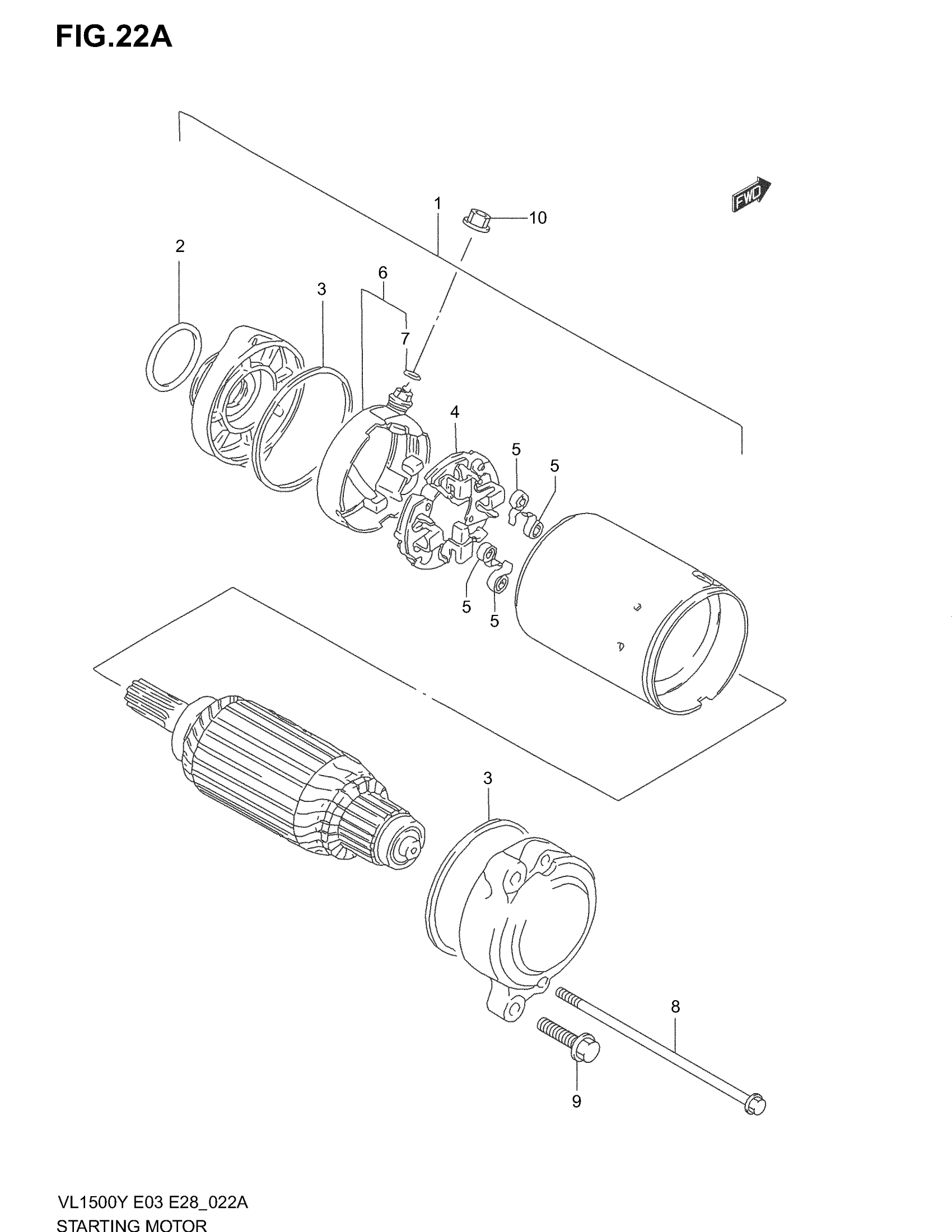

Suzuki VL1500 (2004) STARTING MOTOR (MODEL K3/K4) Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 8 This part replaces 31100-10F00.

31100-38B02

$709.23

2

O RING (D:2.1,ID:34.7) This part replaces 31156-38B00.

09280-35005

$8.17

3

O RING This part replaces 31264-31300.

31264-32E00

$6.29

4

HOLDER SET, BRUSH

31132-38B00

$78.27

5

SPRING, BRUSH

31135-38B00

$6.10

6

TERMINAL SET, BRUSH

31130-38B00

$78.27

7

O RING

31143-49040

$3.50

8

BOLT This part replaces 31281-24B10.

31281-31D00

$9.77

9

BOLT | MODEL K3

01547-06257

$2.01

9

BOLT | MODEL K4

09103-06212

$2.53

10

NUT This part replaces 08361-35068.

08361-3506A

$1.81
