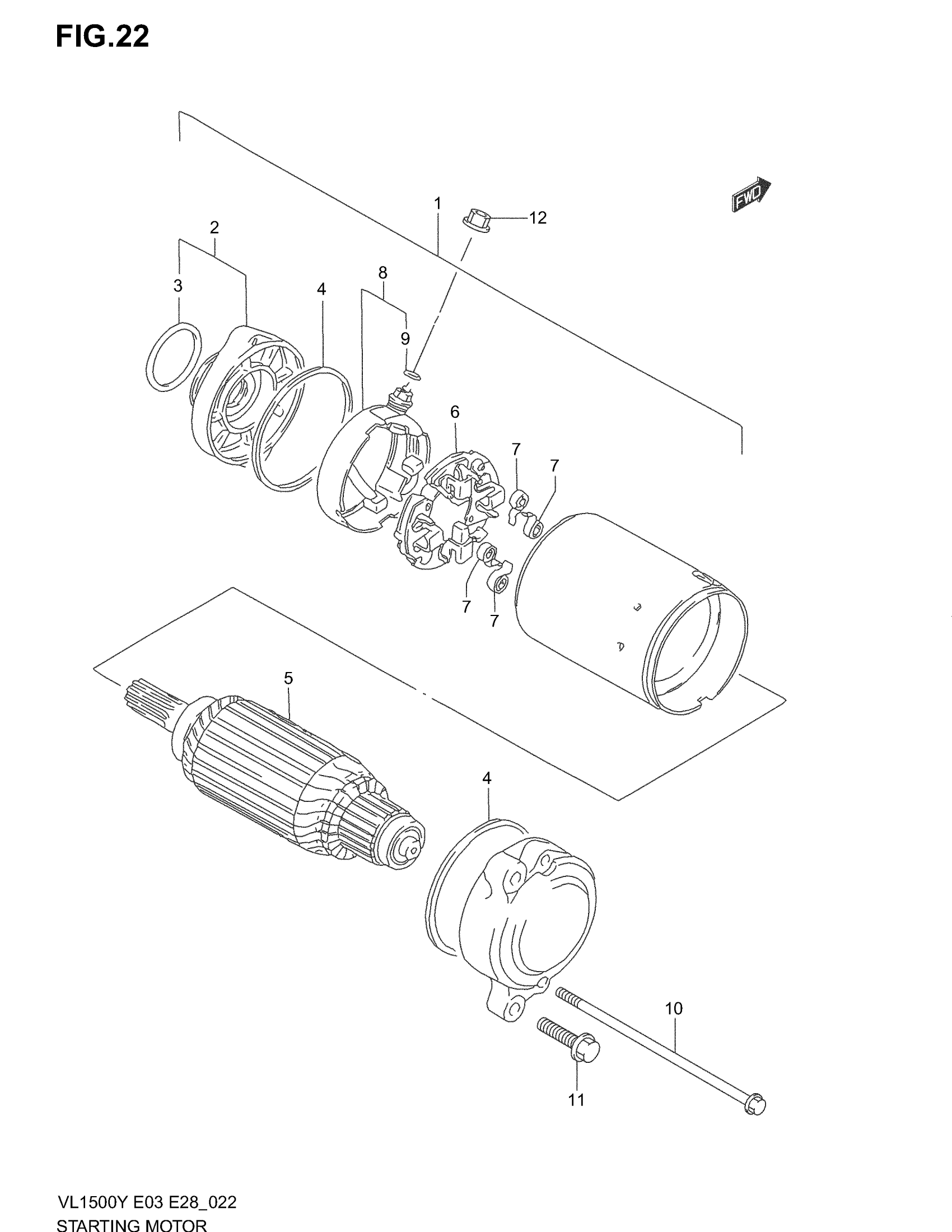

Suzuki VL1500 (2004) STARTING MOTOR (MODEL W/X/Y/K1/K2) Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-38B02

$709.23

2

BRACKET SET, FRONT

31150-38B00

Unavailable

3

O RING (D:2.1,ID:34.7) This part replaces 31156-38B00.

09280-35005

$8.17

4

O RING This part replaces 31264-31300.

31264-32E00

$6.29

5

ARMATURE

31310-38B01

Unavailable

6

HOLDER SET, BRUSH

31132-38B00

$78.27

7

SPRING, BRUSH

31135-38B00

$6.10

8

TERMINAL SET, BRUSH

31130-38B00

$78.27

9

O RING

31143-49040

$3.50

10

BOLT This part replaces 31281-24B10.

31281-31D00

$9.77

11

BOLT

01547-06257

$2.01

12

NUT This part replaces 08361-35068.

08361-3506A

$1.81
