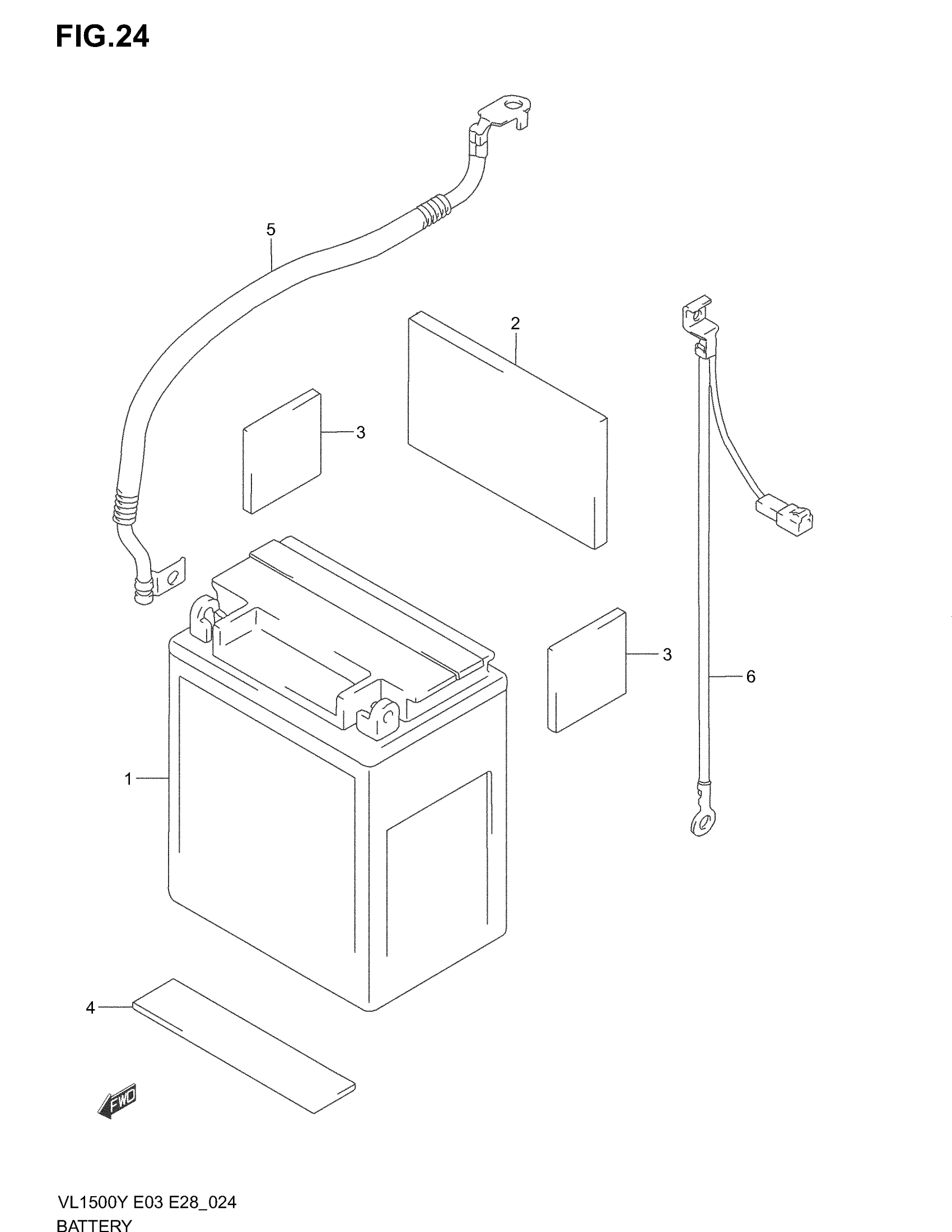

Suzuki VL1500 (2004) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,14AH) | FTH16-BS-1

33610-38B50

$150.75

2

PROTECTOR (50X50X5)

33652-20C00

$2.86

3

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (20X130X3),(50X115X3)

33651-37000

$4.28

4

PROTECTOR (80X27X3) | MODEL W/X/Y/K1

33652-19B00

$5.92

4

CUSHION, BATTERY (30X130X3) | MODEL K2/K3/K4 This part replaces 33652-41B00.

33652-19B00

$5.92

5

WIRE, BATTERY PLUS LEAD

33820-10F00

$47.05

6

WIRE, BATTERY MINUS | MODEL W/X/Y/K1

33860-10F00

Unavailable

6

WIRE, BATTERY MINUS | MODEL K2/K3/K4

33860-10F10

Unavailable
