2004 Suzuki VL1500 Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2004 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

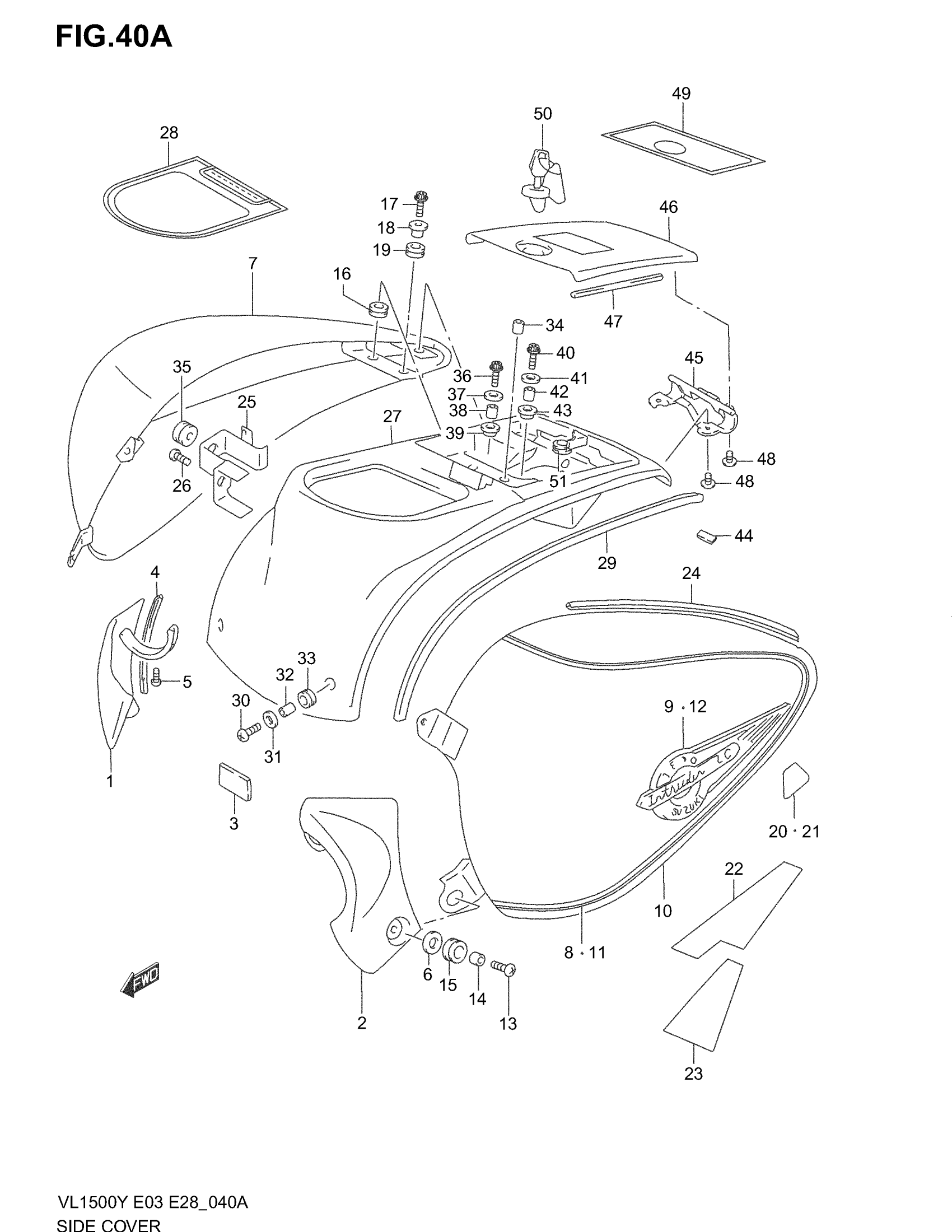

2004 Suzuki VL1500 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME HEAD RH This part replaces 47510-10F00.

47510-10F01

1
Out of stock

2

COVER, FRAME HEAD LH This part replaces 47520-10F01.

47520-10F02

1
Out of stock

3

CUSHION This part replaces 47829-10F00.

44612-13600

4
Out of stock

4

MOLDING

47514-10F00

2
Out of stock

5

SCREW

09139-06028

2

$3.58

In stock

6

.WASHER This part replaces 08322-01063.

08322-0106B

2
Out of stock

7

COVER ASSY,SIDE This part replaces 47800-10F10-33J.

47800-10F20-33J

1
Out of stock

7

COVER ASSY,SIDE This part replaces 47800-10F10-BU6.

47800-10F20-BU6

1
Out of stock

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 8 This part replaces 47800-10F10-BU7.

47800-10F20-BU7

1
Out of stock

8

TAPE,COVER SIDE | FOR 33J This part replaces 68135-10F10-BU8.

68135-10F20-BU8

1
Out of stock

8

NO DESCRIPTION AVAILABLE | FOR BU6 This part replaces 68135-10F10-BU9.

68135-10F20-BU9

1
Out of stock

8

NO DESCRIPTION AVAILABLE | FOR BU7 This part replaces 68135-10F10-BV1.

68135-10F20-BV1

1
Out of stock

9

EMBLEM, RH

68111-10F00

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 47900-10F10-33J.

47900-10F20-33J

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 47900-10F10-BU6.

47900-10F20-BU6

1
Out of stock

10

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 11 This part replaces 47900-10F10-BU7.

47900-10F20-BU7

1
Out of stock

11

TAPE,COVER SIDE | FOR 33J This part replaces 68145-10F10-BU8.

68145-10F20-BU8

1
Out of stock

11

NO DESCRIPTION AVAILABLE | FOR BU6 This part replaces 68145-10F10-BU9.

68145-10F20-BU9

1
Out of stock

11

NO DESCRIPTION AVAILABLE | FOR BU7 This part replaces 68145-10F10-BV1.

68145-10F20-BV1

1
Out of stock

12

EMBLEM, LH

68121-10F00

1
Out of stock

13

SCREW

09139-06030

2
Out of stock

14

SPACER

09180-06260

2
Out of stock

15

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

16

CUSHION,SIDE UP This part replaces 47822-10F00.

47822-10F01

2
Out of stock

17

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

2
Out of stock

18

WASHER

47827-10F00

2
Out of stock

19

CUSHION,SIDE UP This part replaces 47826-10F00.

47826-10F01

2
Out of stock

20

TAPE, SIDE COVER UPPER RH

47838-10F00

1
Out of stock

21

TAPE, SIDE COVER UPPER LH

47848-10F00

1
Out of stock

22

CUSHION, SIDE UPPER RH NO.1

47835-10F00

1
Out of stock

23

CUSHION, SIDE UPPER RH NO.2

47836-10F00

1
Out of stock

24

MOLDING, SIDE UPPER LOWER This part replaces 47837-10F00.

47837-10FA0

2
Out of stock

25

BRACKET, SIDE COVER RH

47850-10F00

1
Out of stock

26

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

27

COVER, METER

47821-10F00

1
Out of stock

28

TAPE, METER COVER

68897-10F10

1
Out of stock

29

MOLDING

47824-10F00

2
Out of stock

30

SCREW, FRONT

09139-06030

2
Out of stock

31

WASHER

09160-06036

2
Out of stock

32

SPACER

09180-06256

2
Out of stock

33

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

2
Out of stock

34

CUSHION This part replaces 09321-06013.

09321-06036

2
Out of stock

35

CUSHION, SIDE

09321-10007

2
Out of stock

36

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

2
Out of stock

37

WASHER

09160-06084

2
Out of stock

38

SPACER

09180-06265

2
Out of stock

39

CUSHION,METER C This part replaces 47825-10F00.

47825-10F01

2
Out of stock

40

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

2
Out of stock

41

WASHER

09160-06084

2
Out of stock

42

SPACER

09180-06256

2
Out of stock

43

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

2
Out of stock

44

CUSHION This part replaces 47829-10F00.

44612-13600

2
Out of stock

45

HINGE, FUEL LID This part replaces 47380-10F00.

47380-10F01

1
Out of stock

46

LID, FUEL INLET

47811-10F00

1
Out of stock

47

CUSHION, LID

47812-10F00

2
Out of stock

48

SCREW This part replaces 02142-06123.

02142-0612A

4
Out of stock

49

TAPE, FUEL LID

68898-10F10

2
Out of stock

50

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

51

CUSHION,REAR,L This part replaces 47828-10F00.

47828-10F01

1
Out of stock
