2004 Suzuki VL1500 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2004 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

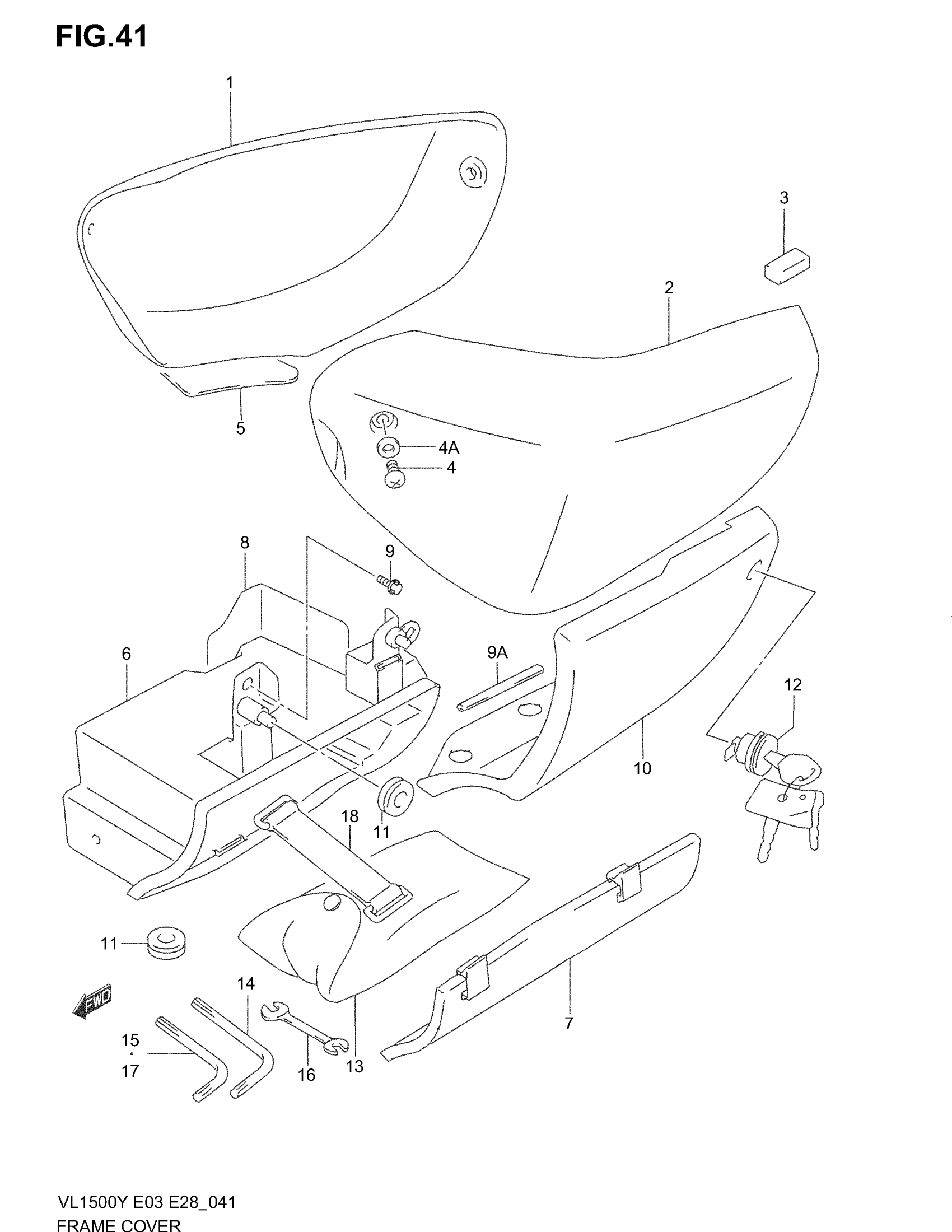

2004 Suzuki VL1500 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (BLACK) | FOR E6M,M4P

47110-10F00-33J

1
Out of stock

1

COVER, FRAME RH (BLACK) | FOR K7D

47110-10F00-019

1
Out of stock

1

COVER, FRAME RH (YELLOW) | FOR K7E

47110-10F00-Y4L

1
Out of stock

1

COVER, FRAME RH (BLACK) | E28 FOR M4R

47110-10F00-Y7L

—
Out of stock

2

COVER, FRAME LH (BLACK) | FOR E6M,M4P

47210-10F00-33J

1
Out of stock

2

COVER, FRAME LH (BLACK) | FOR K7D

47210-10F00-019

1
Out of stock

2

COVER, FRAME LH (YELLOW) | FOR K7E

47210-10F00-Y4L

1
Out of stock

2

COVER, FRAME LH (BLACK) | E28 FOR M4R

47210-10F00-Y7L

—
Out of stock

3

CUSHION

47117-45000

2
Out of stock

4

SCREW

09139-06030

4
Out of stock

4A

WASHER

09160-06094

4
Out of stock

5

SHIELD, FRAME COVER RH

47166-10F00

1
Out of stock

6

BODY, TOOL HOLDER

47431-10F00

1
Out of stock

7

CAP, TOOL HOLDER

47432-10F00

1
Out of stock

8

SHIELD, BODY

47436-10F00

1
Out of stock

9

BOLT

09111-06066

3

$2.85

In stock

9A

MOLDING, LH

47212-10F00

1
Out of stock

10

COVER, TOOL HOLDER

47440-10F00

1
Out of stock

10

COVER, TOOL HOLDER | E33 This part replaces 47400-10831.

47440-10F00

1
Out of stock

11

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

4
Out of stock

12

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

13

TOOL ASSY This part replaces 09800-21016.

09800-21073

1
Out of stock

14

HEXAGON SPANNER, 12

09816-00139

1
Out of stock

15

HEXAGON SPANNER, 4

09816-00103

1
Out of stock

16

SPANNER (8X10)

09813-00027

1
Out of stock

17

HEXAGON SPANNER, 5

09816-00059

1
Out of stock

18

BAND, TOOL

09462-00067

1
Out of stock
