Description

Price

1

STAND, PROP This part replaces 42310-10F01.

42310-10F02

$262.35

2

BOLT

09111-10027

$3.08

3

SHIM

08221-12224

$1.98

4

NUT, REAR This part replaces 08319-21103.

08319-2110A

$2.29

5

SPRING, INNER

09443-14066

$4.97

6

SPRING, OUTER

09443-19012

$5.31

7

PEDAL, BRAKE | MODEL W/X This part replaces 43110-10F00.

43110-10F10

$200.50

7

PEDAL, BRAKE | MODEL Y/K1/K2/K3/K4

43110-10F10

$200.50

8

RUBBER,BRAKE PEDAL This part replaces 43151-10F00.

43151-10F01

$7.02

9

ARM, PEDAL ROD

43120-10F00

Unavailable

10

SPRING

09443-11030

$3.33

11

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

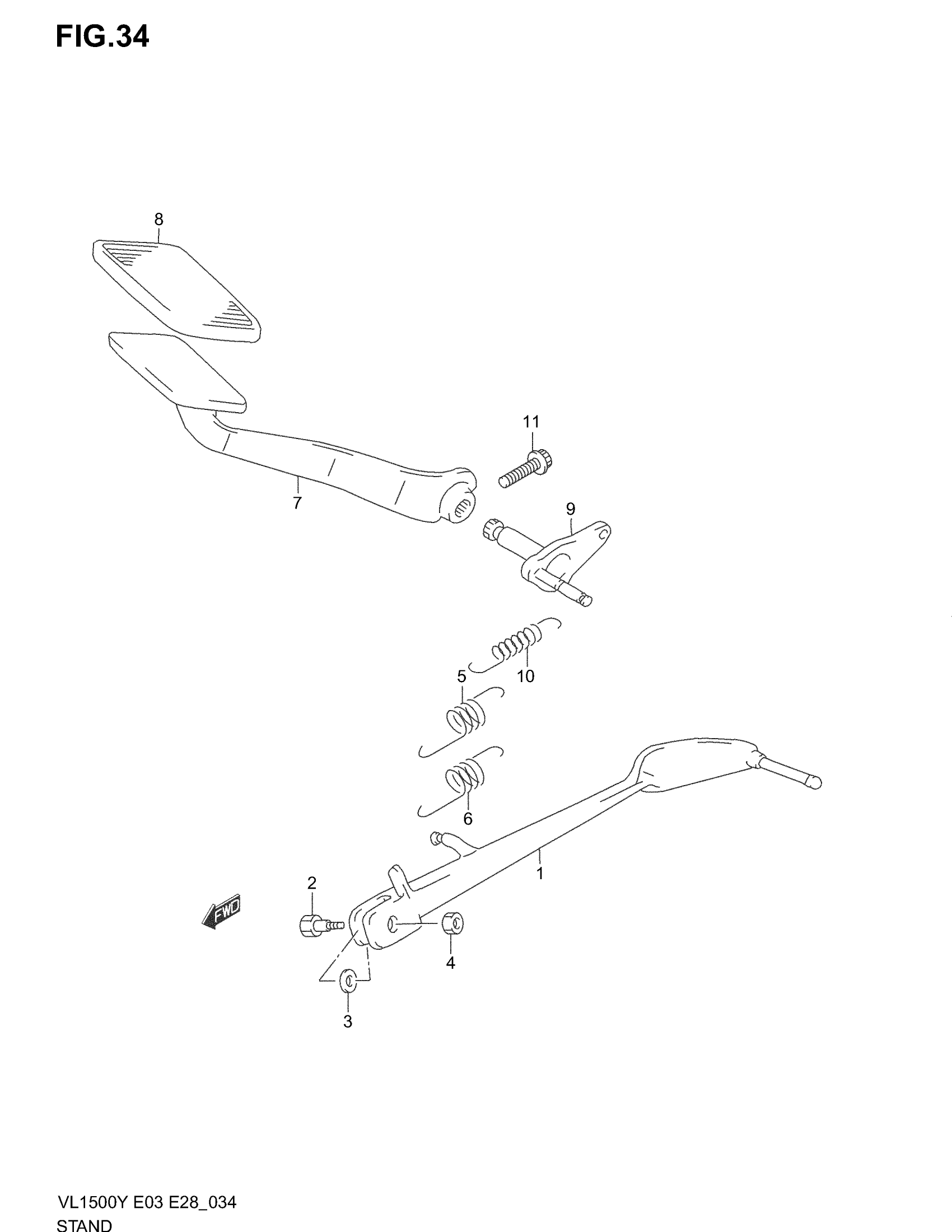

Suzuki VL1500 (2004) STAND Diagram
