2004 Suzuki VL1500 Rear Combination Lamp Diagram

← All diagrams

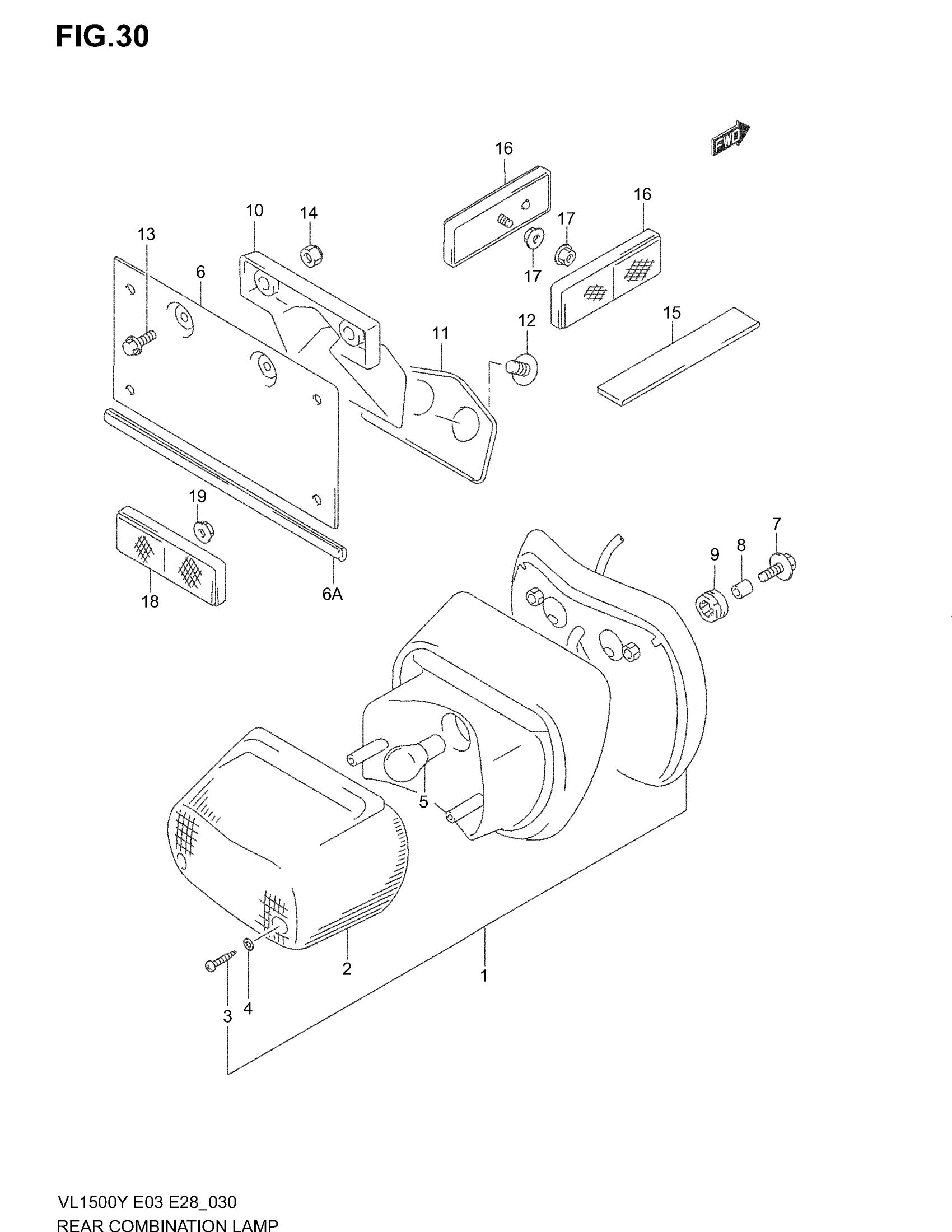

Find the part on the Rear Combination Lamp diagram for your 2004 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki VL1500 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$208.07

In stock

2

LENS

35712-10F30

1

$81.10

In stock

3

SCREW

03211-04207

2

$1.30

In stock

4

GASKET

35627-43010

2

$2.65

In stock

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

6

HOLDER,LICENSE This part replaces 63461-10F30.

63461-10F31

1
Out of stock

6A

1

$9.62

In stock

7

BOLT (6X20)

09116-06115

3

$2.12

In stock

8

SPACER (6.5X10X10)

09180-06310

3
Out of stock

9

CUSHION

09320-09010

3

$2.92

In stock

10

STAY, LICENSE PLATE HOLDER

35928-10F00

1
Out of stock

11

CUSHION, LICENSE PLATE HOLDER

35929-10F00

1
Out of stock

12

2

$2.68

In stock

13

2

$2.53

In stock

14

NUT, LICENSE PLATE

08313-10067

2

$1.97

In stock

15

1

$4.18

In stock

16

2

$36.87

In stock

17

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock

18

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

1
Out of stock

19

NUT This part replaces 08316-10053.

08316-1005A

1
Out of stock
