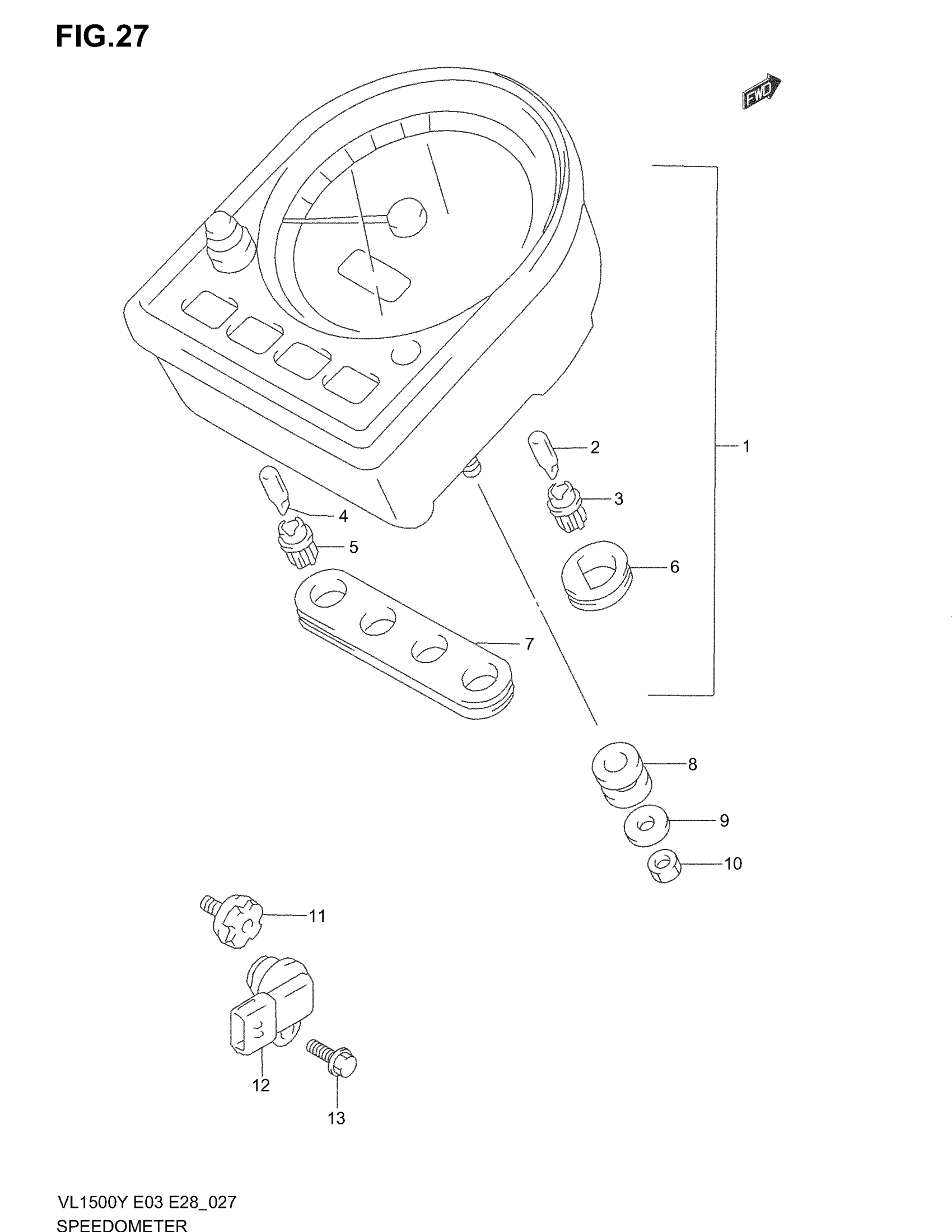

Suzuki VL1500 (2004) SPEEDOMETER (MODEL W) Diagram

SPEEDOMETER

34100-10F20

Unavailable

SPEEDOMETER | E28; Includes Item(s) 2 - 7

34100-10F10

Unavailable

BULB (14V,0.8W)

09471-12189

$5.09

SOCKET | FOR METER

34172-71E70

$8.21

BULB (12V,1.7W)

09471-12100

$3.78

SOCKET | FOR ILLUM

34173-19D00

$21.03

BLIND, CAP

34198-02F00

Unavailable

BLIND, CAP

34198-10F00

Unavailable

CUSHION, METER NO.1 This part replaces 34996-45720.

34189-32B00

$6.53

WASHER (5.5X16X1.2)

09160-05037

$1.49

NUT This part replaces 08310-00053.

08310-0005A

$1.83

ROTOR, SPEED

34981-10F00

$28.43

SENSOR, SPEED

34990-10F00

$178.92

BOLT (6X16)

09106-06073

$2.38
