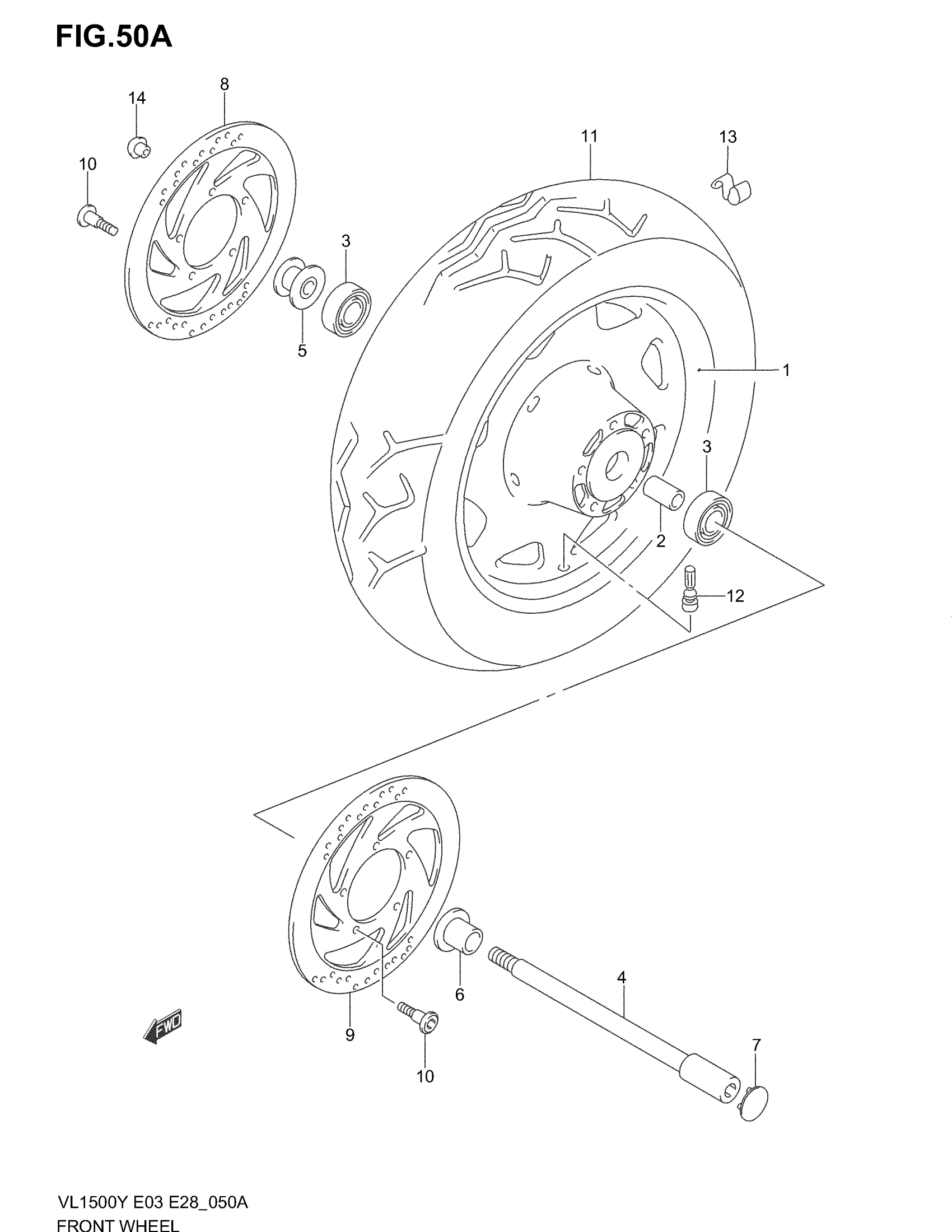

Suzuki VL1500 (2004) FRONT WHEEL (MODEL K2/K3/K4) Diagram

#

Description
Price

1

WHEEL, FRONT (MT3.50X16) (SILVER)

54111-10F20-YAA

Unavailable

2

SPACER, HUB BEARING

54731-10F00

$22.82

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

AXLE, FRONT

54711-10F01

$140.58

5

SPACER, AXLE RH

54740-10F00

$30.35

6

SPACER, AXLE LH

54740-32C00

$20.82

7

CAP, LH

54792-38B00

$24.87

8

DISC, FRONT BRAKE RH

59211-10F10

Unavailable

9

DISC, FRONT BRAKE LH

59221-10F10

Unavailable

10

BOLT, DISC

09106-08148

$4.33

11

TIRE, FRONT (150/80-16 71H) (BRIDGESTONE) This part replaces 55110-10F00.

55110-10F01

Unavailable

12

VALVE ASSY, WHEEL RIM TR412

43130-24A00

$8.10

13

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

$6.57

13

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

$4.02

13

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

$4.69

14

CAP, AXLE RH

54791-38B01

$4.53
