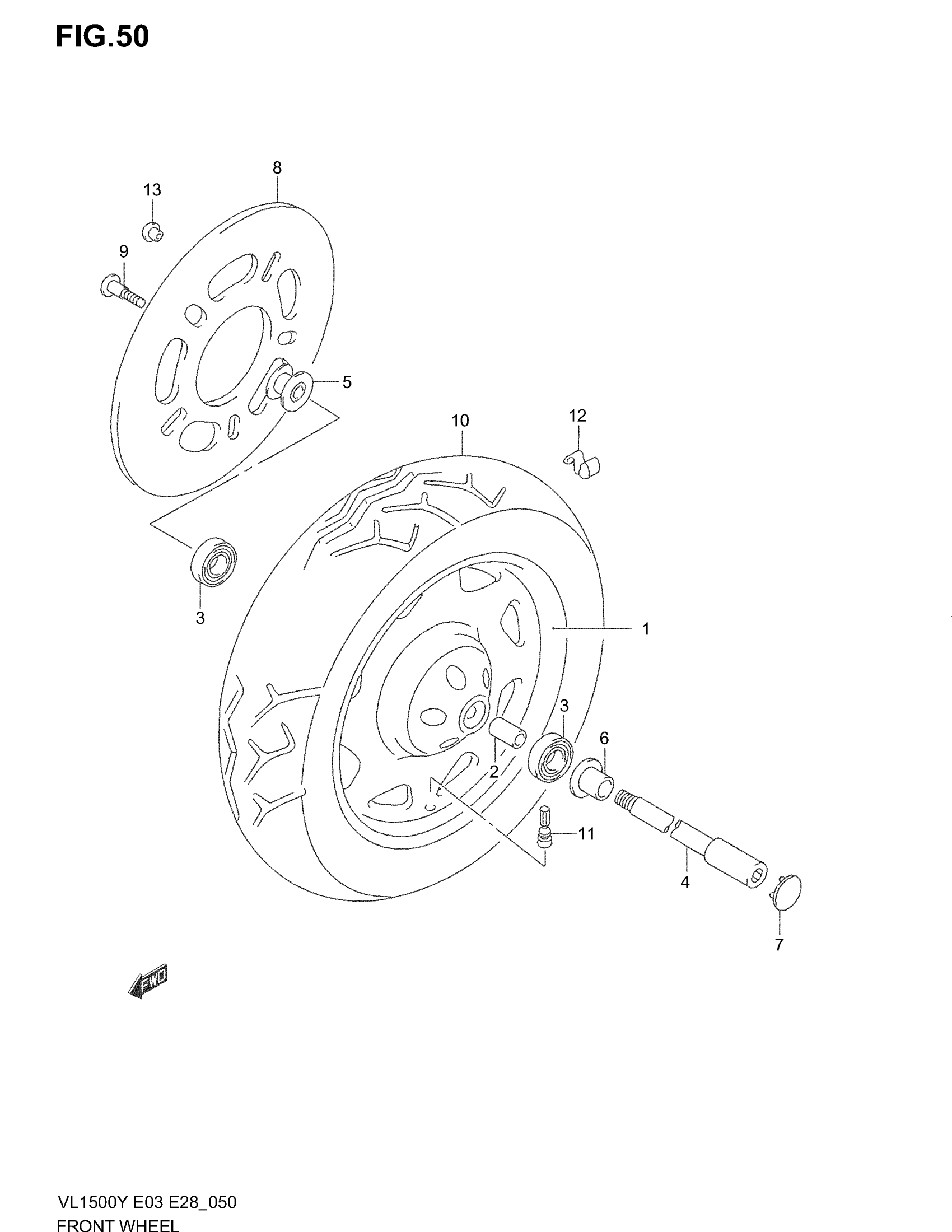

Suzuki VL1500 (2004) FRONT WHEEL (MODEL W/X/Y/K1) Diagram

#

Description
Price

1

WHEEL, FRONT (MT3.50X16) (SILVER) | MODEL W/X

54111-10F00-12R

Unavailable

1

WHEEL, FRONT (MT3.50X16) (SILVER) | MODEL Y/K1

54111-10F10-12R

Unavailable

2

SPACER, HUB BEARING

54731-10F00

$22.82

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

AXLE, FRONT

54711-10F01

$140.58

5

SPACER, AXLE RH

54740-10F00

$30.35

6

SPACER, AXLE LH

54740-32C00

$20.82

7

CAP, LH

54792-38B00

$24.87

8

DISC, FRONT BRAKE RH

59211-10F00

Unavailable

9

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.33

10

TIRE, FRONT (150/80-16 71H) (BRIDGESTONE) This part replaces 55110-10F00.

55110-10F01

Unavailable

11

VALVE ASSY, WHEEL RIM TR412

43130-24A00

$8.10

12

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

$6.57

12

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

$4.02

12

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

$4.69

13

CAP, AXLE RH

54791-38B01

$4.53
