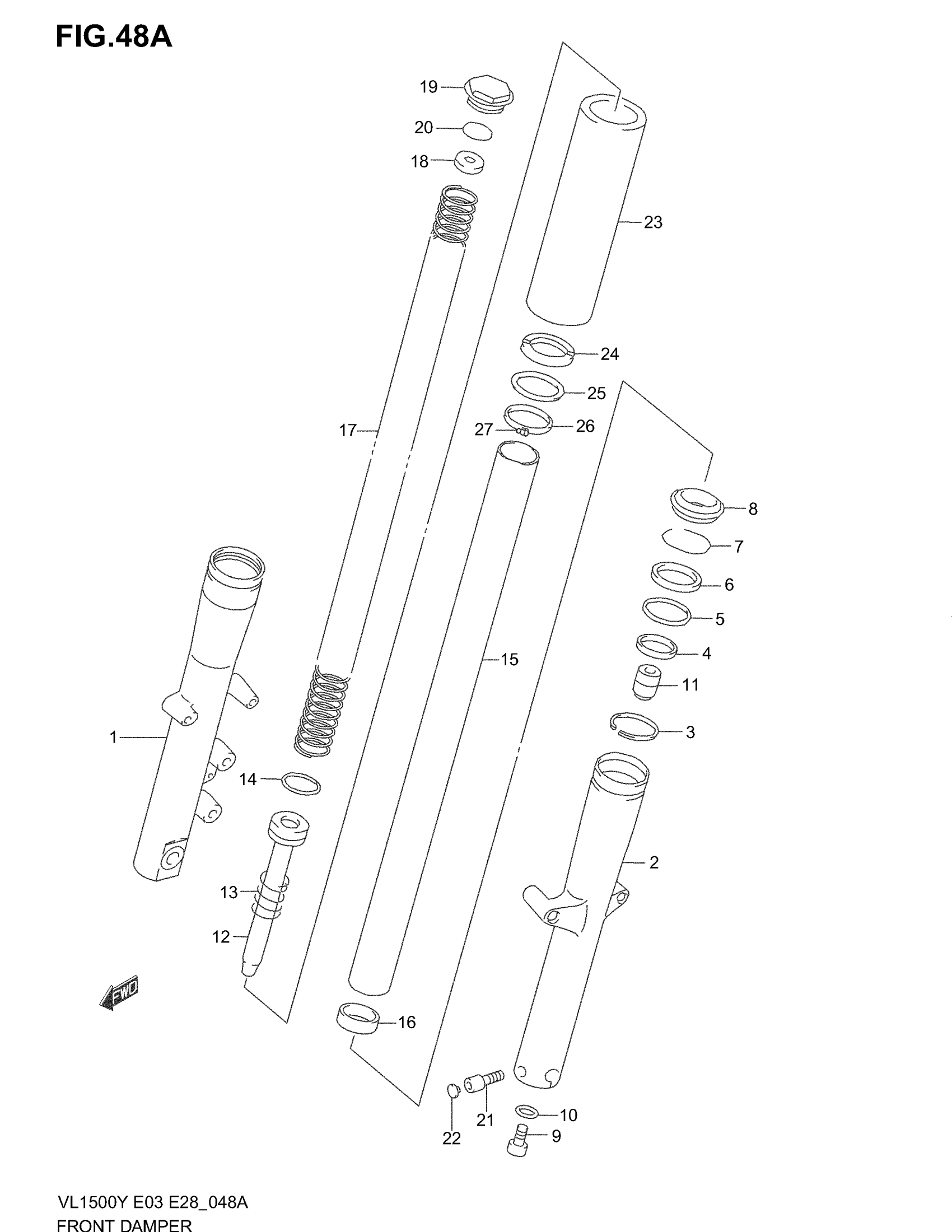

Find the part on the Front Damper diagram for your 2004 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki VL1500 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, FRONT FORK RH

51103-10F40

1
Out of stock

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 21

51104-10F40

1
Out of stock

1

TUBE, OUTER RH

51131-10F40

1
Out of stock

2

TUBE, OUTER LH

51141-10F40

1
Out of stock

3

GUIDE, CASE

51469-10F00

2
Out of stock

4

BUSH, GUIDE

51152-11D60

2
Out of stock

5

SPACER, SEAL

51168-38B00

2
Out of stock

6

SEAL, OIL

51153-08D00

2
Out of stock

7

RING

51556-38B00

2
Out of stock

8

SEAL, DUST

51571-47D50

2
Out of stock

9

.BOLT, CENTER This part replaces 51147-42AA0.

51147-06F10

2
Out of stock

10

GASKET

51148-36011

2
Out of stock

11

PIECE, OIL LOCK

51195-10F00

2
Out of stock

12

PIPE, SEAT

51146-10F00

2
Out of stock

13

SPRING

51177-10F00

2
Out of stock

14

RING

51196-47D00

2
Out of stock

15

TUBE, INNER

51110-10F20

2
Out of stock

16

BUSH, SLIDE This part replaces 51121-10F00.

51121-42E00

2
Out of stock

17

SPRING, FRONT

51171-10F00

2
Out of stock

18

BOLT, INNER

51353-10F00

2
Out of stock

19

BOLT, FORK

51351-38B00

2
Out of stock

20

O RING

51117-38B00

2
Out of stock

21

BOLT, LH

51166-10F00

1
Out of stock

22

CAP

09250-06009

1

$3.38

In stock

23

CASE, UNDER

51464-10F00

2
Out of stock

24

SEAT, RUBBER

51468-10F00

2
Out of stock

25

WASHER

51467-10F00

2
Out of stock

26

SPACER

51465-10F00

2
Out of stock

27

BOLT

51466-10F00

2
Out of stock
