1988 Yamaha VK540 (VK540M) Meter Diagram

← All diagrams

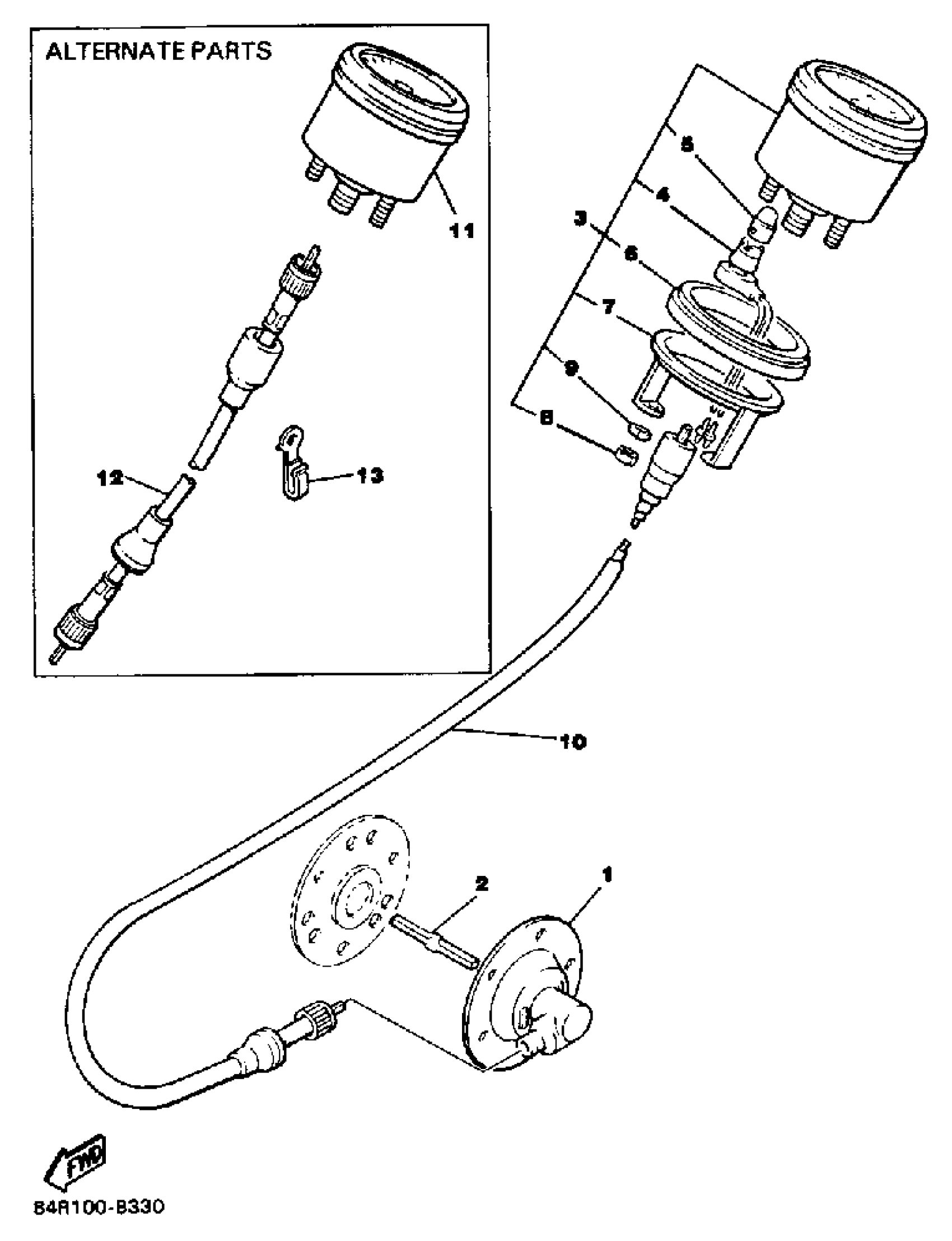

Find the part on the Meter diagram for your 1988 Yamaha VK540 (VK540M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha VK540 (VK540M) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER GEAR HOUSING COMP

83R-47700-00-00

—

$147.58

In stock

2

JOINT

8K4-47715-00-00

1

$4.60

In stock

3

. SPEEDOMETER ASSY (MILE/H)

80V-83510-40-00

1
Out of stock

4

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

7

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

TACHOMETER CABLE ASSY

8H4-83560-00-00

1

$55.71

In stock

11

TACHOMETER ASSEMBLY

8W0-83540-00-00

1
Out of stock

12

TACHOMETER CABLEASSEMBLY

8H6-83560-00-00

1
Out of stock

13

CLAMP

90465-08135-00

1
Out of stock
