1988 Yamaha VK540 (VK540M) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1988 Yamaha VK540 (VK540M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

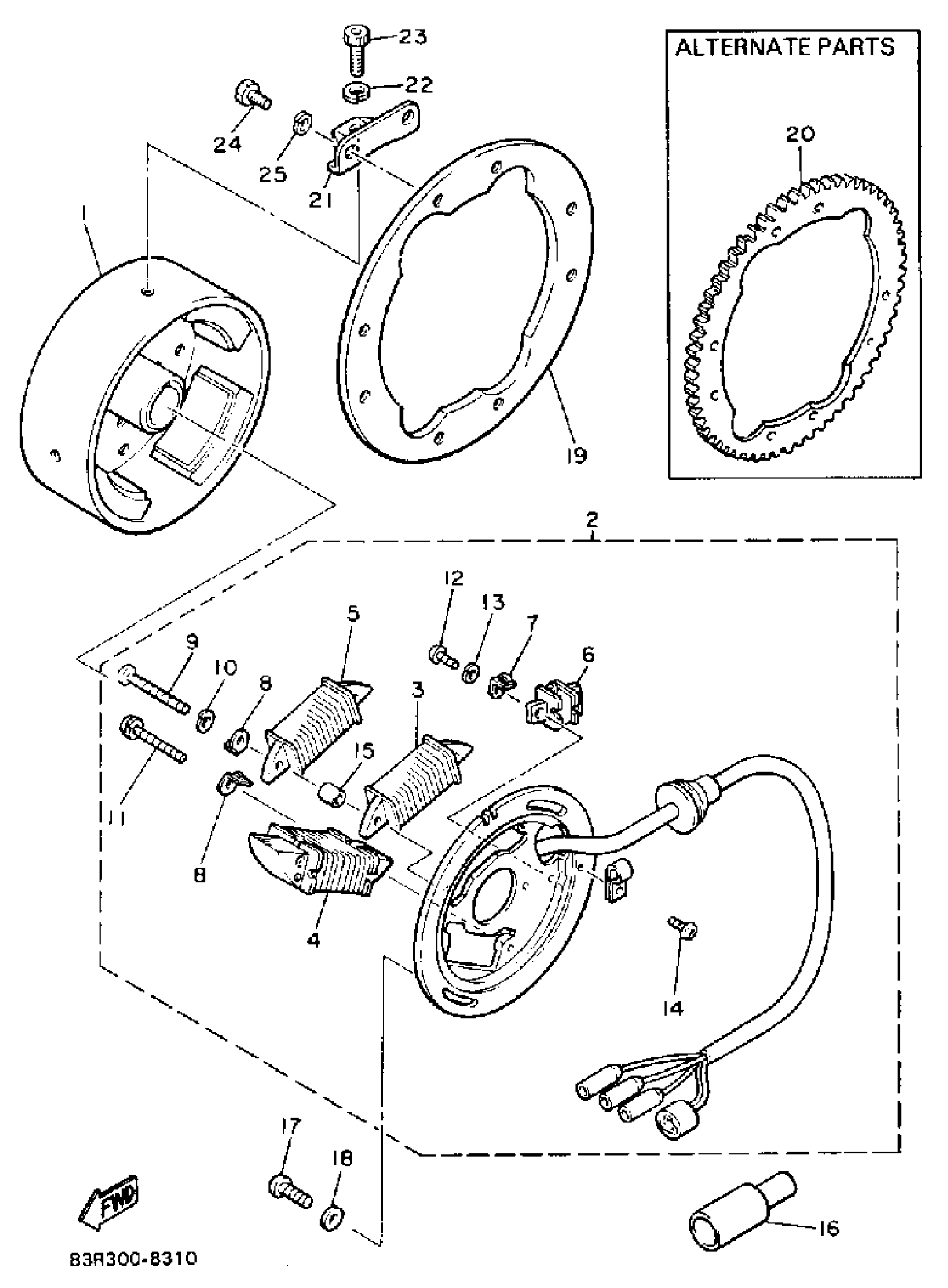

1988 Yamaha VK540 (VK540M) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

83R-85550-M0-00

1
Out of stock

2

BASE ASSY

83R-85560-M0-00

1

$269.29

In stock

3

COIL, CHARGE

81L-85520-M0-00

—

$94.88

In stock

4

COIL, LIGHTING 1

81L-81313-M0-00

1

$61.95

In stock

5

COIL, LIGHTING 2

81L-81314-M0-00

—

$95.42

In stock

6

PULSER ASSY

8R4-85580-M0-00

—

$148.80

In stock

7

. TERMINAL, EARTH 1

8R4-85568-M0-00

1
Out of stock

8

. TERMINAL, EARTH 2

8R4-85569-M0-00

1
Out of stock

9

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

SCREW, WITH WASHER(81E)

90159-05129-00

1
Out of stock

12

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

15

COLLAR (1M1)

90387-06553-00

1
Out of stock

16

COVER, CONNECTER

8Y0-82599-00-00

—
Out of stock

17

SCREW, BIND (705)

98980-06016-00

—
Out of stock

18

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock

19

GEAR, RING

8H8-81891-00-00

1
Out of stock

20

STAY, RING GEAR

8H8-81895-00-00

1
Out of stock

21

STAY, RING GEAR

8H8-81895-00-00

1
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

1
Out of stock

24

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
