1988 Yamaha VK540 (VK540M) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1988 Yamaha VK540 (VK540M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

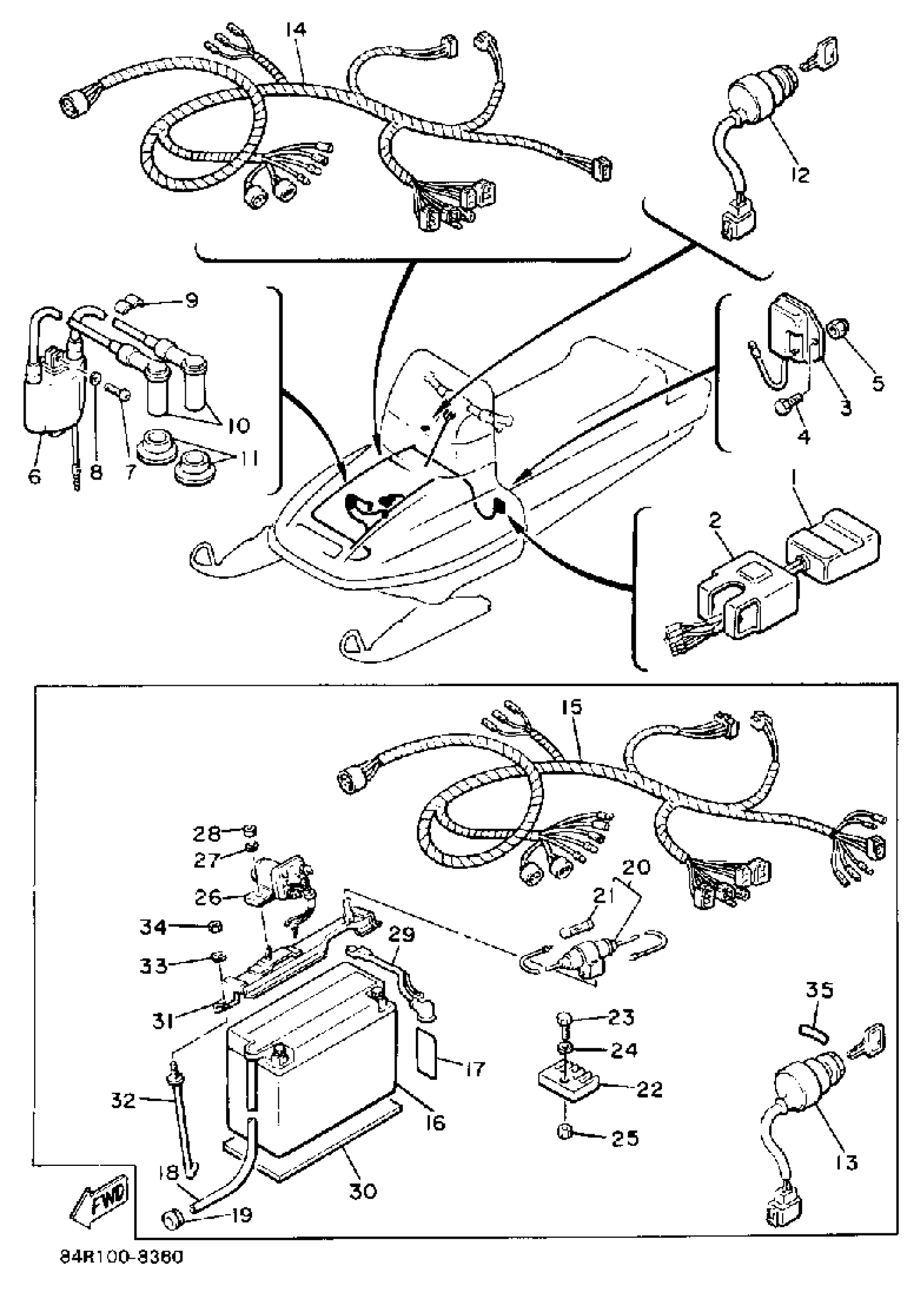

1988 Yamaha VK540 (VK540M) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSEMBLY

81E-85540-M0-00

1
Out of stock

2

BAND

2A7-85546-00-00

—
Out of stock

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

4

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1
Out of stock

5

NUT, NYLON

95707-06300-00

1
Out of stock

6

IGNITION COIL ASSY

85T-82310-06-00

1
Out of stock

7

SCREW PAN HEAD

98580-06020-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1
Out of stock

9

CLAMP, CORD

861-82361-00-00

—
Out of stock

10

PLUG CAP ASSY

85G-82370-20-00

1
Out of stock

11

SEAL

8G5-82372-00-00

1
Out of stock

12

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

13

MAIN SWITCH ASSY

8K1-82510-21-00

—
Out of stock

14

WIRE HARNESS ASSY

84R-82590-20-00

—
Out of stock

15

WIRE HARNESS ASSEMBLY

84R-82590-50-00

1
Out of stock

16

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

1
Out of stock

17

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock

18

HOSE (L1500)

90445-084J0-00

—
Out of stock

19

GROMMET (461)

90480-12067-00

—
Out of stock

20

FUSE HOLDER ASSEMBLY

2J2-82150-10-00

1
Out of stock

21

FUSE

682-82151-02-00

1
Out of stock

22

RECTIFIER ASSY (RXKING,RXS)

3HB-H1970-01-00

1
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

24

WASHER, SPRING

92995-06100-00

1
Out of stock

25

NUT, HEXAGON

95380-06600-00

1
Out of stock

26

. STARTER RELAY ASSY

8J9-81940-10-00

1
Out of stock

27

WASHER, SPRING

92995-06100-00

1
Out of stock

28

NUT, HEXAGON

95380-06600-00

1
Out of stock

29

WIRE, PLUS LEAD

3LD-82115-00-00

1
Out of stock

30

SEAT, BATTERY

84N-82122-00-00

—
Out of stock

31

PLATE BATTERYFITTING

83R-82136-00-00

1
Out of stock

32

SCREW, FITTING

8K1-82133-00-00

1
Out of stock

33

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

34

NUT, NYLON

95707-06300-00

1
Out of stock

35

INDICAT0R 1

8V0-77741-20-00

—
Out of stock
