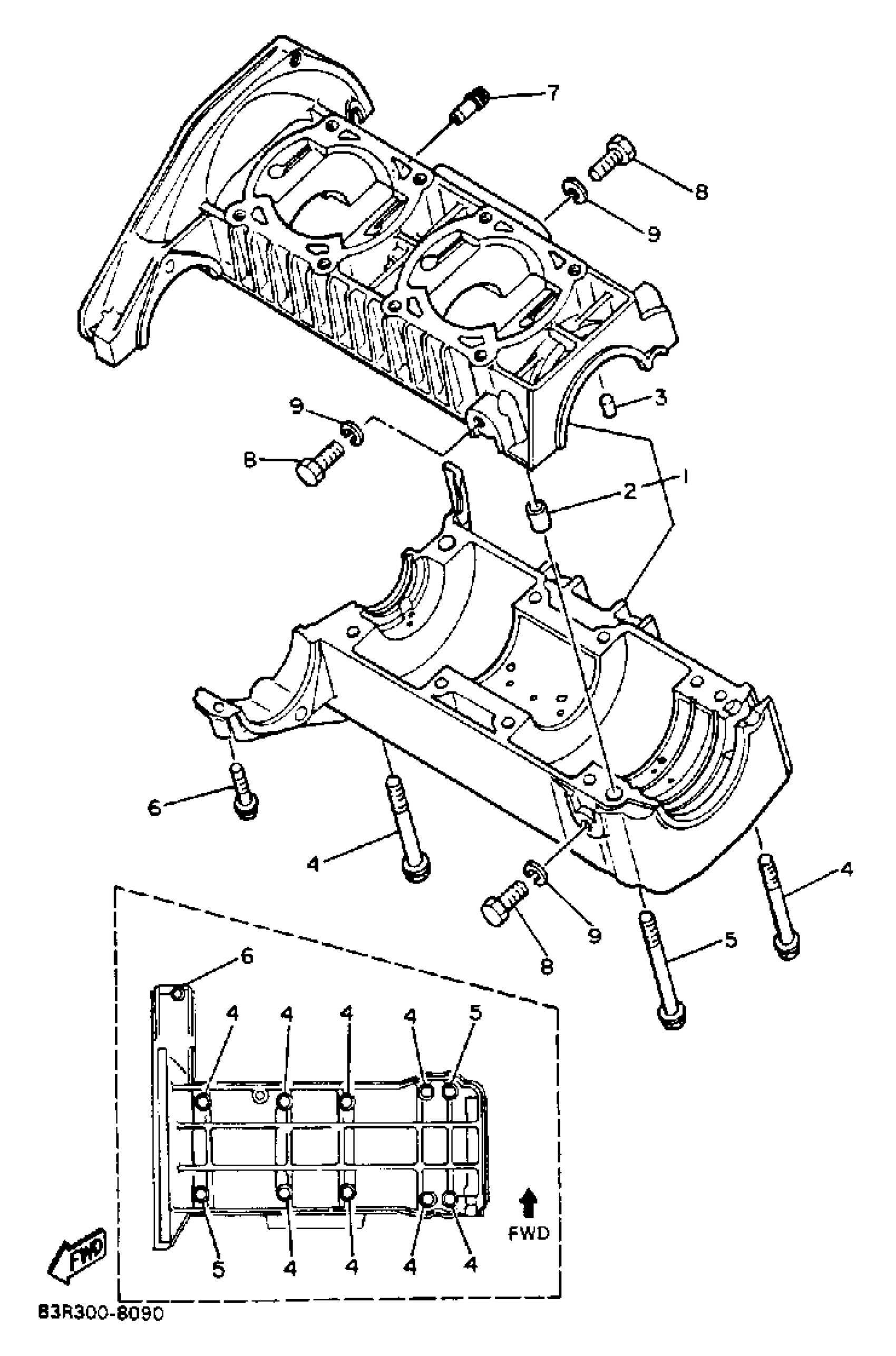

Yamaha VK540EN (VK540) 1989 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8H8-15109-08-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

PIN, DOWEL (8H1)

93604-07141-00

$1.29

4

BOLT, FLANGE

95817-08075-00

$3.32

5

BOLT, FLANGE(8BN)

95817-08085-00

$3.03

6

BOLT, FLANGE

95817-06030-00

$3.65

7

JOINT, BREATHER

J38-11116-00-00

$2.73

8

BOLT, HEXAGON

97013-08020-00

$1.43

9

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23
