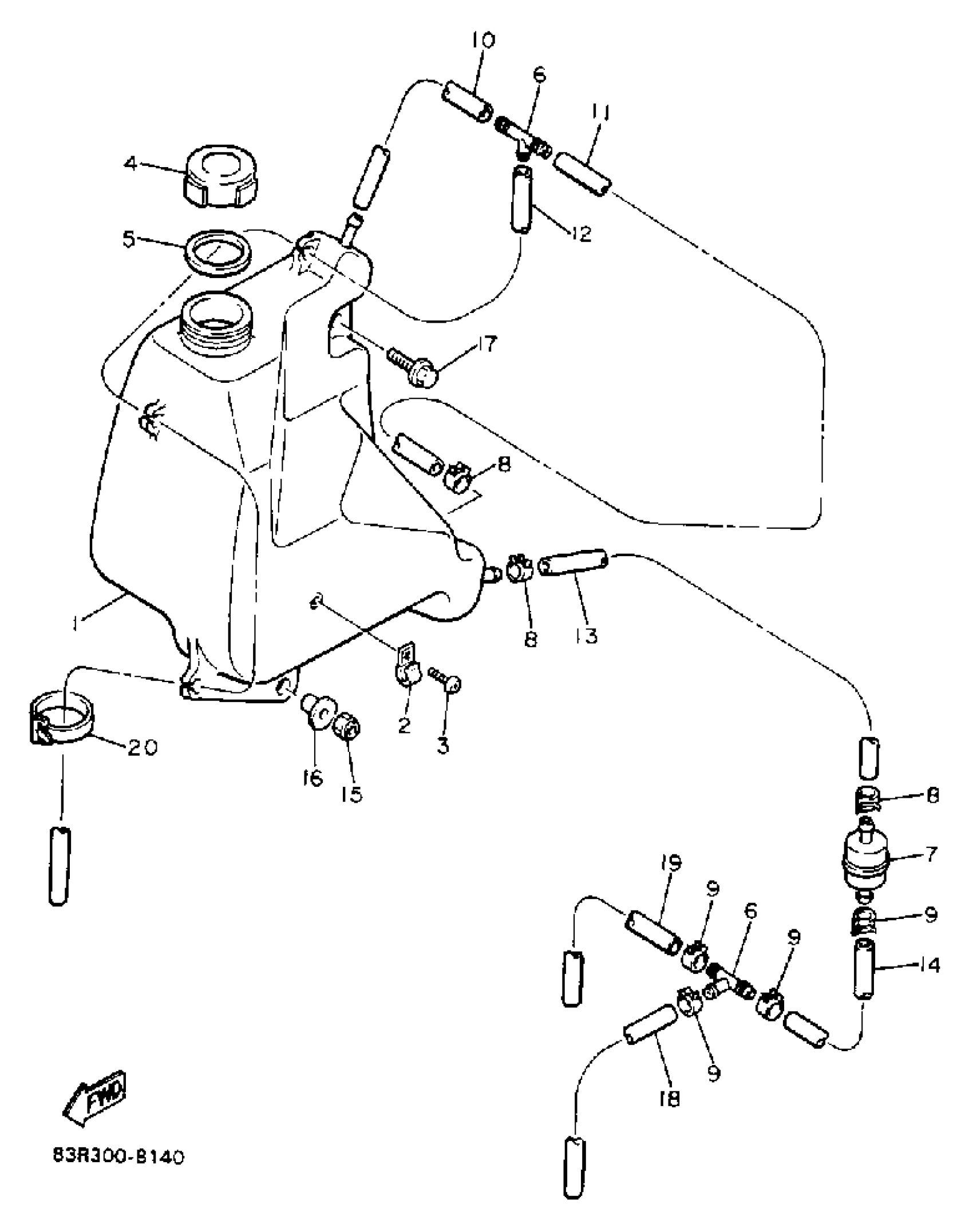

Yamaha VK540EN (VK540) 1989 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

83R-21751-00-00

Unavailable

2

CLAMP(51Y)

90465-08277-00

Unavailable

3

SCREW, BIND(1JK)

98980-06010-00

$5.47

4

BODY, CAP

8LU-21771-00-00

$23.45

5

GASKET, TANK (867)

90430-31003-00

$7.24

6

PIPE, JOINT

801-24376-00-00

Unavailable

7

HOUSING STRAINER ASSY

8G8-13410-00-00

$21.27

8

CLIP (7K7)

90467-11044-00

$4.89

9

CLIP (8A1)

90467-09026-00

$2.55

10

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.20

11

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

13

HOSE

91A30-07036-00

Unavailable

14

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.20

15

NUT, SELF-LOCKING

95617-06100-00

$2.17

16

COLLAR(50M)

90387-087L0-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

19

HOSE

90446-09282-00

Unavailable

20

BAND

80L-26397-00-00

Unavailable
