Description

Price

1

HEADLIGHT UNIT ASSY

84R-8430A-A0-00

$177.78

2

. SPRING, SCREW

51L-84332-00-00

$3.38

3

HOLDER

3AJ-8431U-00-00

$8.22

4

. NUT, ADJUSTING

51L-84334-00-00

$8.45

5

. SPRING, REFLECTOR

36Y-84324-00-00

Unavailable

6

BULB, HEADLIGHT

8V0-84314-10-00

$73.23

7

COVER, SOCKET

36Y-84397-00-00

$21.85

8

COLLAR, BODY FITTING

498-84145-60-00

$6.52

9

DAMPER, HEAD LAMP B

498-84164-60-00

$5.93

10

DAMPER, HEAD LAMP A

498-84163-60-00

$5.68

11

GEAR UNIT ASSY

83R-8430M-00-00

$28.00

12

SCREW, TAPPING(4HP)

97707-40616-00

$1.23

13

KNOB ASSY

26H-8432M-00-00

$33.78

14

BOLT (8K4)

90101-08499-00

$21.95

15

WASHER(6TA)

92907-08600-00

$2.52

16

GROMMET

36Y-84354-00-00

Unavailable

17

WASHER, PLATE (5J0)

90201-085E6-00

$5.69

18

CORD, HEADLIGHT

8AT-84359-00-00

$42.85

19

BAND, SWITCH CORD

437-83936-01-00

$4.63

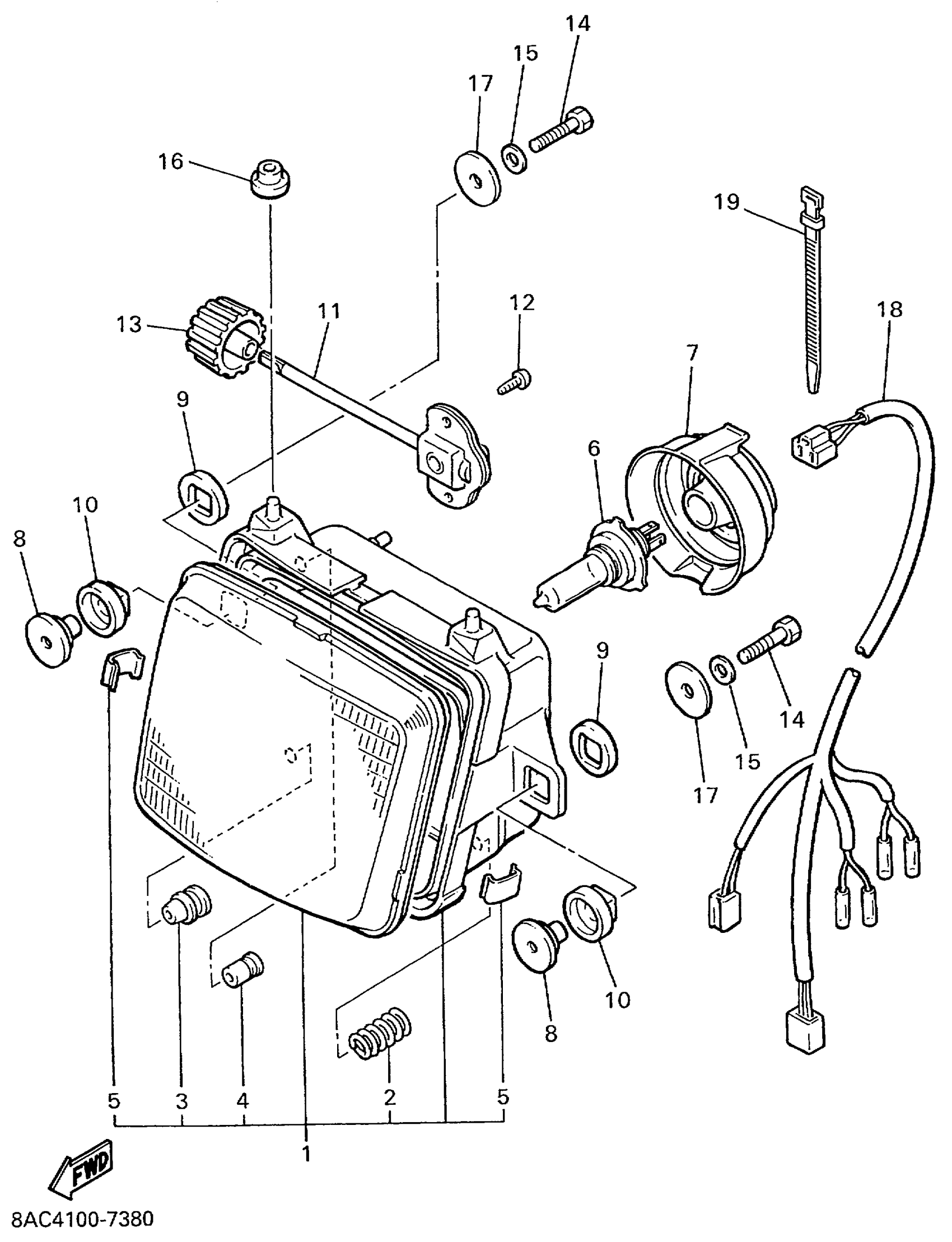

Yamaha VK540EC (VK540 III) 8AC6 1999 HEADLIGHT Diagram
