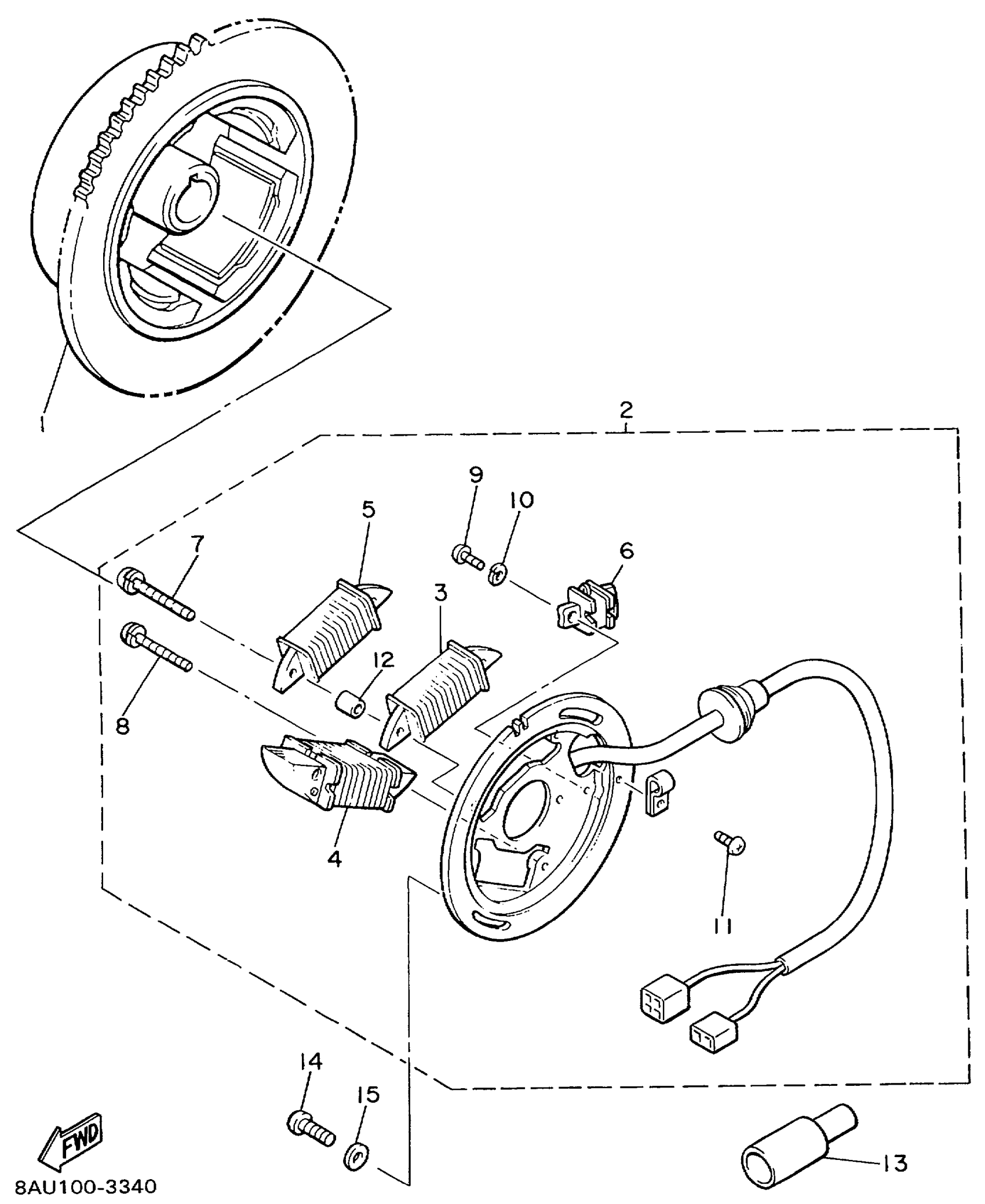

Yamaha VK540EC (VK540 III) 8AC6 1999 GENERATOR Diagram

ROTOR ASSY

8AT-85550-01-00

$403.52

BASE ASSY

8AT-85560-10-00

Unavailable

COIL, CHARGE

81L-85520-M0-00

$94.88

COIL, LIGHTING 1

81L-81313-M0-00

$61.95

COIL, LIGHTING 2

81L-81314-M0-00

$95.42

PULSER ASSY

8R4-85580-M0-00

$148.80

SCREW, WITH WASHER(81E)

90159-05130-00

$1.49

SCREW, WITH WASHER(81E)

90159-05129-00

Unavailable

SCREW, PAN HEAD

98511-04012-00

Unavailable

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

SCREW, PAN HEAD (713)

98580-04008-00

$4.54

COLLAR (1T2)

90387-07598-00

$4.83

COVER, CONNECTER

8Y0-82599-00-00

$2.45

SCREW, BINDING

98907-06016-00

$7.14

WASHER, PLATE 6261117600

90201-06043-00

Unavailable
