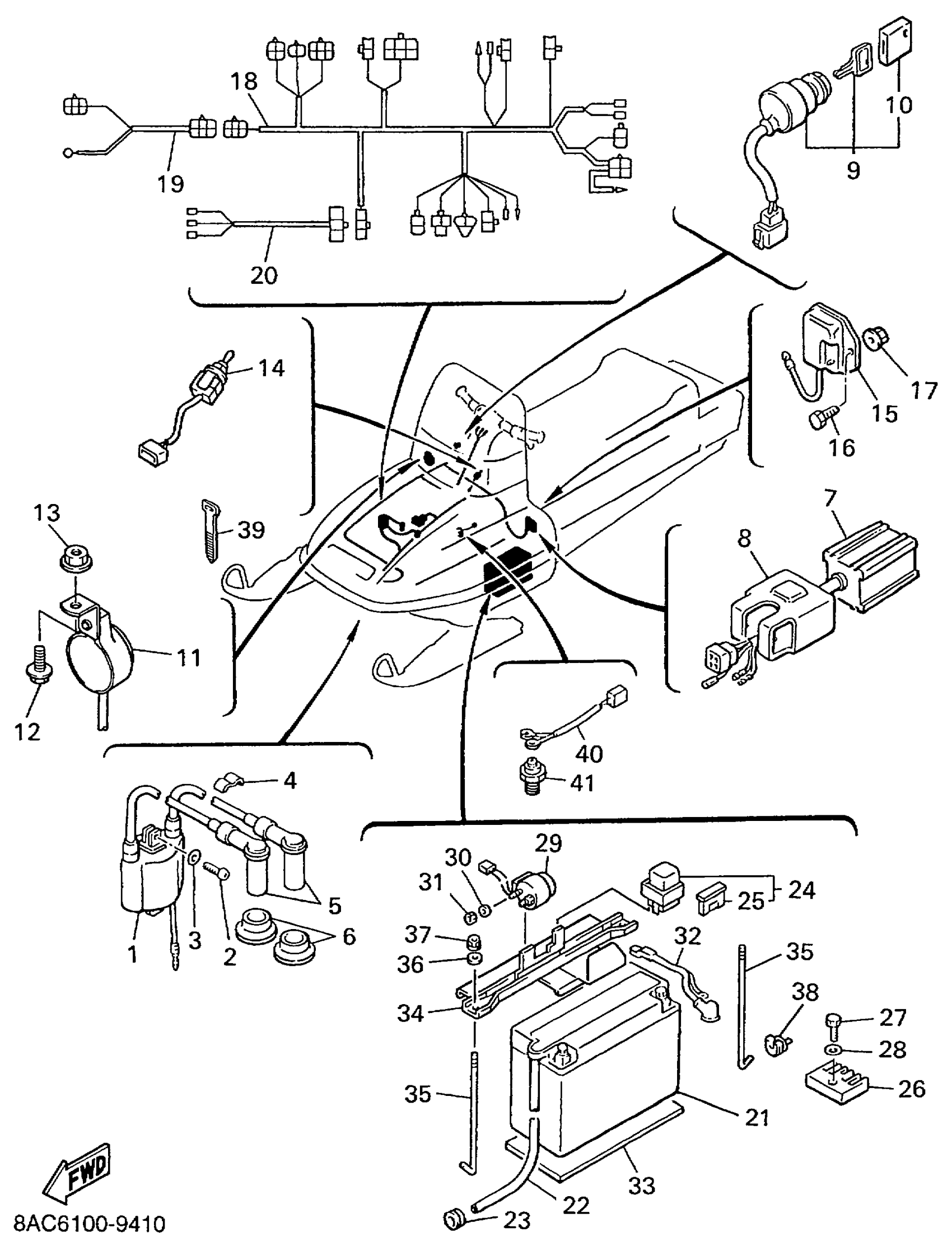

Yamaha VK540EC (VK540 III) 8AC6 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8AB-82310-07-00

Unavailable

2

SCREW, WITH WASHER

97985-06220-00

$3.26

3

WASHER, PLAIN (646)

92990-06600-00

$2.43

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

85G-82370-20-00

$27.52

6

SEAL

8G5-82372-00-00

$4.43

7

C.D.I. UNIT ASSY

8AU-85540-00-00

$189.73

8

BAND

2A7-85546-00-00

Unavailable

9

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

10

CAP, KEY

526-82579-00-00

$6.42

11

BUZZER

87L-83383-01-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$1.49

13

NUT,SELF-LOCKING

95607-06200-00

$10.09

14

SWITCH

8JD-82917-00-00

Unavailable

15

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

16

BOLT(8CP)

97017-06014-00

Unavailable

17

NUT, NYLON

95707-06300-00

Unavailable

18

WIRE HARNESS ASSY

8AC-82590-00-00

Unavailable

19

WIRE, SUB LEAD

8AC-82509-00-00

Unavailable

20

CORD, TAIL LIGHT

8AC-84717-01-00

Unavailable

21

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

$151.03

22

PIPE

8AC-8235W-00-00

Unavailable

23

GROMMET(3AA)

90480-12497-00

$2.60

24

FUSE HOLDER ASSY

8BE-82150-00-00

Unavailable

25

FUSE (10A)

42X-82151-00-00

Unavailable

26

RECTIFIER ASSY (RXKING,RXS)

3HB-H1970-01-00

Unavailable

27

BOLT, HEXAGON

97017-06020-00

Unavailable

28

WASHER(6TA)

92907-06600-00

Unavailable

29

STARTER RELAY ASSY (MS5D-231)

50W-81940-10-00

Unavailable

30

WASHER, SPRING

92907-06100-00

Unavailable

31

NUT(6TA)

95317-06600-00

Unavailable

32

WIRE, PLUS LEAD

3LD-82115-00-00

Unavailable

33

SEAT, BATTERY

84N-82122-00-00

Unavailable

34

PLATE, BATTERY FITTING

8AC-82136-10-00

Unavailable

35

SCREW, FITTING

8Y7-82133-00-00

Unavailable

36

WASHER(6TA)

92907-06600-00

Unavailable

37

NUT, NYLON

95707-06300-00

Unavailable

38

GROMMET

8AC-82355-00-00

Unavailable

39

BAND

341-26397-01-00

Unavailable

40

WIRE, SUB-LEAD

87L-82318-01-00

Unavailable

41

NEUTRAL SWITCH ASSY

4KD-82540-00-00

Unavailable
