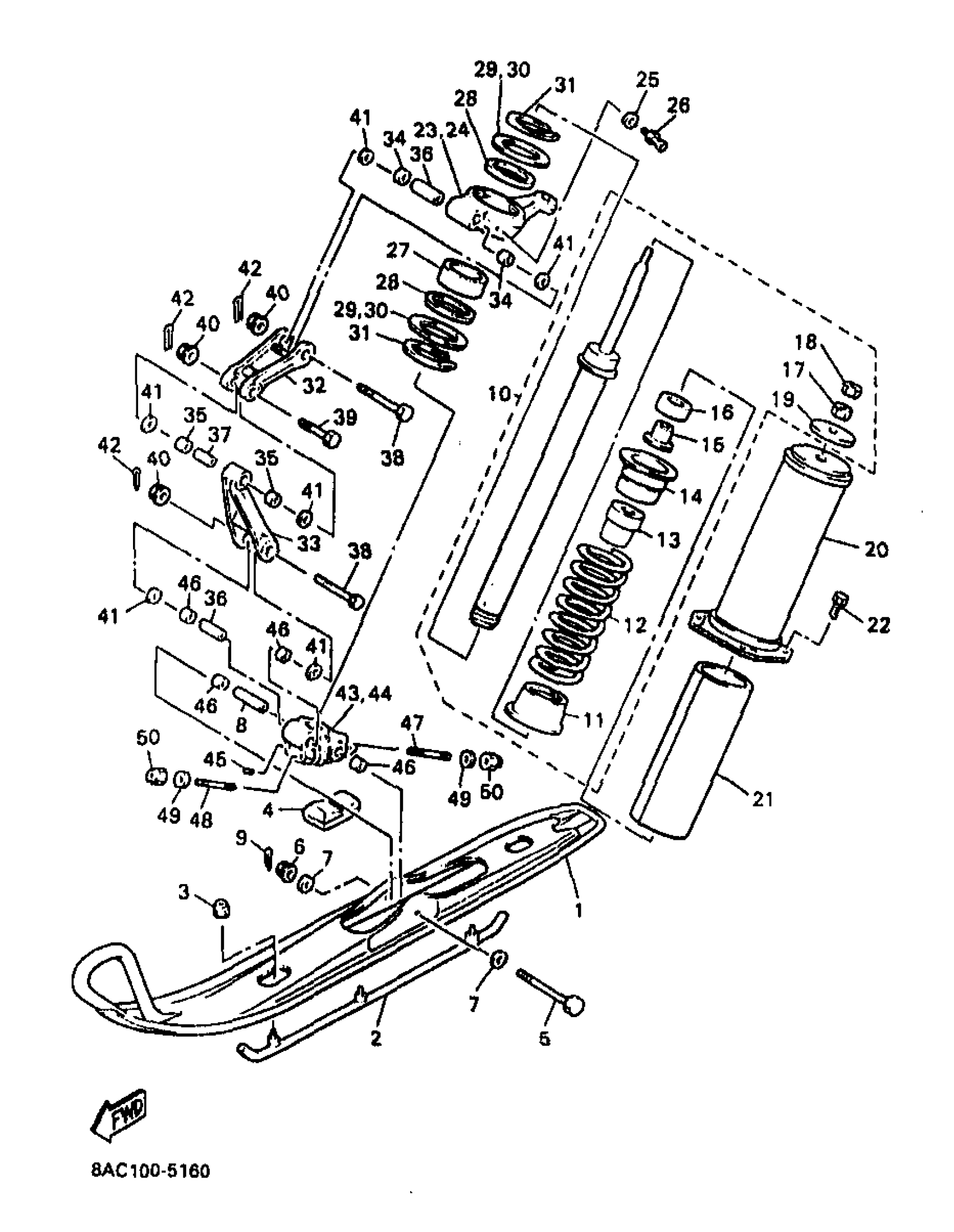

1998 Yamaha VK540 II (VK540EB) SKI Diagram
Find the part on the SKI diagram for your 1998 Yamaha VK540 II (VK540EB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
SKI COMP. 1
8AT-23710-00-00
—
Out of stock
2
RUNNER 1 (88T-23731-00-00)
88T-23731-00-XX
1
Out of stock
12
. SPRING, COMPRESSION
90501-750J2-00
1
Out of stock
14
PLATE, BACK UP
8AB-23788-00-00
1
Out of stock
17
. NUT
90170-08220-00
1
Out of stock
41
WASHER PLATE 626441260000
90202-14037-00
—
Out of stock
