2020 Kawasaki Versys®-X 300 Suspension/shock Absorber Diagram

← All diagrams

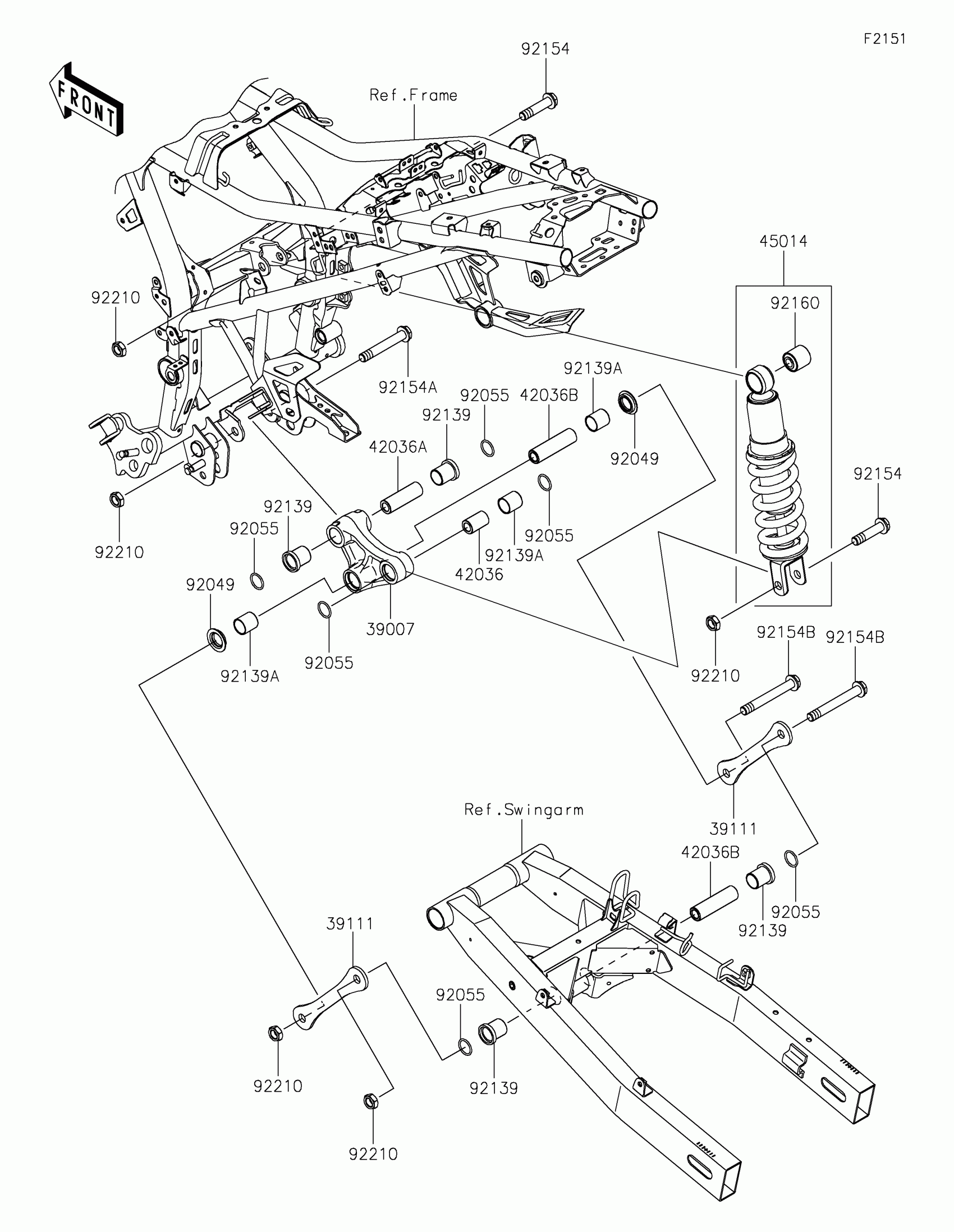

Find the part on the Suspension/shock Absorber diagram for your 2020 Kawasaki Versys®-X 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys®-X 300 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0407

1

$139.76

In stock

39111

ROD-TIE,SUSPENSION

39111-0349

1

$39.03

In stock

42036

SLEEVE,12.1X20X32

42036-1077

1

$15.76

In stock

42036A

SLEEVE,ARM,FR

42036-1078

1

$23.73

In stock

42036B

SLEEVE,12.1X20X74

42036-1102

1

$29.28

In stock

45014

SHOCKABSORBER,BLACK+BLK

45014-0580-37S

1

$718.18

In stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92055

RING-O,19.8X2.2

92055-0732

1

$1.10

In stock

92139

BUSHING,20X23X29

92139-0890

1

$7.27

In stock

92139A

BUSHING,20X23X24

92139-0940

1

$3.64

In stock

92154

BOLT,FLANGED,12X51

92154-2510

1

$7.56

In stock

92154A

BOLT,FLANGED,12X79

92154-2511

1

$10.36

In stock

92154B

BOLT,FLANGED,12X93

92154-2512

1

$11.54

In stock

92160

1

$31.51

In stock

92210

NUT,LOCK,12MM

92210-1247

1
Out of stock
