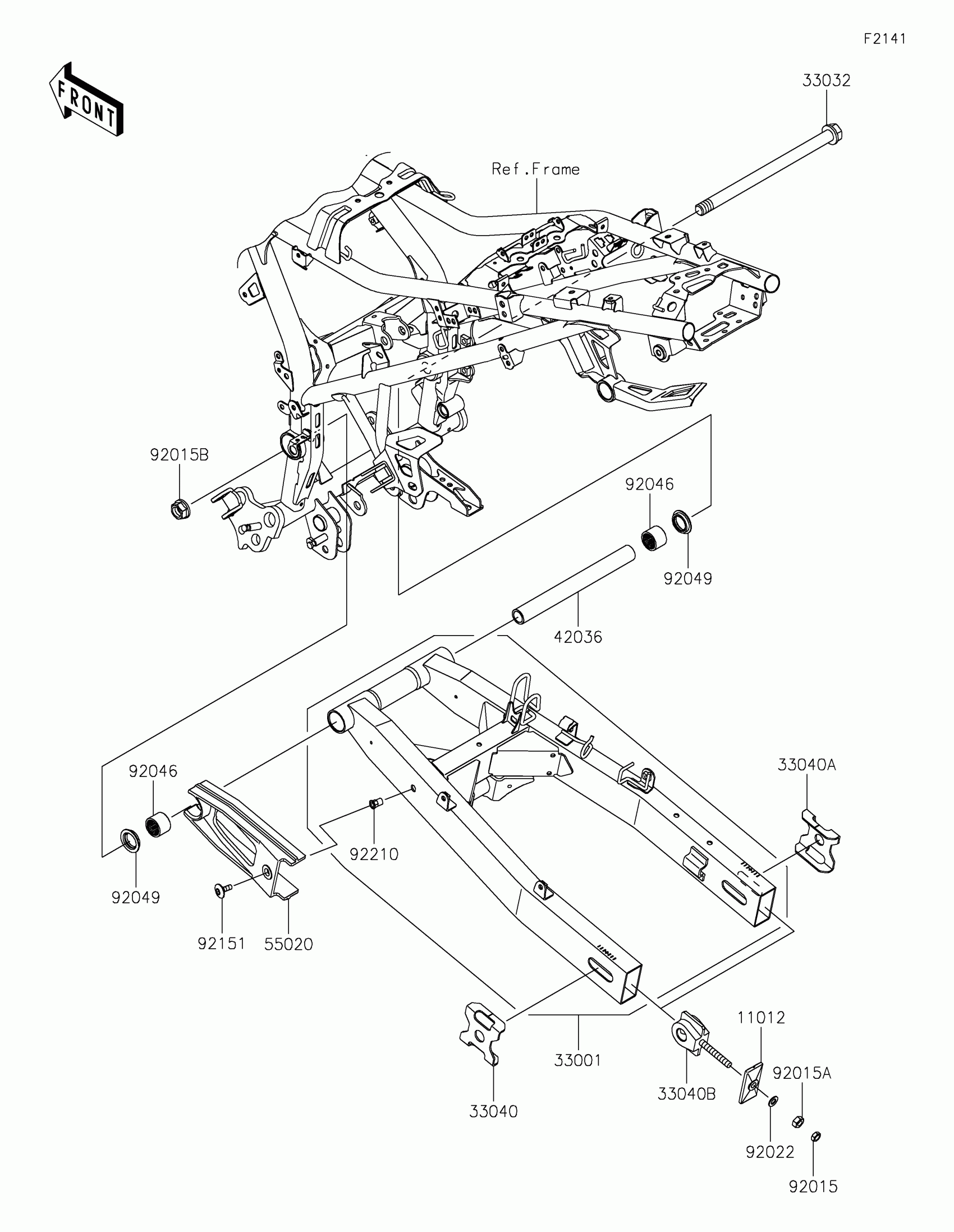

Kawasaki VERSYS®-X 300 Swingarm Diagram

Description

Price

11012

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

$22.05

33001

ARM-COMP-SWING,F.S.BLACK

33001-0684-18R

$466.75

33032

SHAFT-SWING ARM

33032-1134

$54.64

33040

ADJUSTER-CHAIN,OUTER,F.S.BLACK

33040-0030-18R

$21.39

33040A

ADJUSTER-CHAIN,OUTER,F.S.BLACK

33040-0088-18R

$21.58

33040B

ADJUSTER-CHAIN,INNER

33040-1116

$26.83

42036

SLEEVE,16.1X22X213.8

42036-0816

$47.74

55020

GUARD,CHAIN

55020-0317

$29.40

92015

NUT,8MM

92015-1364

$2.99

92015A

NUT,8MM

92015-1658

$3.71

92015B

NUT,FLANGED,16MM

92015-1946

$12.17

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92046

BEARING-NEEDLE,22X28X20

92046-0610

$19.61

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

$7.08

92151

BOLT,SOCKET,6X18

92151-1149

$5.86

92210

NUT,POP,6MM,L=15

92210-1397

$4.81
