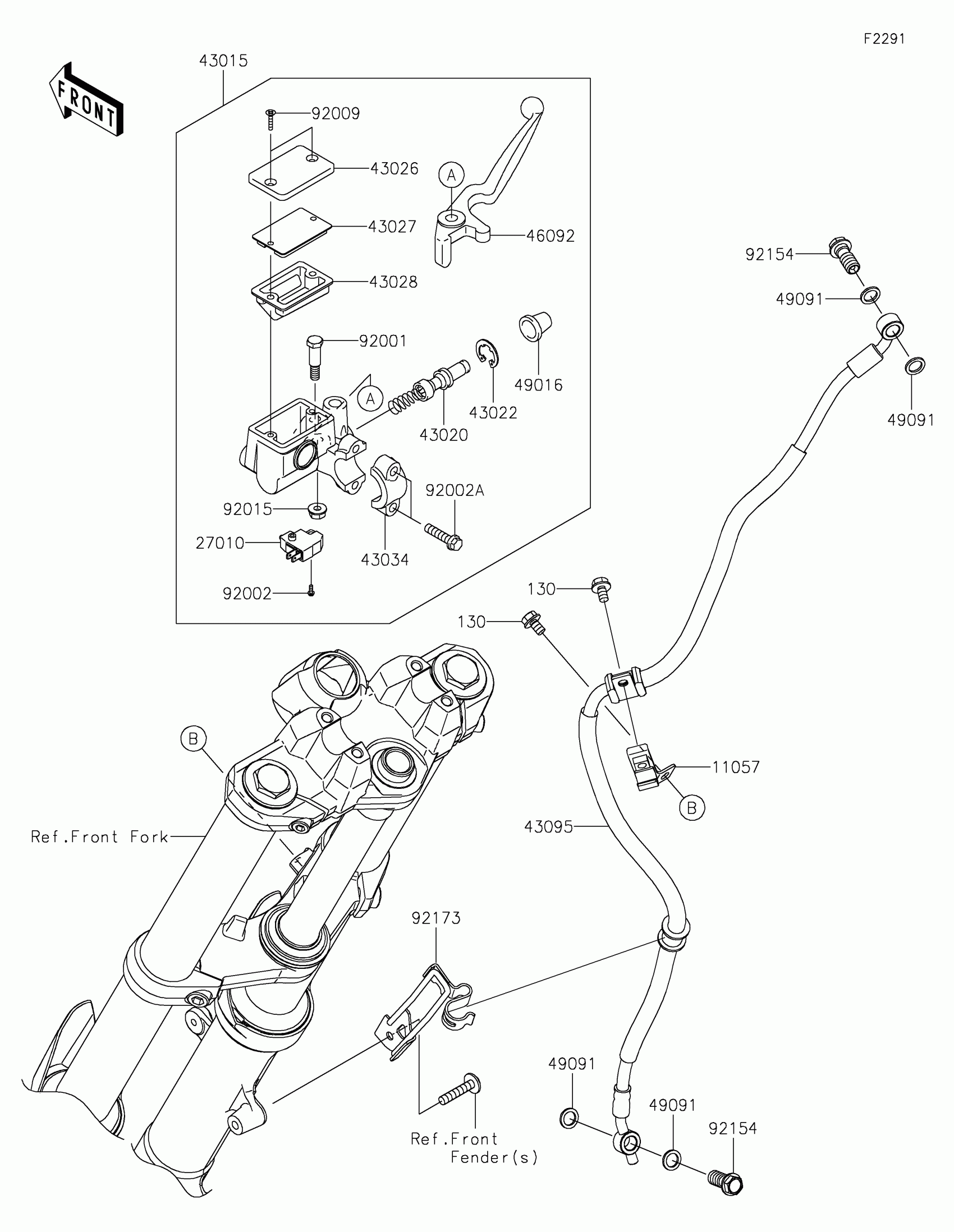

Kawasaki VERSYS®-X 300 Front Master Cylinder Diagram

Description

Price

11057

BRACKET

11057-0629

$3.29

130

BOLT-FLANGED,6X10

130BA0610

$0.97

27010

SWITCH,BRAKE

27010-0762

$31.35

43015

CYLINDER-ASSY-MASTER,FR

43015-0731

$115.50

43020

PISTON-COMP-BRAKE

43020-0022

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1082

$19.58

43027

PLATE-DIAPHRAGM

43027-1057

$3.69

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43095

HOSE-BRAKE,FR,916MM

43095-1445

$113.16

46092

LEVER-GRIP,FRONT BRAKE

46092-1203

$5.94

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92154

BOLT,BANJO,10X23

92154-2560

$3.56

92173

CLAMP,FORK OUTER TUBE

92173-1654

$5.14
