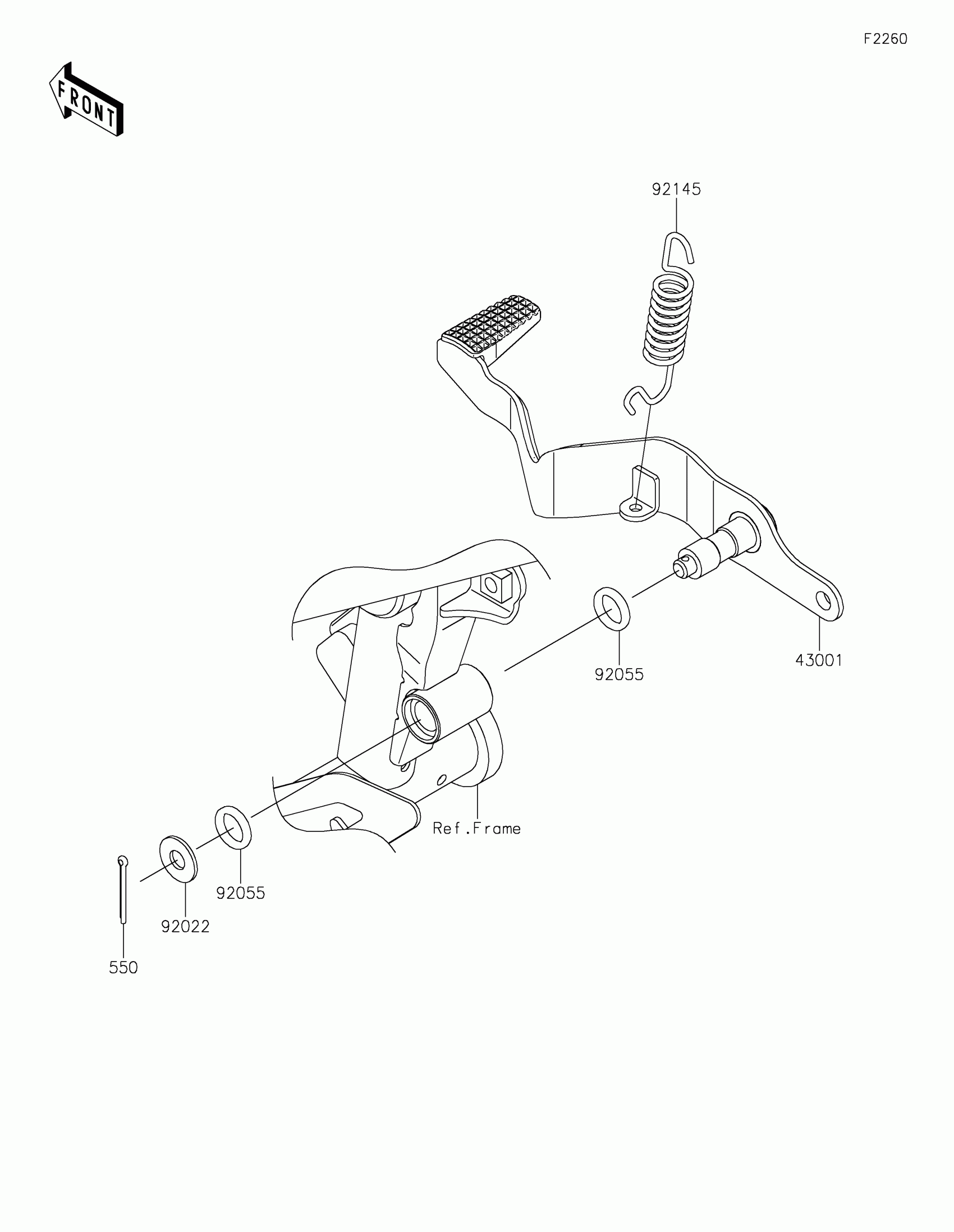

Kawasaki VERSYS®-X 300 Brake Pedal Diagram

#

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-0750

$70.83

550

PIN-COTTER,2.5X25

550AA2525

$1.05

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92055

RING-O,OD=18.5

92055-0168

$14.90

92145

SPRING,BRAKE PEDAL RETURN

92145-0230

$4.08
