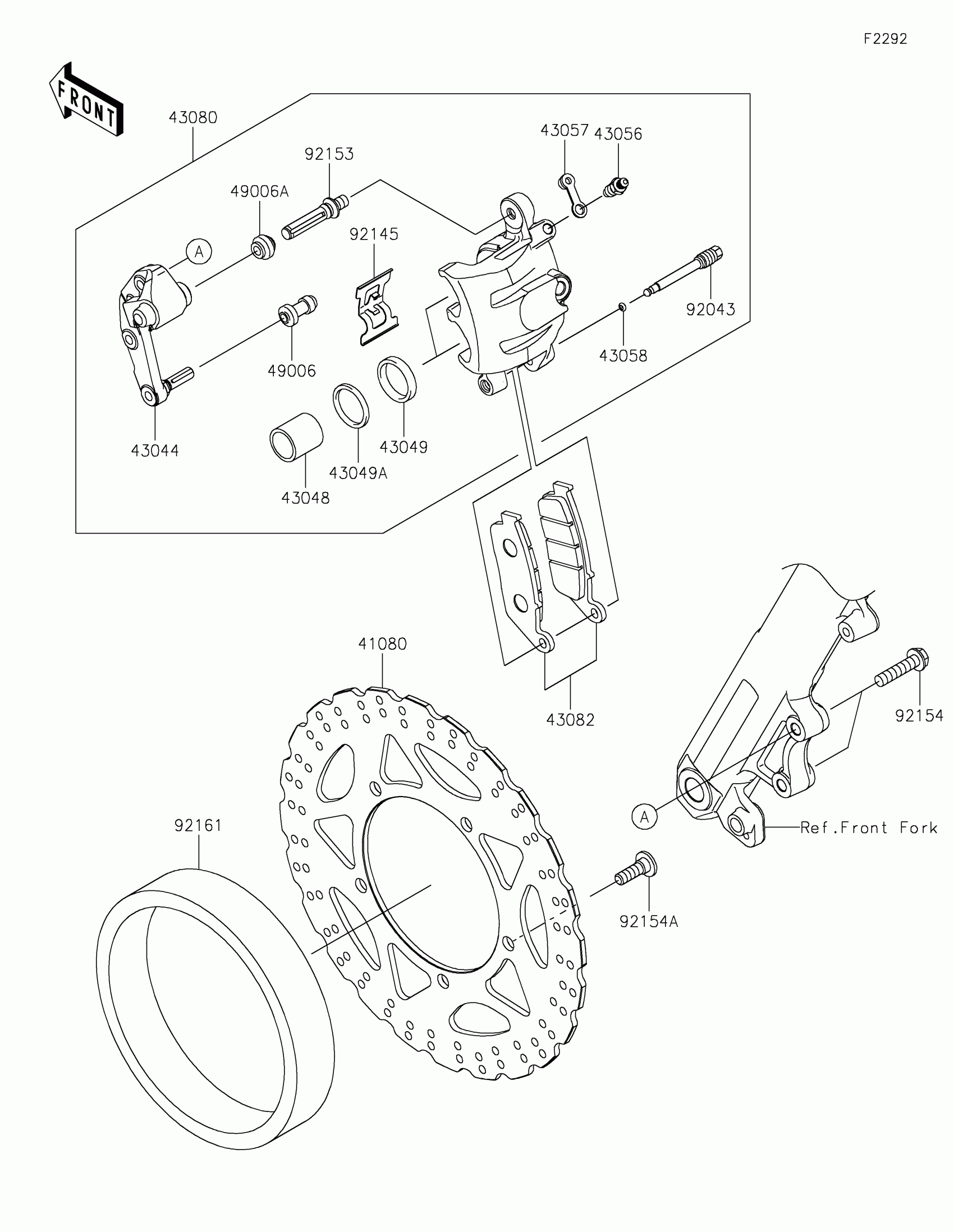

Kawasaki VERSYS®-X 300 Front Brake Diagram

Description

Price

41080

DISC,FR,BLACK

41080-0672-11H

$465.19

43044

HOLDER-COMP-CALIPER

43044-0083

$120.68

43048

PISTON-CALIPER

43048-0030

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43058

RING,STOPPER

43058-1100

$11.22

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0180-DJ

$393.37

43082

PAD-ASSY-BRAKE

43082-0173

$40.95

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN,HANGER

92043-0820

$7.24

92145

SPRING,PAD

92145-0524

$11.32

92153

BOLT

92153-1872

$12.95

92154

BOLT,FLANGED,8X35

92154-1646

$3.57

92154A

BOLT,SOCKET,8X26,MEC

92154-2534

$3.57

92161

DAMPER,168X192X36

92161-1925

$44.59
