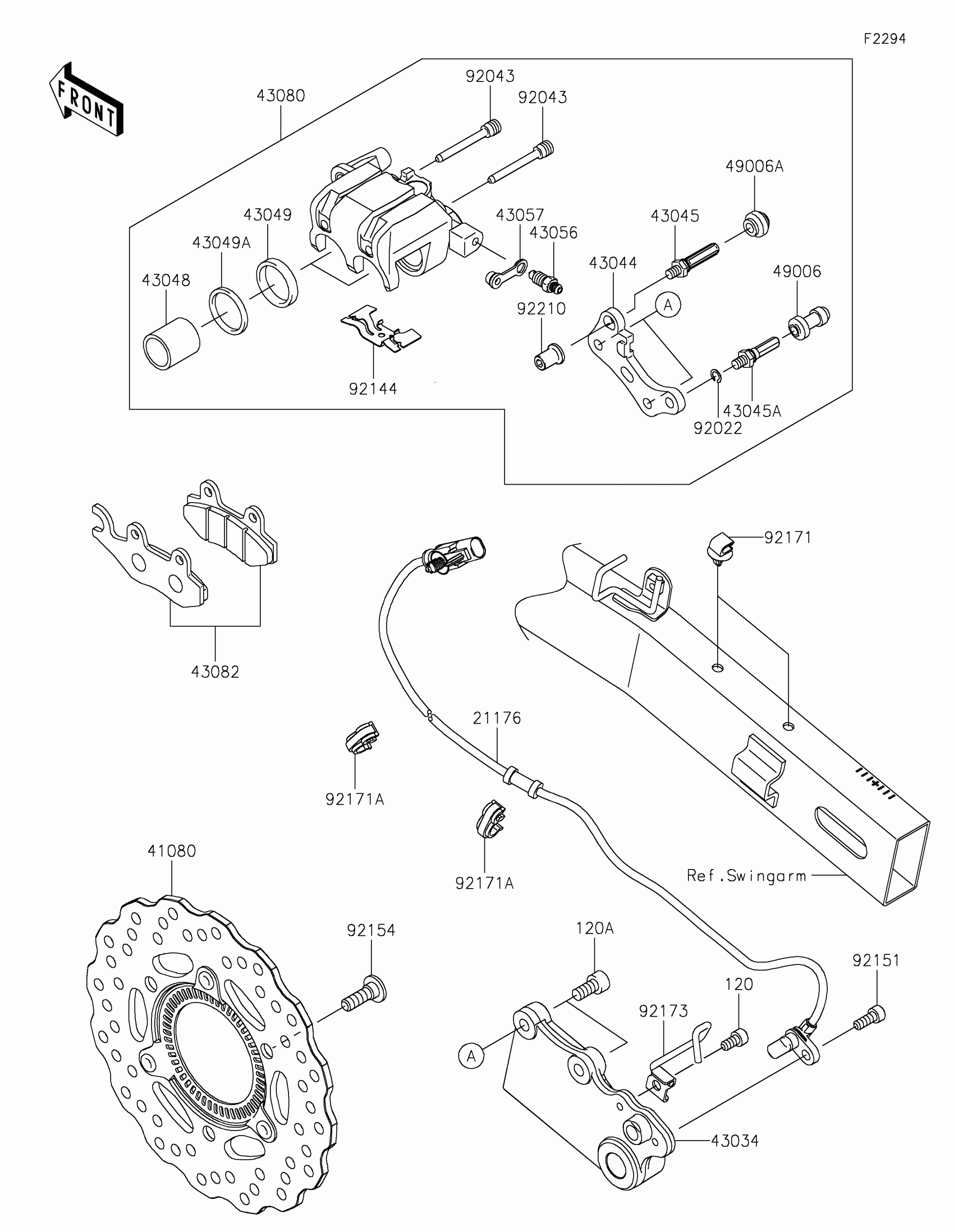

Kawasaki Versys-X 300 ABS Rear Brake Diagram

#

Description
Price

120

BOLT-SOCKET,6X12

120CA0612

$1.27

120A

BOLT-SOCKET,8X16

120CA0816

$3.39

21176

SENSOR,SPEED,RR

21176-0843

$142.67

41080

DISC,RR,W/R,BLACK

41080-0671-11H

$351.87

43034

HOLDER-BRAKE

43034-0135

$130.90

43044

HOLDER-COMP-CALIPER

43044-1112

$120.68

43045

SHAFT-CALIPER

43045-0004

Unavailable

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1066

$74.44

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0126-DJ

$393.37

43082

PAD-ASSY-BRAKE

43082-0172

$47.97

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92151

BOLT

92151-1166

$1.88

92154

BOLT,SOCKET,8X26,MEC

92154-2534

$3.57

92171

CLAMP

92171-0640

$3.51

92171A

CLAMP,BRAKE HOSE

92171-1819

$4.85

92173

CLAMP,BRAKE HOLDER

92173-1670

$4.51

92210

NUT

92210-0615

$5.46
