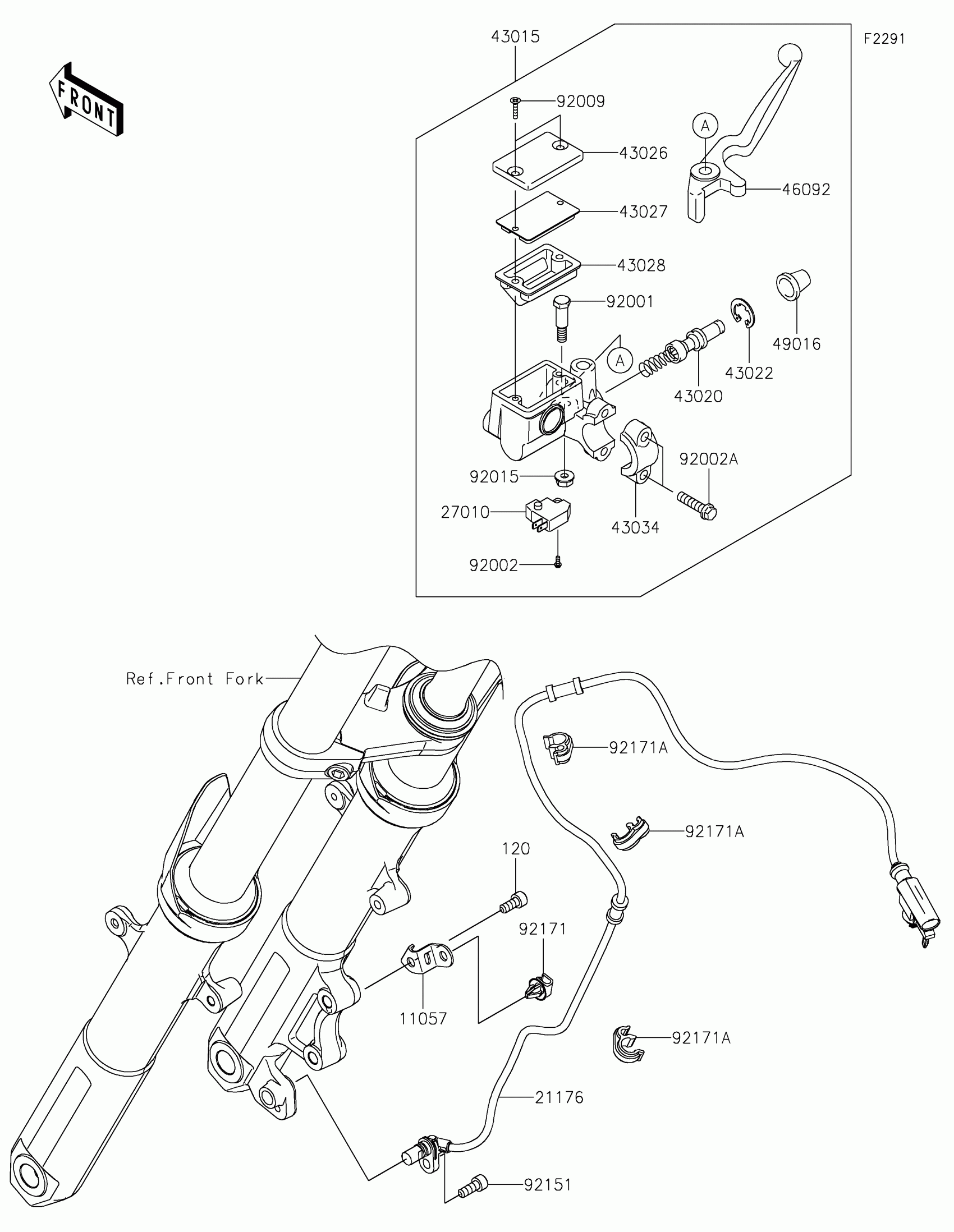

Kawasaki Versys-X 300 ABS Front Master Cylinder Diagram

Description

Price

11057

BRACKET,FORK OUTER TUBE,LWR

11057-0628

$2.20

120

BOLT-SOCKET,6X14

120CA0614

$3.68

21176

SENSOR,SPEED,FR

21176-0842

$142.67

27010

SWITCH,BRAKE

27010-0762

$31.35

43015

CYLINDER-ASSY-MASTER,FR

43015-0731

$115.50

43020

PISTON-COMP-BRAKE

43020-0022

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1082

$19.58

43027

PLATE-DIAPHRAGM

43027-1057

$3.69

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

46092

LEVER-GRIP,FRONT BRAKE

46092-1203

$5.94

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92151

BOLT

92151-1166

$1.88

92171

CLAMP

92171-0640

$3.51

92171A

CLAMP,BRAKE HOSE

92171-1819

$4.85
