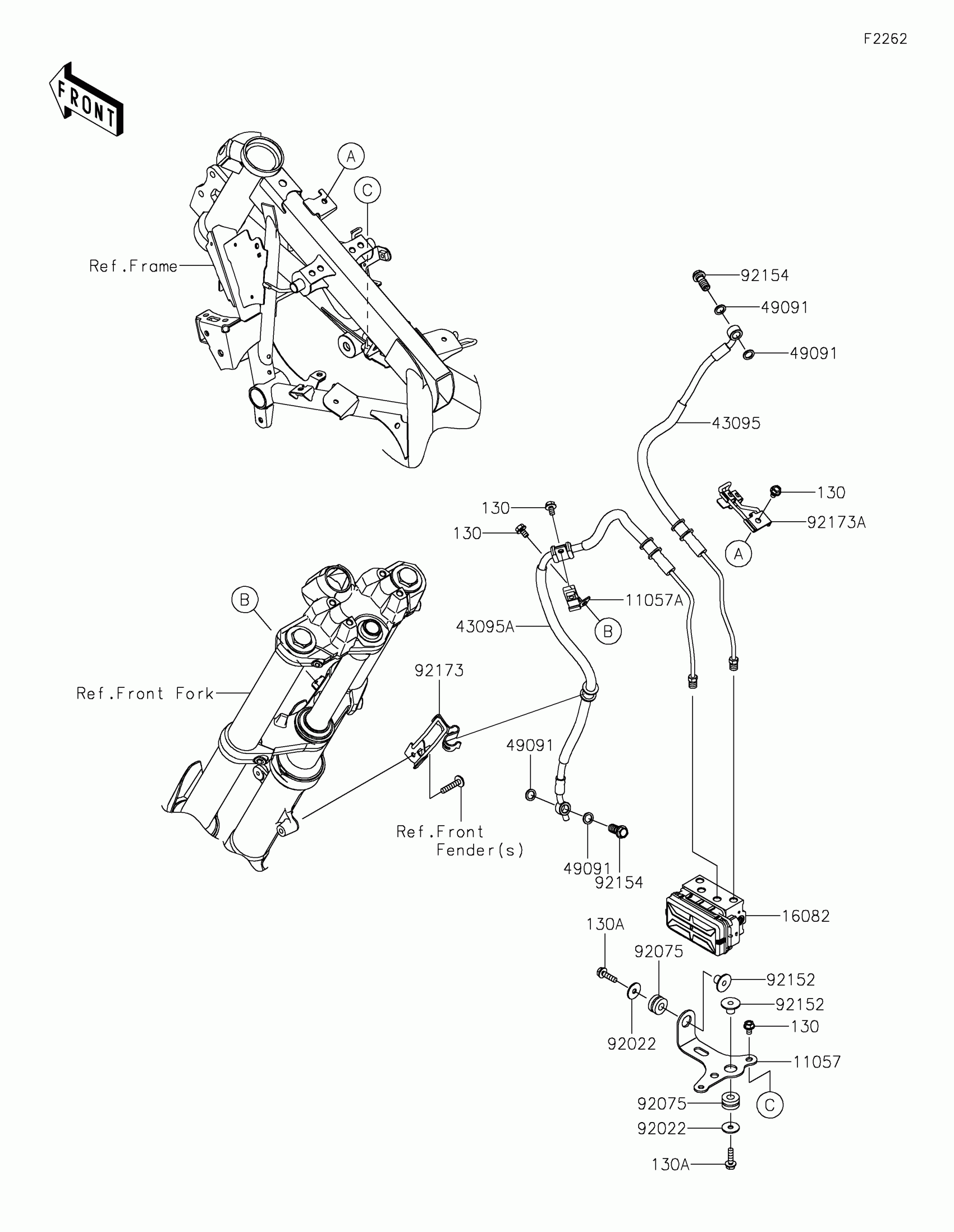

Find the part on the Brake Piping diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys-X 300 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-0627

1
Out of stock

11057A

BRACKET

11057-0629

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

16082

PUMP-ASSY-OIL,ABS10MB

16082-0779

1
Out of stock

43095

HOSE-BRAKE,FR M/CYL.-ABS UNIT

43095-1441

1
Out of stock

43095A

HOSE-BRAKE,ABS UNIT-FR CAL.

43095-1442

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92154

BOLT,BANJO,10X23

92154-2560

1
Out of stock

92173

CLAMP,FORK OUTER TUBE

92173-1654

1
Out of stock

92173A

CLAMP,FRM HEAD PIPE

92173-1655

1
Out of stock
