2020 Kawasaki Versys-X 300 ABS Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

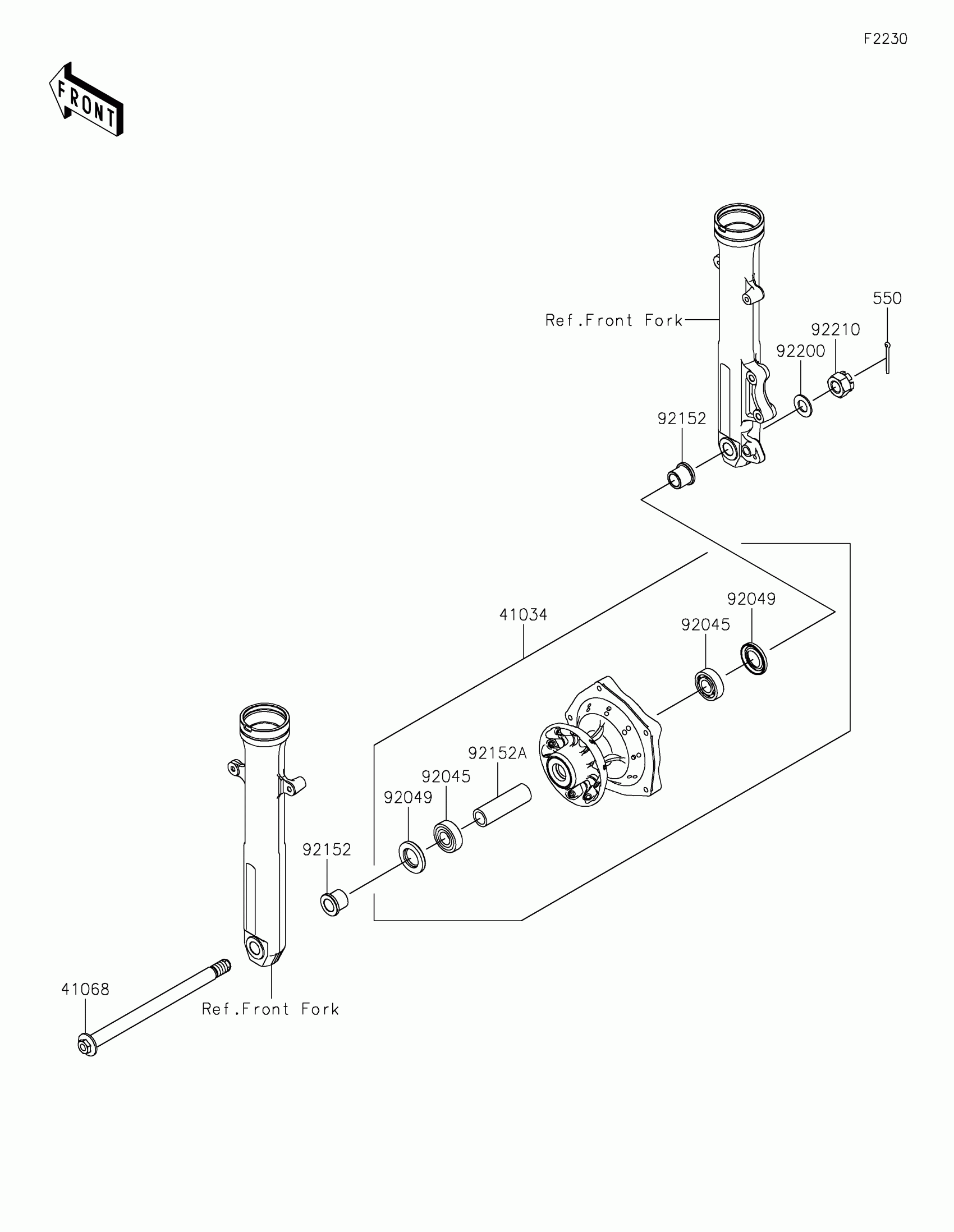

2020 Kawasaki Versys-X 300 ABS Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

1

$401.45

In stock

41068

AXLE,FR,17X249

41068-0623

1

$77.00

In stock

550

PIN-COTTER,4.0X35

550AA4035

1

$1.81

In stock

92045

1

$14.47

In stock

92049

SEAL-OIL

92049-0794

1
Out of stock

92152

COLLAR,17X24X23

92152-2290

1
Out of stock

92152A

COLLAR

92152-2291

1
Out of stock

92200

WASHER,16.2X30X2.0

92200-1842

1
Out of stock

92210

NUT,CASTLE,16MM

92210-1171

1
Out of stock
