2020 Kawasaki Versys-X 300 ABS Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

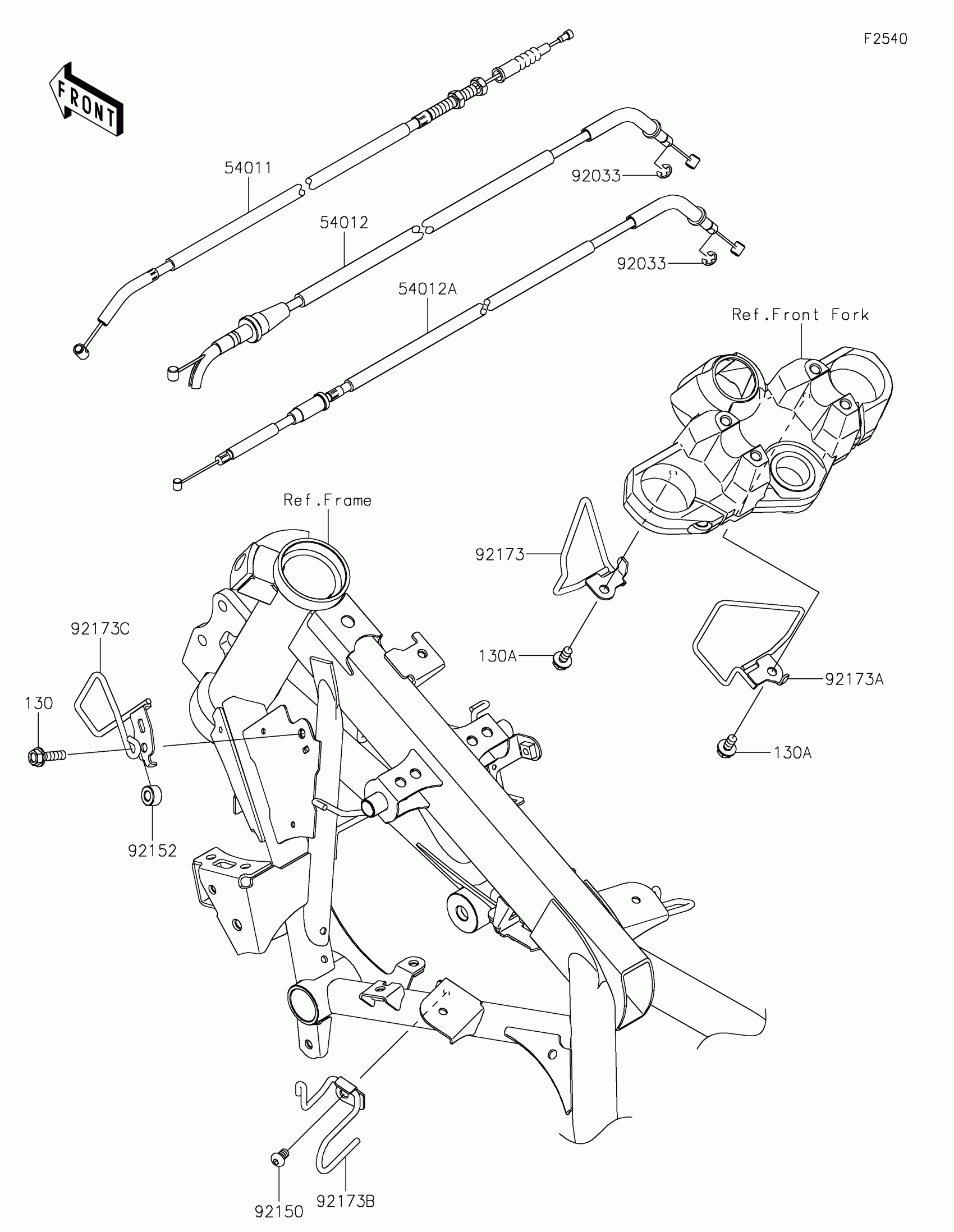

2020 Kawasaki Versys-X 300 ABS Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

54011

CABLE-CLUTCH

54011-0622

1

$38.09

In stock

54012

1

$39.75

In stock

54012A

1

$39.75

In stock

92033

RING-SNAP

92033-0787

1

$0.47

In stock

92150

BOLT,6X10

92150-1577

1

$3.17

In stock

92152

COLLAR,6.5X14X8

92152-2352

1
Out of stock

92173

CLAMP,UPP HOLDER,LH

92173-1629

1

$3.51

In stock

92173A

CLAMP,UPP HOLDER,RH

92173-1630

1

$3.51

In stock

92173B

1

$4.51

In stock

92173C

CLAMP,CLUTCH CABLE

92173-1813

1

$5.14

In stock
← Rear Master Cylinder Front Fork →

More Suspension & Wheels diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
