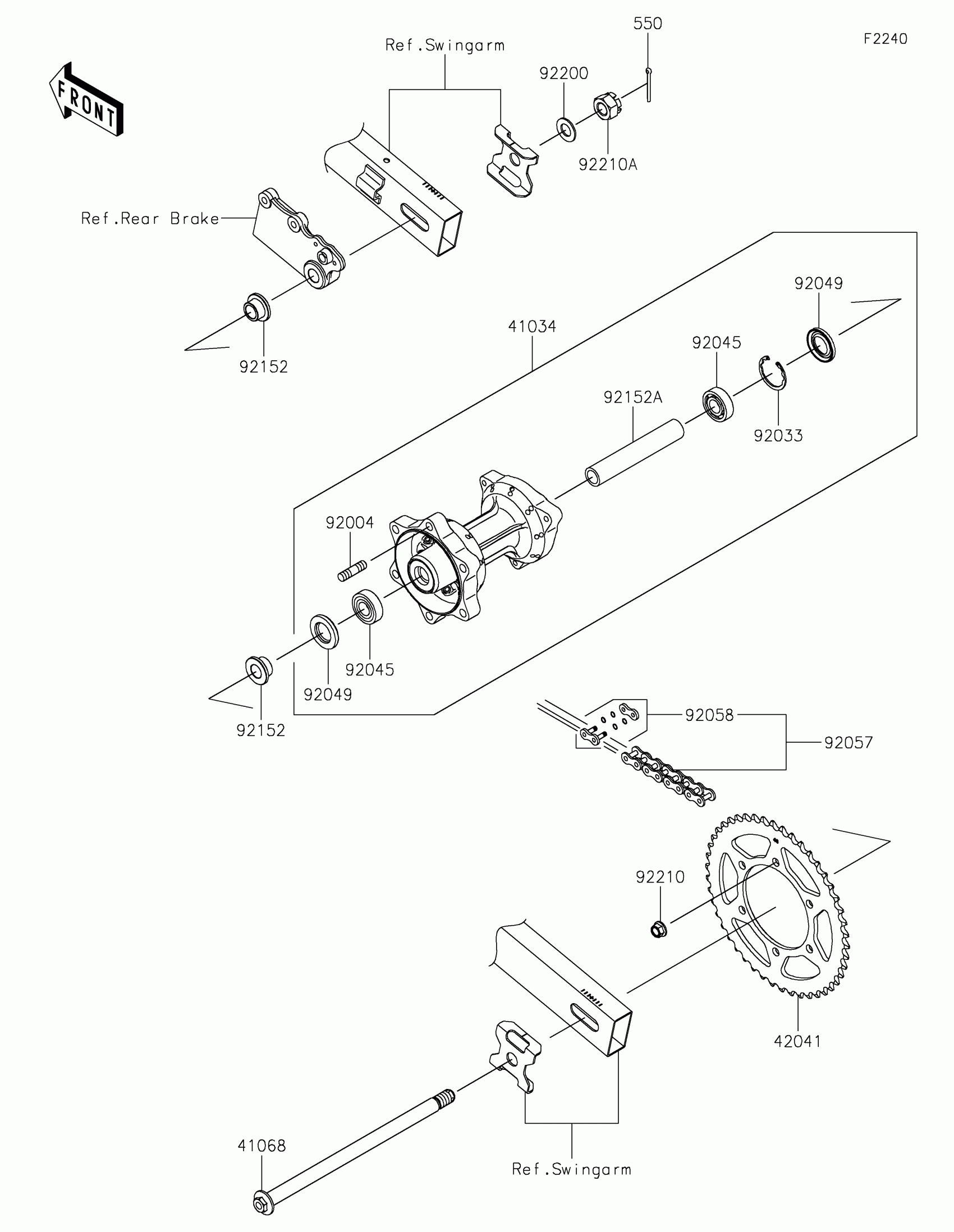

Kawasaki Versys-X 300 ABS Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR BRAKE,P.SILVER

41034-0588-458

$483.13

41068

AXLE,RR,17X312

41068-0624

$77.00

42041

SPROCKET-HUB,46T

42041-0120

$86.66

550

PIN-COTTER,4.0X35

550AA4035

$1.57

92004

STUD,10X19

92004-0048

$6.48

92033

RING-SNAP,40MM

92033-1040

$4.45

92045

BEARING-BALL,17X40X12

92045-0732

$14.47

92049

SEAL-OIL

92049-0794

$10.47

92057

CHAIN,DRIVE,EK520RM/3DX112L

92057-0647

$223.38

92058

JOINT-CHAIN

92058-0037

$14.64

92152

COLLAR,17X24X16

92152-2292

$13.17

92152A

COLLAR,17.1X24X141

92152-2317

$21.80

92200

WASHER,16.2X30X2.0

92200-1842

$1.27

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,CASTLE,16MM

92210-1171

$11.17
