2010 Kawasaki Versys® Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

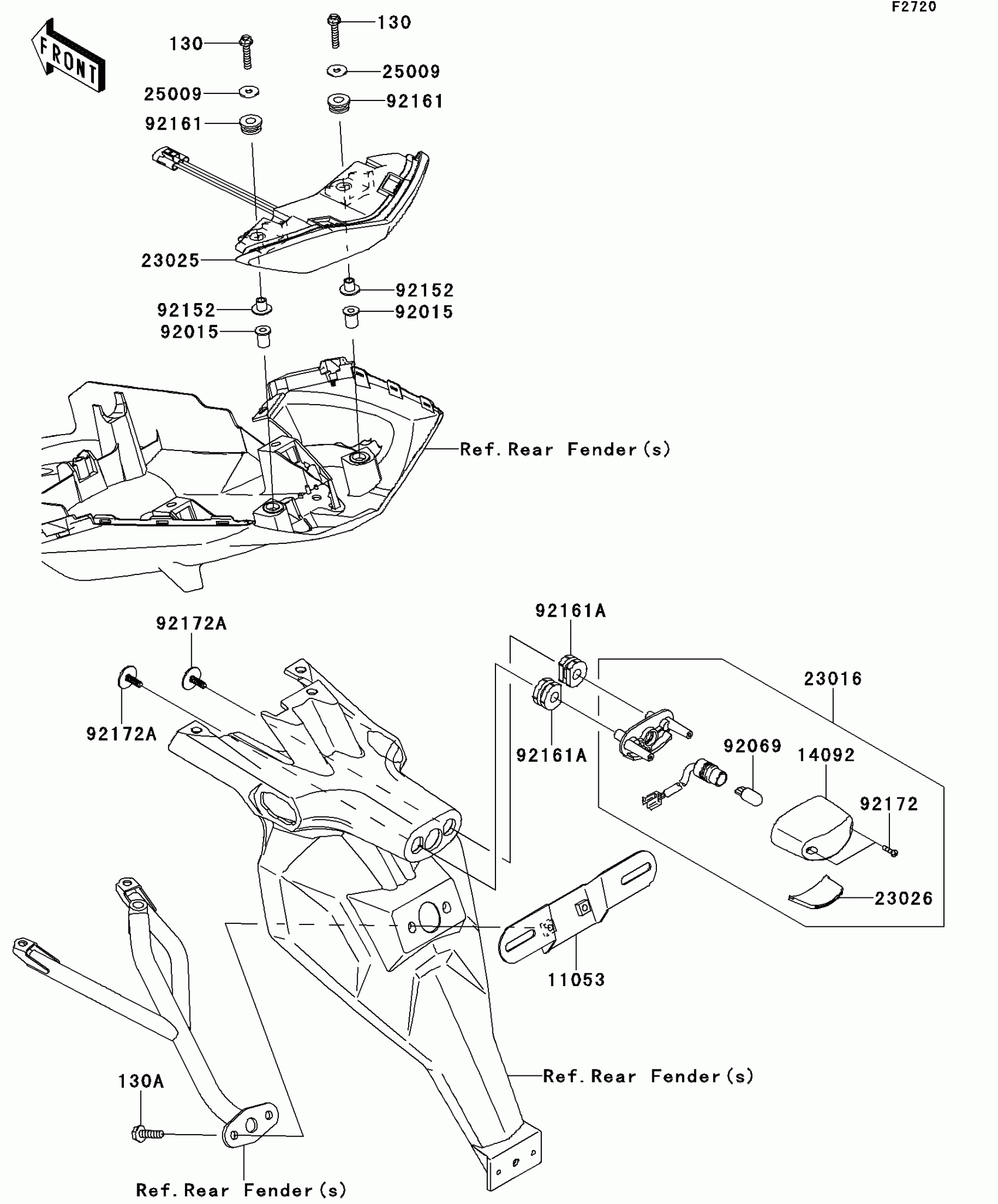

2010 Kawasaki Versys® Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,LICENSE

11053-0400

1

$13.08

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENSE

23016-0043

1
Out of stock

23025

LAMP-TAIL

23025-0068

1
Out of stock

23026

LENS,LICENSE LAMP

23026-0015

1

$29.34

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92152

COLLAR

92152-0092

1

$5.24

In stock

92161

DAMPER

92161-0317

1

$2.71

In stock

92161A

DAMPER

92161-0776

1

$4.39

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPTITE,5X16

92172-0481

1

$2.58

In stock

130

BOLT-FLANGED,5X25

130BA0525

1

$0.66

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
