2010 Kawasaki Versys® Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

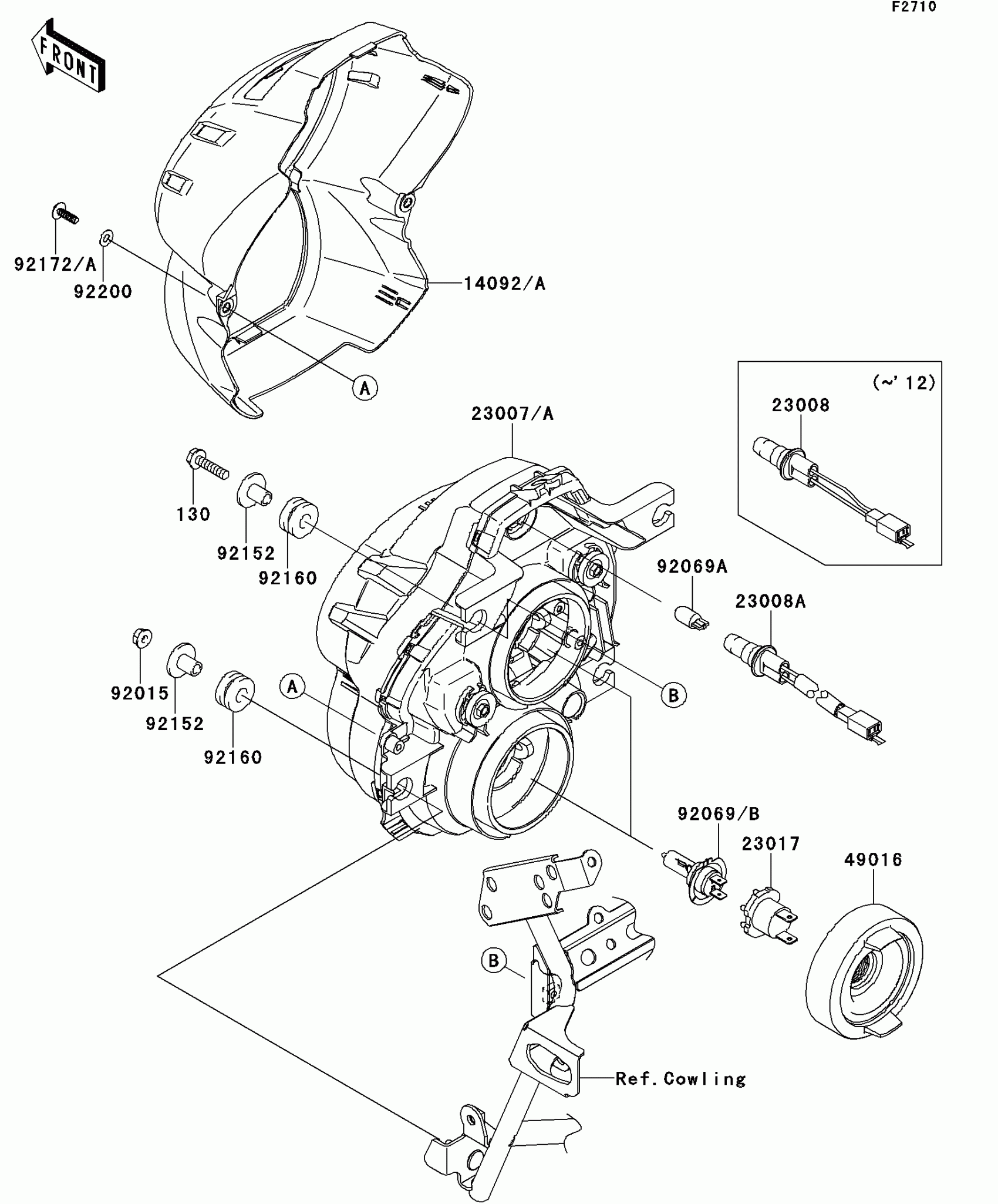

2010 Kawasaki Versys® Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,HEAD LAMP,M.SILVER

14092-0073-27E

1

$134.70

In stock

23007

LENS-COMP,HEAD LAMP

23007-0149

1
Out of stock

23008

1

$26.34

In stock

23017

SOCKET,HEAD LAMP

23017-0003

1

$14.93

In stock

49016

1

$18.37

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92069A

BULB,12V 55W,H7

92069-1126

1
Out of stock

92152

COLLAR

92152-0048

1

$2.29

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92172

SCREW,TAPPING,5X16

92172-0175

1

$1.53

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
