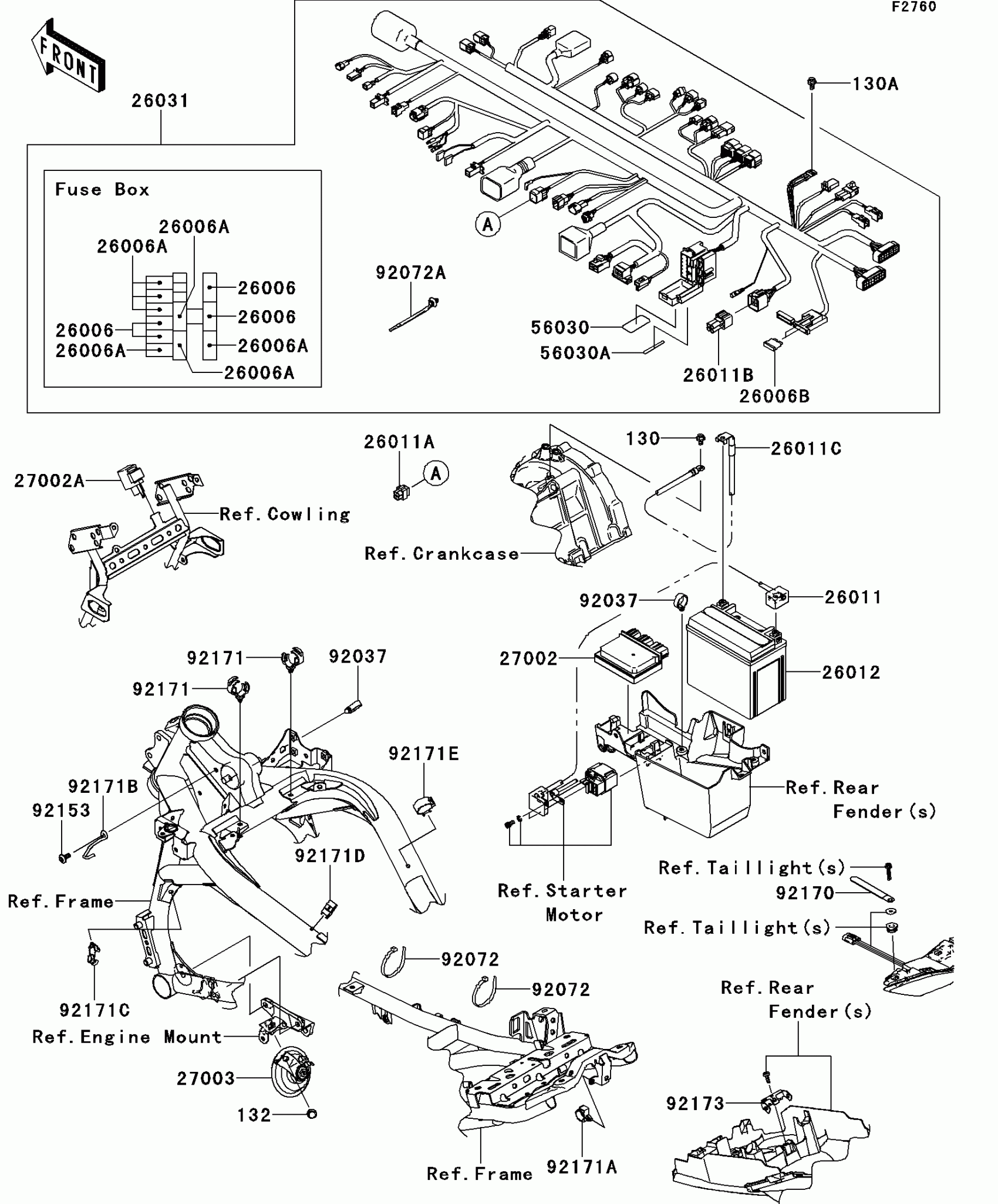

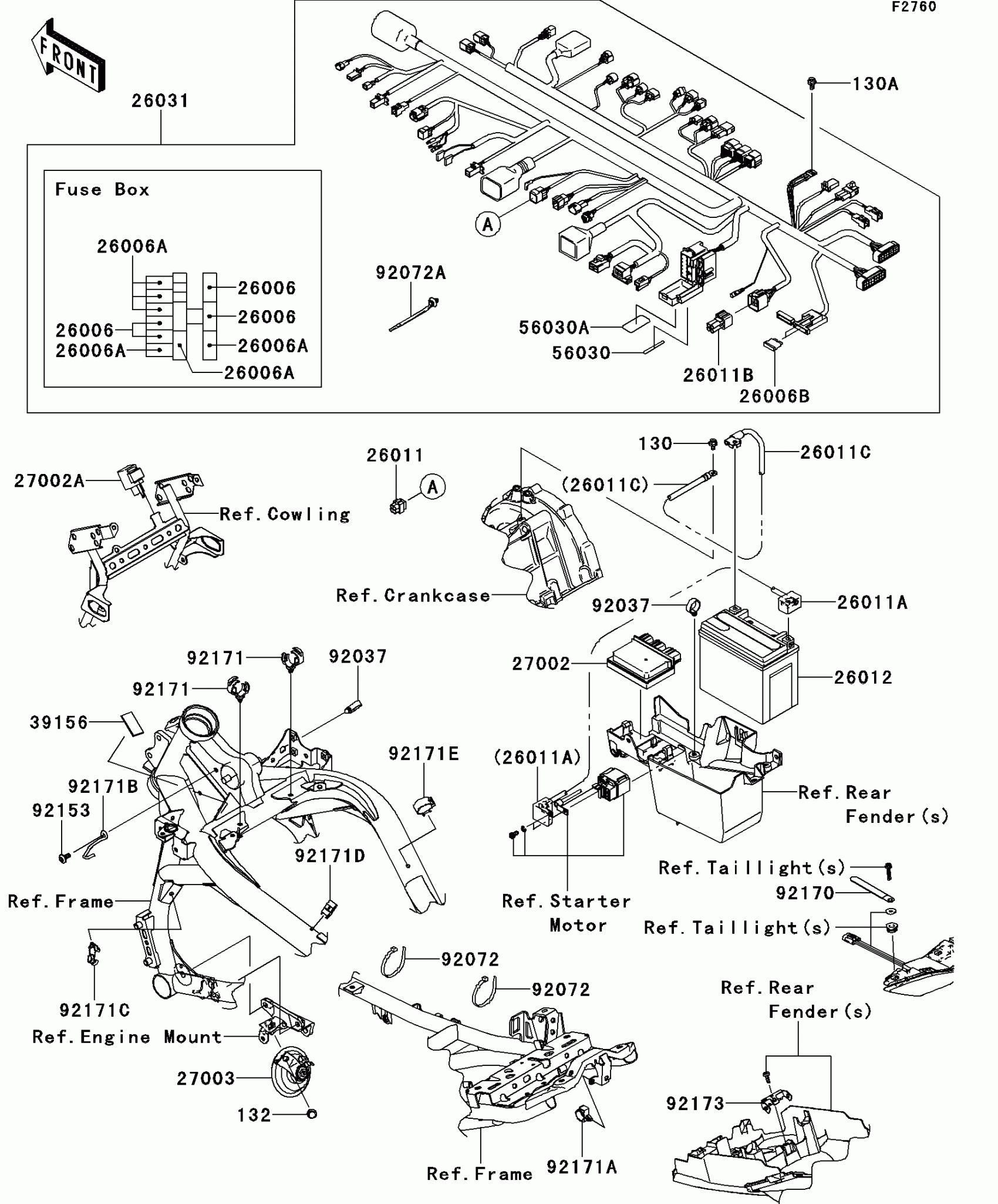

Find the part on the Chassis Electrical Equipment diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26006

1

$5.34

In stock

26006A

1

$3.50

In stock

26006B

FUSE,BLADE,5A,TAN

26006-1082

1

$5.17

In stock

26011

1

$39.65

In stock

26011A

1

$14.53

In stock

26011B

WIRE-LEAD,CAP

26011-0271

1

$13.98

In stock

26011C

1

$30.39

In stock

26012

BATTERY,YTX12-BS,12V 10AH

26012-0094

1
Out of stock

26031

HARNESS,MAIN

26031-0819

1

$797.07

In stock

27002

RELAY-ASSY

27002-0007

1
Out of stock

27002A

1

$48.33

In stock

27003

HORN

27003-0051

1
Out of stock

56030

LABEL,FUSE BOX

56030-0346

1

$7.54

In stock

56030A

LABEL,FUSE BOX

56030-0360

1

$3.95

In stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92072

BAND,L=365

92072-1197

1

$7.71

In stock

92072A

1

$2.97

In stock

92153

BOLT,SOCKET,6X14

92153-1446

1
Out of stock

92170

CLAMP

92170-1925

1

$1.98

In stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92171A

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171B

CLAMP,HARNESS

92171-0657

1

$7.95

In stock

92171C

CLAMP,13MM DIA.

92171-1415

1

$1.69

In stock

92171D

CLAMP,DIA=15

92171-1424

1

$3.33

In stock

92171E

CLAMP,25MM DIA.

92171-1559

1

$5.39

In stock

92173

CLAMP,FUSE BOX

92173-0218

1

$12.56

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$1.54

In stock
